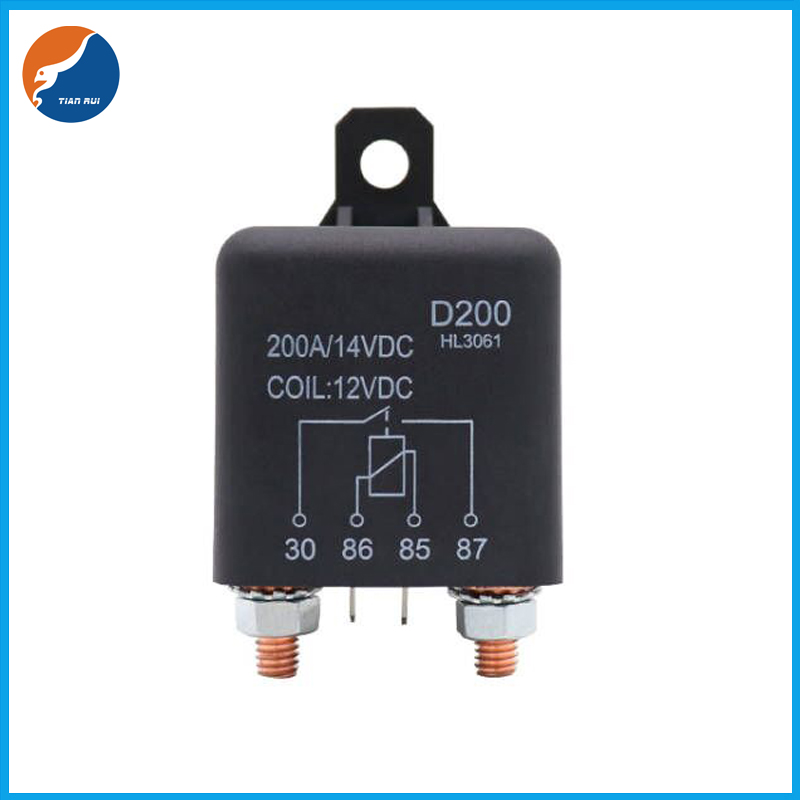

Automotive Relays 24V Car Start Relay Slot Holder

Ask Lasest Price
Brand Name :	TIAN RUI
Model Number :	D200
Certification :	ROHS
Price :	Negotiable
Payment Terms :	T/T, Paypal, Mastercard, Wetern Union, Alipay, etc
Supply Ability :	1000000PCS per Month
Delivery Time :	5-7 work days

Add to Cart

Product Details
Company Profile

Automotive Relays 24V Car Start Relay Slot Holder

200A High Current Automotive Relay 12V 24V Preheating Relay Car Starter Relays

Coil Ratings of 200A High Current Automotive Relay 12V 24V Preheating Relay Car Starter Relays

Specification	Coil Volt. (VDC)		Coil Resistance (Q±10%)	Pickup Vol. VDC (max.)	Release Vol. VDC (min.)	Coil Power	Operate Time	Release Time
	Rated	Max.
12V 2.4W	12	15.6	60	7.8	1.2	2.4W	≤10ms	≤5ms
24V 2.4W	24	31.2	240	15.6	2.4	2.4W
12V 4.8W	12	15.6	30	7.8	1.2	4.8W	≤10ms	≤5ms
24V 4.8W	24	31.2	120	15.6	2.4	4.8W

Features of 200A High Current Automotive Relay 12V 24V Preheating Relay Car Starter Relays

▪ 200A large current
▪ Designed for large equipment and machines

Operation Condition of 200A High Current Automotive Relay 12V 24V Preheating Relay Car Starter Relays

Insulation

100MΩ min (at 500VDC)

Item 7 of IEC 60255-5

Dielectric
Strength

Between contacts

50Hz 500V

Item 6 of IEC 60255-5

Between coil and contacts

50Hz 500V

Item 6 of IEC 60255-5

Shock Resistance

147m/s²

IEC 68-2-27 Test Ea

Vibration Resistance

10-40Hz double amplitude 1.5mm

IEC 68-2-6 Test Fc

Terminals Strength

20N

IEC 68-2-21 Test Ua1

Solderability

235℃±2℃ 3±0.5s

IEC 68-2-20 Test Ta method 1

Ambient Temperature

-40℃--85℃

Relative Humidity

85% (at 40℃)

IEC 68-2-3 Test Ca

Mass

111g

Contact Rating of 200A High Current Automotive Relay 12V 24V Preheating Relay Car Starter Relays

Contact form

1H(SPSTNO)

Contact material

AgSnO2

Contact rating(resistive)

200A/14VDC

Max. Switching Voltage

40VDC

Max. Switching Current

200A

Max. Switching Power

1680

Contact Resistance

≤30mΩ Item 4.12 of IEC 61810-7

Electrical Endurance

1*105 Item 4.30 of TEC 61810-7

Mechanical Endurance

1*107 Item 4.31 of TEC 61810-7

Drawing of 200A High Current Automotive Relay 12V 24V Preheating Relay Car Starter Relays

Details of 200A High Current Automotive Relay 12V 24V Preheating Relay Car Starter Relays

Contact Details:

Andy Wu

Email: andy@tianrui-fuse.com.cn

MP/Whatsapp: +86 13532772961

Wechat: HFeng0805

Skype: andywutechrich

QQ: 969828363
