IP66 Waterproof LED Indicator Panel Mount Fuse Holder 6.35x31.8mm 6.35x30mm 20A 32VDC

Panel mount fuse holder have a cylindrical body that houses fuses and fits into electrical control panels and enclosures. They have a top opening to accept the fuse and a terminal end that connects to a circuit and mounts into a panel. These holders keep fuses enclosed to prevent accidental contact with live clips.

Specification

Type of fuse accessories:fuse holder
Fuses application:tube fuses
Fuse size: 6.3x30mm, 6.3x32mm
Maximum current: 20A
Mounting: on panel
Colour: black
Rated voltage: 32V DC
Mounting hole diameter: 16mm
Leads: connectors 6.3mm
Contact plating: silver plated
Operating temperature: 0 to 65°C
IP rating:IP66
Contact resistance:100MΩ
Features:LED indicator that signals if the fuse blows out

Features

•The durable bakelite shell material is not easy to corrode
•The metal clip has strong electrical conductivity and has an overload fuse protection function
•Panel installation is simple and convenient to strictly follow safety standards

•LED indicator that signals if the fuse blows out

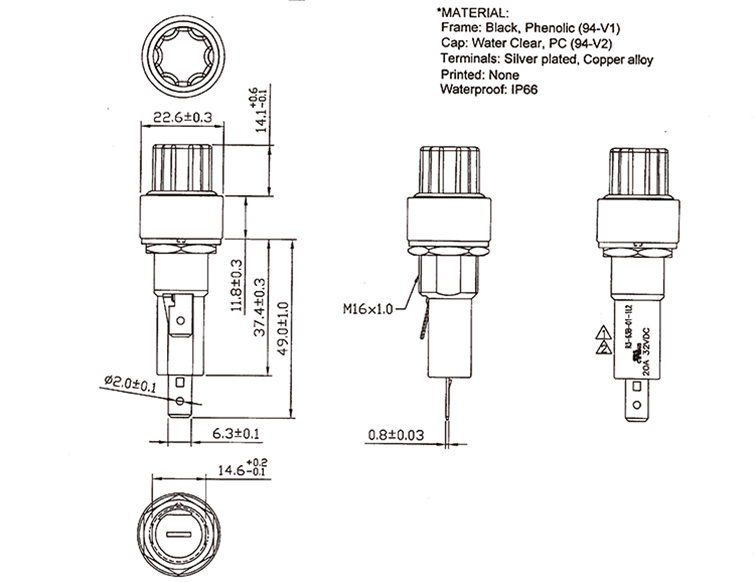

Drawing
