3998XXX.ZXM10 M8 M10 ZCASE Bolt Down Single Material Handling MEGA Starter Fuse 80V DC

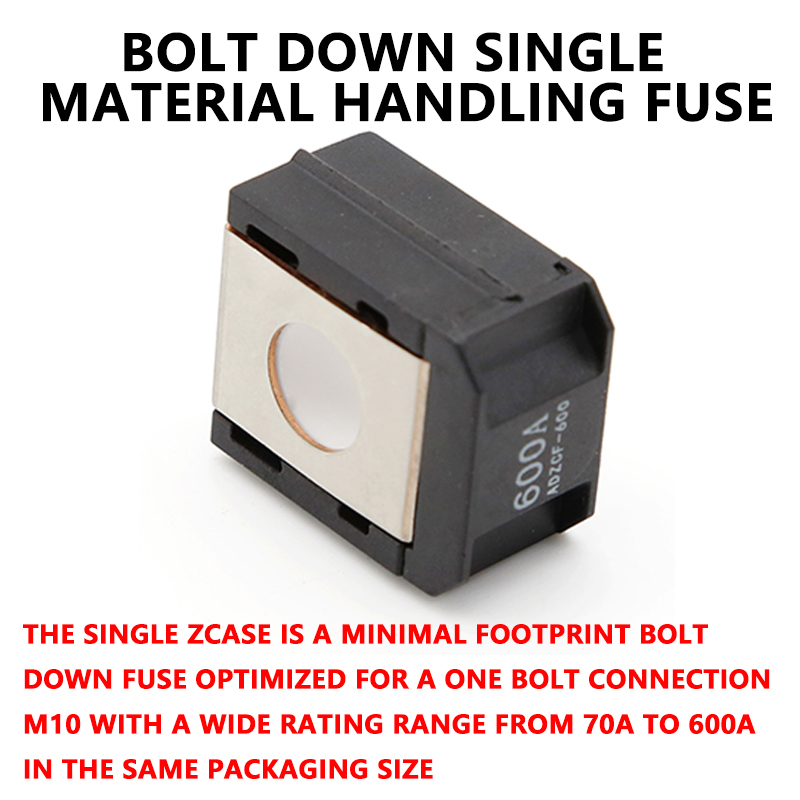

The Single ZCASE is a Minimal Footprint Bolt Down Fuse optimized for a one bolt connection M10 with a wide rating range from 70A to 600A in the same packaging size. The Time Current characteristic is similar to the well known MEGA Design and can be used as full wire protection until 250A. Higher ratings fuses are mostly used in trucks, buses, agriculture and construction equipment’s or Material handling for typically Starter application as a protector fuse.

Specification of 3998XXX.ZXM10 M8 M10 ZCASE Bolt Down Single Material Handling MEGA Starter Fuse 80V DC

Alternative fuse of Littelfuse 3998XXX.ZXM10 ZCASE Single MEGA Starter Fuse
Used typically for Starter Fuse applications as a protector fuse
Optimized for a one bolt connection and can be used directly on a battery post or BusBar connection
600A
Operating temperature: 257°F (125°C) to -40°F (-40°C)
Minimal footprint
Fuse design is optimized for a one bolt connection
Can be used directly as a battery post or busbar connection
Requires insulating bolt
Tin plated copper
Voltage Rating: 80VDC
Mounting Stud: M8/M10
Interrupting Rating: 2000A @ 80VDC

Ratings of 3998XXX.ZXM10 M8 M10 ZCASE Bolt Down Single Material Handling MEGA Starter Fuse 80V DC

Features of 3998XXX.ZXM10 M8 M10 ZCASE Bolt Down Single Material Handling MEGA Starter Fuse 80V DC

One-bolt connection

Can mount on a battery post, starter, or busbar

High-contrast ampere rating stamp aids identification

SHUNT version available

Compact design

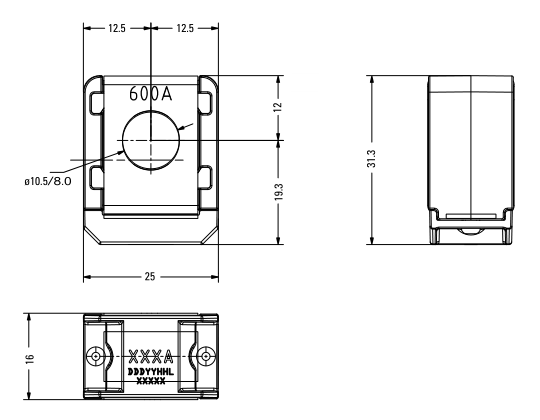

Dimensions of 3998XXX.ZXM10 M8 M10 ZCASE Bolt Down Single Material Handling MEGA Starter Fuse 80V DC
Dimensions in mm for reference only.
See outline drawing for dimensions and tolerances.

Time-Current Characteristics of 3998XXX.ZXM10 M8 M10 ZCASE Bolt Down Single Material Handling MEGA Starter Fuse 80V DC

Application of 3998XXX.ZXM10 M8 M10 ZCASE Bolt Down Single Material Handling MEGA Starter Fuse 80V DC

Commercial vehicles

Buses

Construction equipment

Material handling equipment

Agricultural machinery

Not suitable for passenger
car applications
