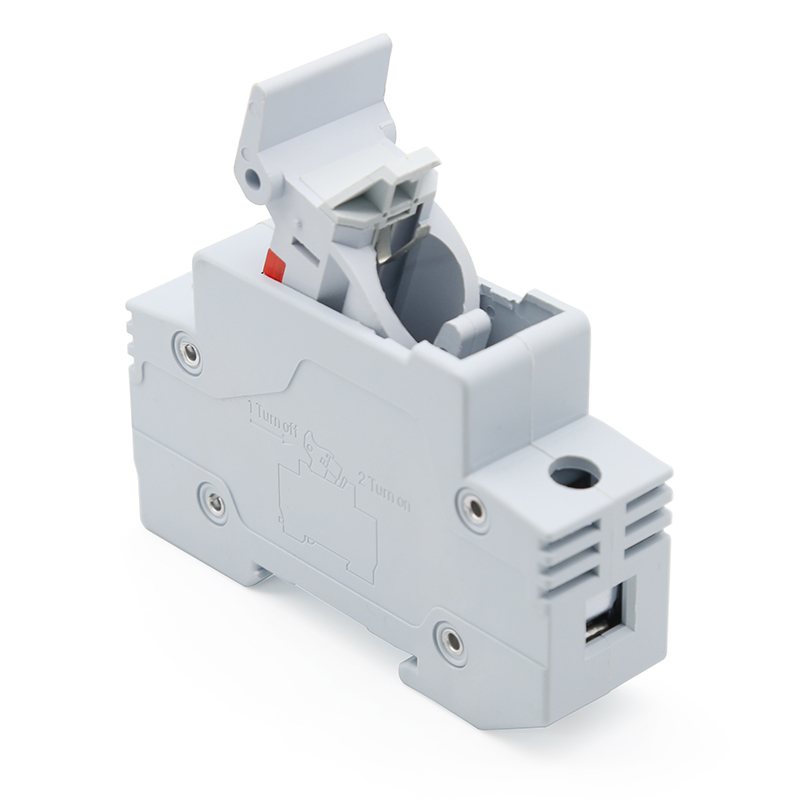

63A 690V DIN Rail Mount RT18-63X 14x51mm Cylindrical Single Pole 1P Fuse Base Holder

This fuse holders is the supporter for fuses with size up to 14X51mm. They are capable of working under heat caused by rated current and expected short impacting current up to 100KA. It can also function as a fuse disconnecting switch by multi-phase combination.

Construction Features of 63A 690V DIN Rail Mount RT18-63X 14x51mm Cylindrical Single Pole 1P Fuse Base Holder

This series of fuse consists of fuse link and fuse base. The variable cross-section fuse body made by pure copper piece (or copper wire, silver wire, silver piece) is sealed in the fusion tube which is made by the high strength porcelain or epoxy glass cloth pipe, there is full of the high-purity quartz sand processed after chemistry to take the extinguishing of arc medium in the tube. The two sides of the fuse use the spot welding to reliably connect with the end plate and to form the cylindrical cap shape structure. Fuse base suppressed by the resin or plastic casing fitted with contacts and contains the fusion pieces, the connection made by riveting as the support of the appropriate size fuse body parts. This series of fuse has many merits such as small in size, convenient for installation, safe in usage, beautiful in appearance and so on.

Advantages of 63A 690V DIN Rail Mount RT18-63X 14x51mm Cylindrical Single Pole 1P Fuse Base Holder

• Flame retardant shell with V0 standard and High heat resistance

• Withstand high power frequency voltage

• high breaking capacity

Application of 63A 690V DIN Rail Mount RT18-63X 14x51mm Cylindrical Single Pole 1P Fuse Base Holder

This series fuse is suitable for AC 50Hz, rated voltage to 1000V, rated current to 125A. It is mainly used for protecting the
electrical circuit against overload and short-circuits(gG/gL). Because of different melting tablets, it also may derive for
rotecting the semiconductor device and others complete set installment from short-circuit (aR/gR/gs/gtr) as well as the electric motor from short-circuit (aM). The rated breaking capacity is to 100KA. They conform to national standard GB13539 and international electrical committee standard IEC60269.
