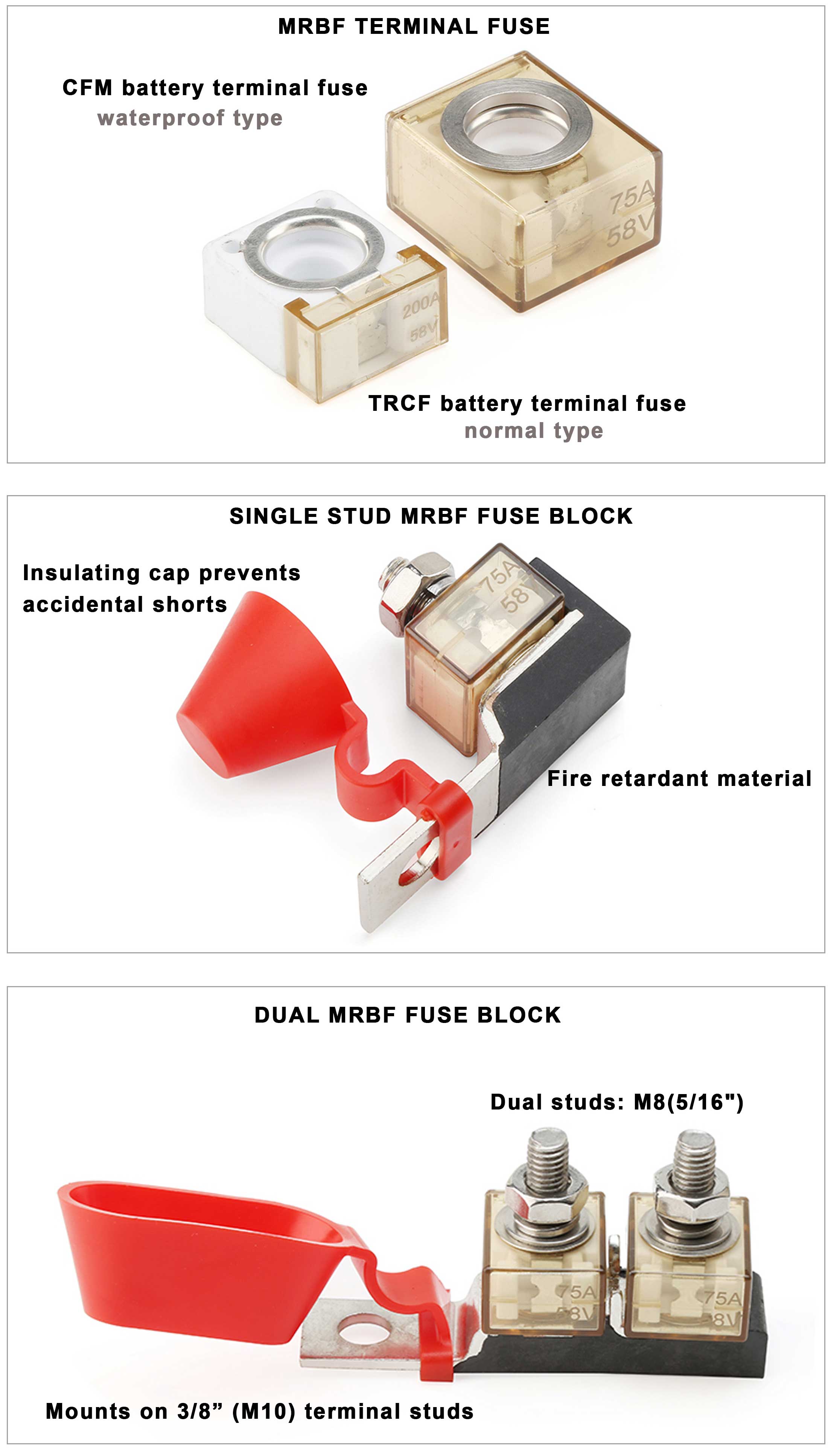

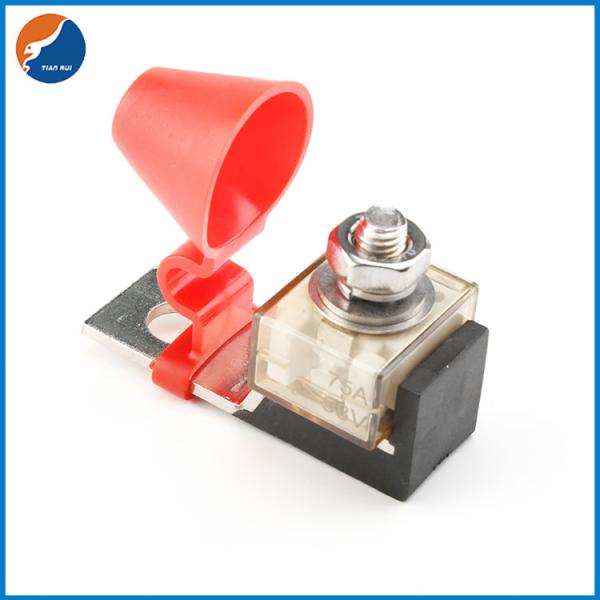

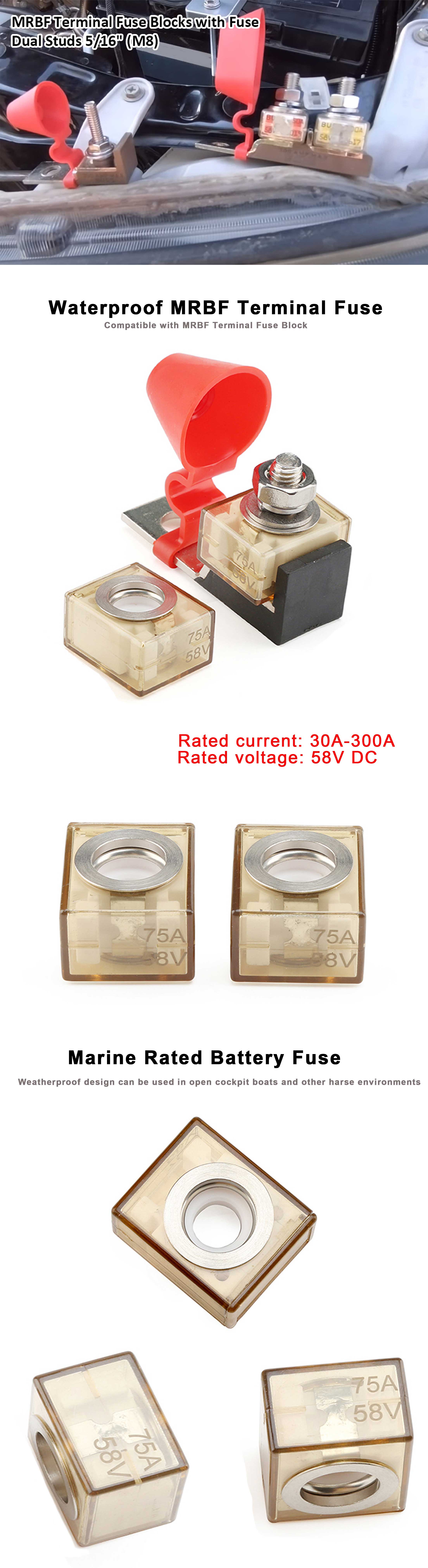

30A to 300A 58V DC Waterproof Type Ceramic Cube Square Fuses MRBF Battery Terminal Fuse for Yacht Marine

An MRBF (Marine Rated Battery Fuse) terminal fuse is a type of fuse commonly used in marine and automotive applications to protect electrical systems from overcurrent and short circuits. It is designed to fit into a specific type of terminal block, known as an MRBF terminal block, which provides a secure and reliable connection.

MRBF terminal fuses are typically rated for high current and are able to handle the high inrush currents that can occur in marine and automotive electrical systems. They are also designed to be weather-resistant and to withstand the harsh conditions of marine environments.

When selecting an MRBF terminal fuse, it is important to choose the correct amperage rating to match the electrical system's requirements. It is also important to use the correct type of MRBF terminal block to ensure a secure and reliable connection.

In summary, an MRBF terminal fuse is a specialized type of fuse used in marine and automotive applications to protect electrical systems from overcurrent and short circuits.

Specification of Waterproof Type Ceramic Cube Square Fuses MRBF Battery Terminal Fuse

Ignition protected (conforming to SAE J1171) -Ignition protected (conforming to SAE J1171) -( 30-300 Amp only)

Features of Waterproof Type Ceramic Cube Square Fuses MRBF Battery Terminal Fuse

* Voltage Max Operating: 58V DC, Amps Max Operating: 300A per block, Terminal Fuses Avail.: 50A-300A, Terminal Stud Size:
5/16"-18 (8mm), Mounting Hole Size: #10 (5mm)
* Clip-on insulating cover satisfies ABYC/USCG insulation requirements
* Versatile wiring options allow all wires to come out a single side. One-piece stainless flange nuts ensure safe and secure
connections.Ignition protected when used with MRBF Terminal Fuse. Fuses sold separately.


Operating Time of Waterproof Type Ceramic Cube Square Fuses MRBF Battery Terminal Fuse

Application of 30A to 300A 58V DC Waterproof Type Ceramic Cube Square Fuses MRBF Battery Terminal Fuse

MRBF stands for "Marine Rated Battery Fuse", which is a type of fuse commonly used in marine applications. MRBF fuses are designed to protect the boat's electrical system and components from overcurrent, short circuits, and other electrical faults.

Some of the common applications of MRBF fuses include:

Battery protection: MRBF fuses are often used to protect the boat's battery from overcurrent or short circuits, which can damage the battery and pose a safety risk.

Inverter protection: Inverters are used to convert DC power from the battery to AC power for running household appliances. MRBF fuses are used to protect the inverter from overcurrent or short circuits.

Windlass and thruster protection: Windlasses and thrusters are used for anchoring and docking the boat. MRBF fuses are used to protect the electrical system of these devices from damage due to overcurrent or short circuits.

Bilge pump protection: MRBF fuses are used to protect the bilge pump from damage due to electrical faults.

Overall, MRBF fuses play a crucial role in ensuring the safety and reliability of the boat's electrical system and components.
