ACN ACS ACU ACZ Add-A-Circuit Adapter ATO ATC Mini Low Profile
Micro2 Car Blade FUSE TAP
Specification of ACN ACS ACU ACZ Add-A-Circuit Adapter ATO ATC Mini Low Profile
Micro2 Car Blade FUSE TAP
Rated Current&Voltage: 30A 32V
Material: Plastic and Copper
Certificate of Wire: UL
Length of Wire: Normal 150mm, or customized
Wire Size: 14WAG-20AWG
Operating Temperature: Less Than 85°C

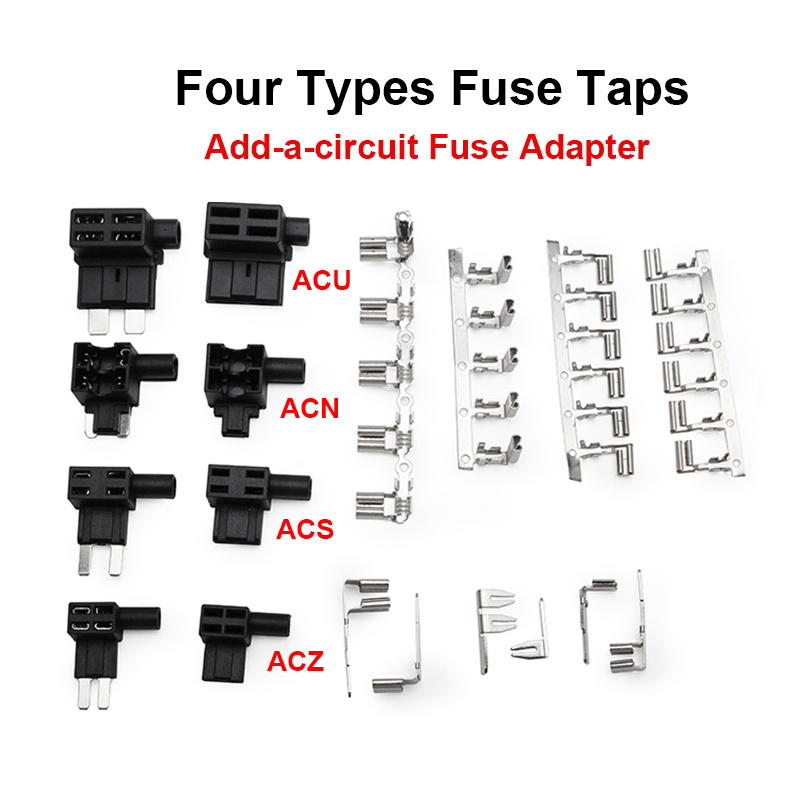

| Part Number | Applicable Fuse | Wire |
| ACN | Low profile fuse | 14-20# UL1015 RED WIRE |
| ACS | Mini fuse | 14-20# UL1015 RED WIRE |
| ACU | ATO ATC fuse | 14-20# UL1015 RED WIRE |
| ACZ | Micro2 fuse | 14-20# UL1015 RED WIRE |
Function of ACN ACS ACU ACZ Add-A-Circuit Adapter ATO ATC Mini Low Profile
Micro2 Car Blade FUSE TAP
Provide a fuse holder to protect the existing circuit and provide
another fuse holder to protect the new circuit.
· Easy to add additional power supply or connect to the fuse box
without cutting off the wire.
· Very practical, providing motivation for your DIY application.
· Replacement of old or bad electricity insurance
Features of ACN ACS ACU ACZ Add-A-Circuit Adapter ATO ATC Mini Low Profile
Micro2 Car Blade FUSE TAP
Flame retardant material, not easy to wear, durable, fine
workmanship, accessories size in strict accordance with the
standard production, metal conductive performance is good, strong
oxidation resistance, complete specifications, diverse styles, can
be customized according to different needs to draw or sample.
Application of ACN ACS ACU ACZ Add-A-Circuit Adapter ATO ATC Mini Low Profile
Micro2 Car Blade FUSE TAP

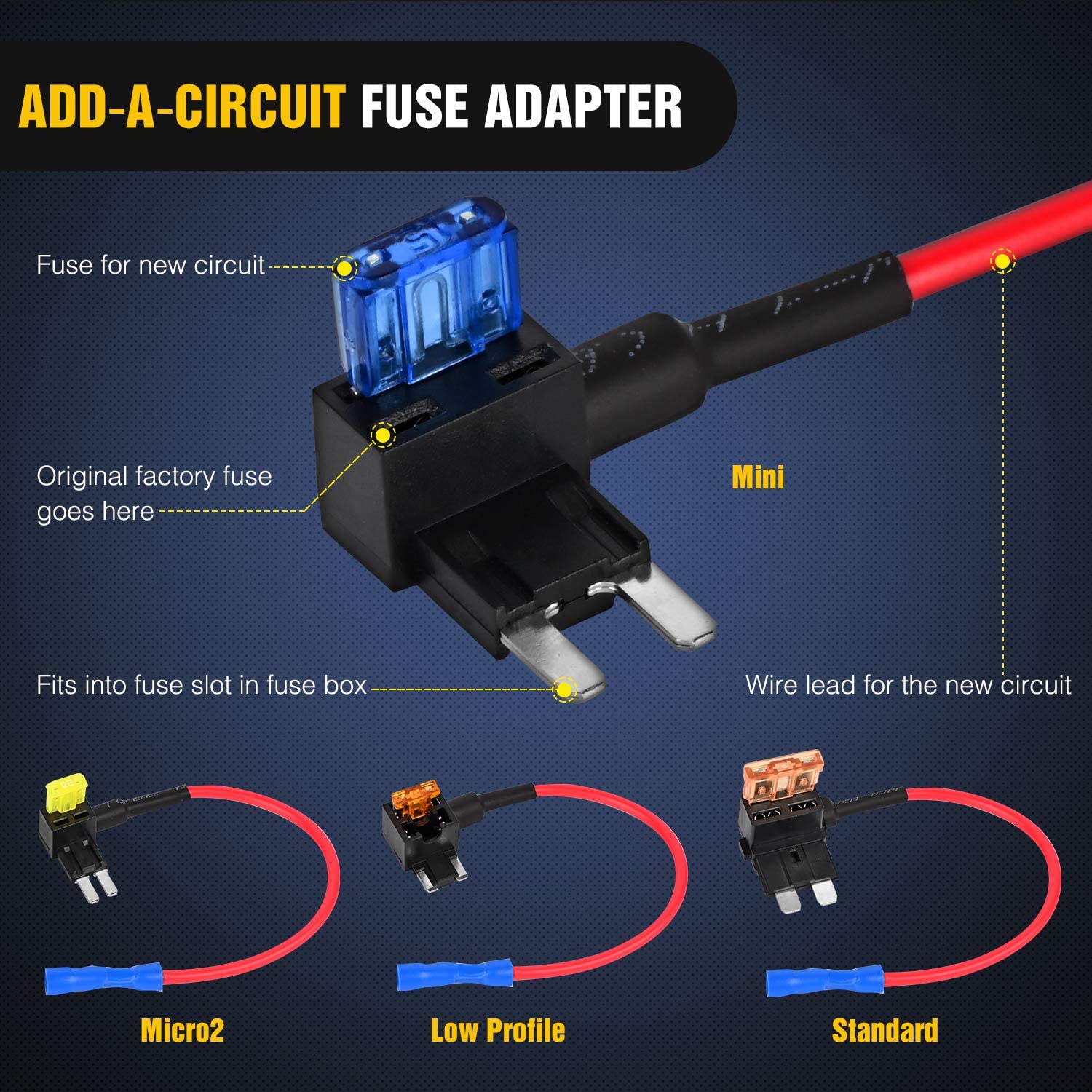

Fuse Tap (Fuse Adapter) is a device that allows you to add
additional circuits to the existing fuse box. It is essentially a
connector that connects to the existing fuse groove and provides
additional grooves for the new fuse. To install a fuse to pick up
electrical appliances, you need to find a suitable fuse groove in
the vehicle fuse box first. The slot has a correct amount of
setting value that is suitable for your expected use. Then, you
need to take some fuses from the slot and insert it into the
electrical appliance. Finally,
You can insert a new fuse with the same rated current into the
original slot of the fuse to pick up the electrical appliance.
Electric is usually used to add attachments to the vehicle, such as
driving recorders, GPS equipment or other electronic products. It
is important to ensure that you will not make the existing
electrical system in the vehicle overload, and you use the correct
ampel value of the new fuse. In addition, some vehicles may have
specific fuse grooves requirements. Therefore, before trying to
install a fuse to get electrical appliances, it is best to check
your owner manual or consult a professional mechanic.
Installation is Simple for ACN ACS ACU ACZ Add-A-Circuit Adapter ATO ATC Mini Low Profile
Micro2 Car Blade FUSE TAP
1. Remove the existing fuse from the fuse box and insert the fuse
into the bottom slot of the fuse plug.
2. Insert the appropriate fuse for the new accessory into the top
slot.
3. Align the new active line with the blue docking terminal on the
fuse switch.
4. Insert the fuse plug into the original fuse box slot of the fuse
box.
