    Waterproof 12V Relay Fuse Box Kit 6 Slots Relay Block ATC / ATO Blade Fuse Holder

    Ask Lasest Price
    Brand Name : TIAN RUI
    Model Number : 5
    Certification : ROHS
    Price : Negotiable
    Payment Terms : T/T, Paypal, Mastercard, Wetern Union, Alipay, etc
    Supply Ability : 1000000PCS per Month
    Delivery Time : 5-7 work days
    • Product Details
    • Company Profile

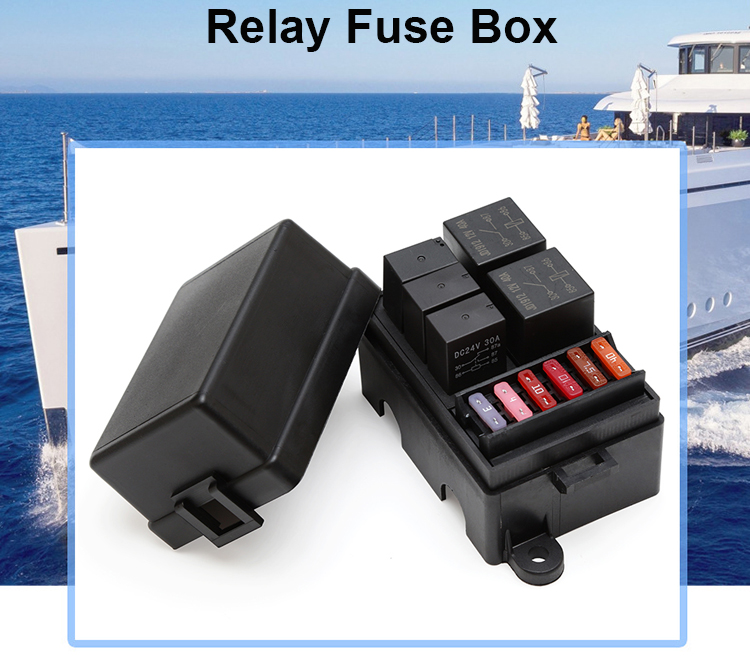

    Waterproof 12V Relay Fuse Box Kit 6 Slots Relay Block ATC / ATO Blade Fuse Holder

    Waterproof 12V Fuse and Relay Box Kit 6 Slots Relay Block and 6 Slots ATC/ATO Blade Fuse Holder


    6-way fuse holder and 6 slots relays car engine control fuse box
    This series of fuse boxes can be specially equipped with fuse positions according to customer requirements
    Product purchase nylon flame retardant material
    Widely used in various cars, robots, etc.
    The fuse holder does not include fuses and relays. Please ask the sales to add them if needed.


    Rated Current
    40A
    Rated Voltage
    12V 24V 32V 48V
    Way/Slot
    6
    Fuse Size
    Standard Blade Fuse, ATC & ATO Fuse
    Fuse Type
    Automotive Blade
    Product Shape
    Insert Type
    Main Material
    Nylon PA66, metal, tinned copper elements
    Base Material
    Thermoplastic
    Color
    Black
    Type
    blade fuse blocks
    Fit For
    6xstandard blade fuse, 6x relay
    Application
    4X4 off-road vehicles, jeeps, SUVs, UTVs, ATVs, RVs, pickup trailers, campers, boats, etc.

    Features of Waterproof 12V Fuse and Relay Box Kit 6 Slots Relay Block and 6 Slots ATC/ATO Blade Fuse Holder


    Features: This car relay fuse box is connected to the installation harness. Once the harness is connected, it can be used without installing terminals and harnesses. The design of the top cover and bottom cover housing facilitates the installation of relays, fuses and wires.


    High quality design: The relay box is designed with 6 slots, 6 slots for 5-pin JD1914 12V 40A relay, and also for 6-slot fuse base of ATC/ATO fuse. The cable cutout hole is the exit for all the wires, which are nicely connected together and better protected from water splash, dust and debris.


    Waterproof relay box: This 12V relay box is equipped with a top cover and a bottom cover. The box is made of high-quality nylon, flame retardant and waterproof, durable and safe, with solid overall structure and strong anti-disassembly performance.


    Package Include: 1 x Fuse Relay Box with Top Cover


    Easy to install: This car relay fuse box has a wiring harness installed, without the need to install terminals and wiring harnesses, and can be used directly after connecting the wiring harness, easy to operate.


    Application of Waterproof 12V Fuse and Relay Box Kit 6 Slots Relay Block and 6 Slots ATC/ATO Blade Fuse Holder


    It is widely used on cars, off -road vehicles, RVs, bus, yacht, boat and other routes. Free combination, a wider range of new energy fuse box can be connected to any circuit, such as: roof lights, car headlights, fog lights, warning lights, car refrigerator, car charger, car fan, car TV, etc. When the current is too high, the safety piece will fuse and cut off the current when the current abnormally rises to a certain height and a certain temperature, so as to protect the safe operation of the circuit.
