RV Refrigerator NTC Thermistor Temperature Sensor 3851210025 for
Dometic RM2451 RM2551 RM2652 RM2852 DM2652 DM2852
Description of RV Refrigerator NTC Thermistor Temperature Sensor
3851210025
Are you still bothered by your refrigerator's inability to provide
the right temperature for your food? Still worried about the
abnormal temperature of the RV refrigerator? If your old thermistor
is no longer working properly, then take a look at our 3851210025
refrigerator thermistor!
Made of PVC material with epoxy coated outer material for better
double sealing stability.
High quality NTC sensor element for more accurate sensing of
refrigerator temperature changes and transmitting the signal to the
control board.
Extended length 51 inches, no longer limited to the dilemma of
thermistor length.

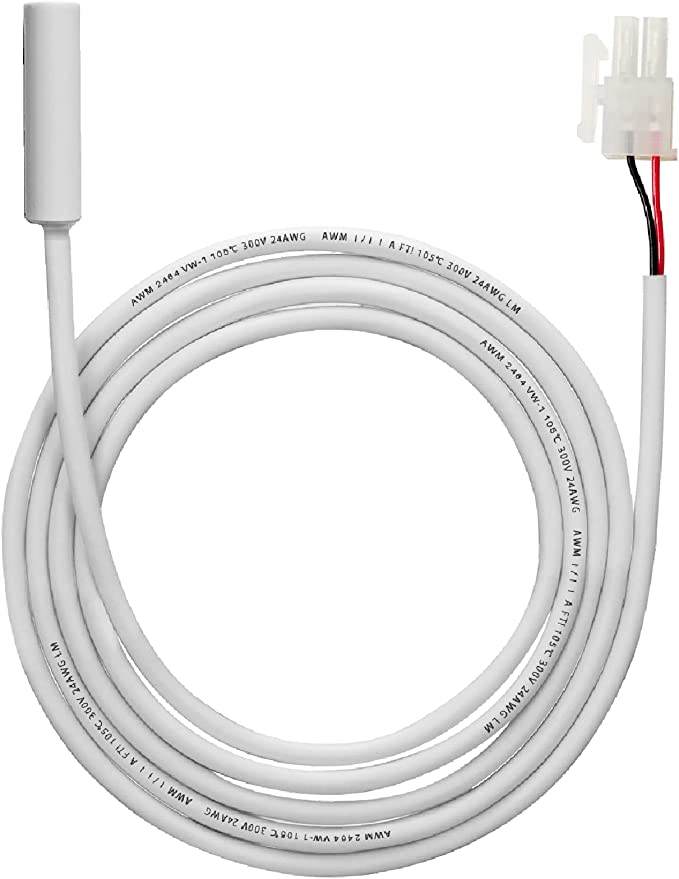

Specification of RV Refrigerator NTC Thermistor Temperature Sensor 3851210025
| Code | Name | Specification | QTY |
| 1 | NTC | R25℃=2.8K±1% B25/50=3950±1% | 1 |
| 2 | Plastic housing | Ø8x30 White plastic | 1 |
| 3 | Epoxy resin | White | / |
| 4 | Cable | UL2464 24# White Sheathed cable | 1 |
| 5 | Terminal | 5556-PT | 2 |
| 6 | Plastic Shell | 5556-2P Transparent | 1 |
Features of RV Refrigerator NTC Thermistor Temperature Sensor
3851210025
【Compatible model】3851210025 thermistor is compatible with
DM2652/DMR702/NDR129, and Dometic RM series models RM1272 RM1350
RM2351 RM2354 RM2410 RM2451 RM2454 RM2551 RM2551 RM2554 RM2607
RM2611 RM2612 RM262 RM262 RM2663 RM2807 RM2811 RM2812 RM2820 RM2852
RM2862 RM3663 RM3762 RM3807 RM3862 RM3863 RM3962 RM4872 RM4873
RM7851.
【High Quality】This thermistor adopts high-quality NTC detection
elements, which can transmit temperature change signals more
accurately. At the same time, the shell is made of environmentally
friendly epoxy resin coating, which is more stable and strong, so
that the overall material can withstand temperature changes without
damage and is durable.

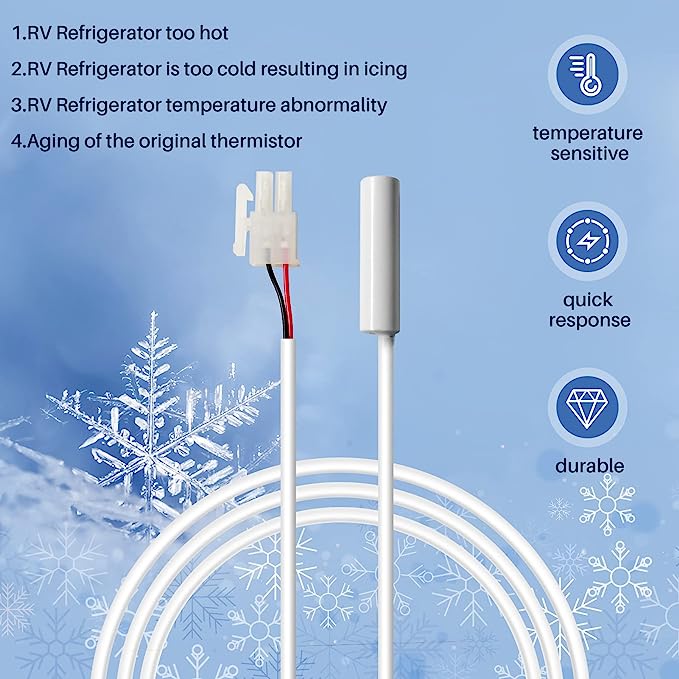

【Product function】The thermistor is used to sense the temperature
change in the refrigerator and send the temperature change signal
to the control board to protect your food from spoilage. If the
refrigerator doesn't hold the temperature you set, making it too
cold or too discolored, causing items to freeze or go bad, you may
want to consider replacing the thermistor with a new one.
Easy Installation of RV Refrigerator NTC Thermistor Temperature Sensor 3851210025
Power off and tie the plug end of the new refrigerator thermistor
to the thermistor end of the old plug you want to remove, unplug
the old plug from the outside, the new plug will go down through
the opening through the bottom, at this point you can unpack ,
discard the old plug and insert the new one. Your refrigerator will
be up and running in no time.
Quality Certification of RV Refrigerator NTC Thermistor Temperature Sensor 3851210025
The replacement part is made from durable high quality material and
well-tested by the manufacturer.
Wide compatibility with OEM specifications,No harmful chemicals and
safe to use.
