    KSD307 Temperature Thermal Switch Normally Closed Thermostat Switch 40A 45A 50A 60A

    Ask Lasest Price
    Brand Name : Tian Rui
    Model Number : KSD307
    Certification : ROHS UL
    Price : Negotiable
    Payment Terms : D/P, T/T,Paypal, Western Union
    Supply Ability : 1000000PCS/Month
    Delivery Time : 5-7 Days
    • Product Details
    • Company Profile

    KSD307 Temperature Thermal Switch Normally Closed Thermostat Switch 40A 45A 50A 60A

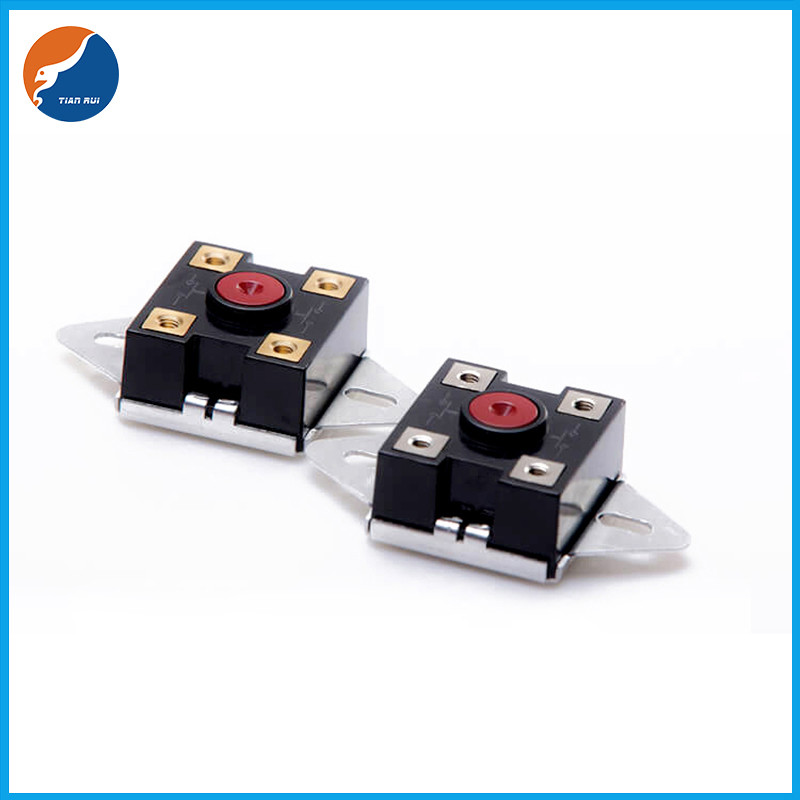

    KSD307 Manual Auto Reset Normal Open Close Type Temperature Thermal Switch Thermostat


    The series of KSD307 that is of double-pole structure falls in the category of manual reset type temperature controller. The product series, safety and reliable, is used in high-duty electric water heater for overheating protection. When the instant snap of bimetal disc occurs at certain temperature, two contacts separate promptly by means of mechanical transition and simultaneously two-phase circuit disconnects in order to completely cut off power supply. Pressing reset lever will restore the power supply.(heavy-duty thermostat)


    KSD307 Temperature Thermal Switch Normally Closed Thermostat Switch 40A 45A 50A 60A


    Technical Requirements


    1)rated voltage and current: AC250/40A-60A


    2)open temperature range: 50-150C(Normally closed/manual reset)


    3)electrical strength
    A: between the shell and the wiring terminal, it can withstand AC1500V/ 0.5ma and does not break down or flash for 1min.
    B: after disconnection, it can withstand AC800V/ 0.5ma, 3S without breakdown and flicker.


    4)Insulation resistance: under normal≥100MΩ


    5)contact resistance: ≤50M Ω


    6)shell material is bakelite shell


    UseOverheat protection
    ApplianceWater heater(heater thermostat)
    Reset typeManual
    Base materialResist heat resin base
    Amperage60A
    Max. Operating Temperature150℃

    Usage


    It is mainly used for enclosed electric water heater, fast heat electric water heater, instant heat electric water heater, electric hot water heater, steam water heater, instant heat electric water heater, electric hot water heater, steam product temperature and super heat protection control.


    Working Principle


    The product is produced and processed with foreign advanced technology and materials, and has the characteristics of stable performance, accurate temperature, no arcing, long service life, and low radio interference.


    Advantages


    High durability


    High precision.


    High loading capacity


    No breakdown, no flashover.


    Every product will be tested, extremely high temperature pass rate.


    KSD307 Temperature Thermal Switch Normally Closed Thermostat Switch 40A 45A 50A 60A


    Contact Details:

    Andy Wu

    Email: andy@tianrui-fuse.com.cn

    MP/Whatsapp: +86 13532772961

    Wechat: HFeng0805

    Skype: andywutechrich

    QQ: 969828363


    Notes


    1) When using contact temperature-sensing installation, the metal cover should be close to the installation surface of the controlled appliance.


    2) Do not deform the cover surface during installation, so as not to affect performance.


    3) In order to prevent leakage of electricity, do not allow liquid to penetrate into the thermostat during use, so as not to affect the electrical reliability.


    4) This product is a bipolar connection method. When using it, follow the marked symbols and connect it correctly.


    5) The product should be stored in a ventilated, clean, dry, and non-corrosive warehouse with a relative humidity of less than 90% and an ambient temperature of 40°C.
