    17AM Bimetal Thermal Switch

    Ask Lasest Price
    Brand Name : Tian Rui
    Model Number : 17AM
    Certification : ROHS UL
    Price : Negotiable
    Payment Terms : D/P, T/T,Paypal, Western Union
    Supply Ability : 1000000PCS/Month
    Delivery Time : 5-7 Days
    • Product Details
    • Company Profile

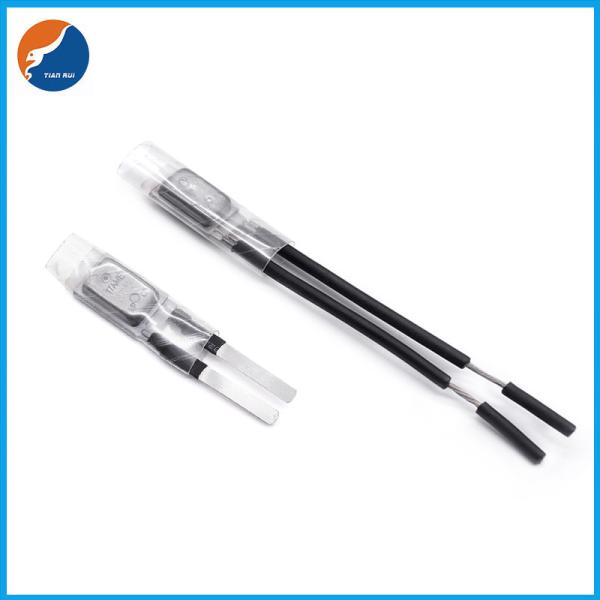

    17AM Bimetal Thermal Switch

    17AM KLIXON Temperature Sensing 65C to 160C Normally Closed Motor Thermal Cut Out Switch Bimetal Thermal Switch


    Thermal Protector for Motor / Ballast for Fluorescent and Temperature Sensing Controls


    17AM Bimetal Thermal Switch


    Technical Characteristics


    Contact Capacity: 125Vac18A for TCO

    250Vac9A for TCO 250Vac1A for TBP

    Temperature Range: 65°C to 160°C for TCO/TMP

    65°C to 135°C for TBP

    Tolerance on Open Temp: +/- 5K, +/- 8K or +/- 10K

    Max. temp. of the switch head: max.160°C

    Automatic Action: Type3C for motor
    Type2C for ballast
    Type2B for TCO

    Operating time: Continuous

    Pollution Situation: Normal

    Extent of sensing element: whole control

    PTI for Insulation: 250

    Degree of protection: IP00

    Electrical connections: On winding, Inserting, Clamping, Bracketing or like


    Nominal Operating TemperatureType of Bimetal Disc (ohms/cmf)
    70125350468
    Temperature Code
    65020060--
    70021061161201
    75022062162202
    80023063163203
    85024064164204
    90025065165205
    95026066166206
    100027067167207
    105028068168208
    110029069169209
    115030070170210
    120031071171211
    125032072172212
    130033073173213
    135034074174214
    140035075175215
    145036076176216
    150037077177217
    155038078178218
    160039079179219


    The Sensata Technologies 17AM delivers the maximum protection in the smallest package at an excellent price…


    The KLIXON 17AM Thermal protector prevents overheating, It’s a miniature, snap acting, thermally operated device that is a proven performer in protection technology. It protects against overheating in:


    • Shaded Pole Motor

    • Permanent split capacitor motor

    • Fluorescent lighting ballasts

    • HID ballasts

    • Transformer

    • Recessed lighting fixtures

    • Battery packs

    • Vacuum cleaners

    • Automotive accessory motors, solenoids, PC boards and other applications


    Here’s why you should be using Sensata Technologies 17AM Thermal Protectors in your product


    • Miniature size.


    • Individually temperature calibrated and checked.


    • Positive make and break with Klixon snap action disc.


    • Repeatable temperature performance over life.


    • Gasket steel case suitable for many impregnation processes.


    • Current and temperature sensitivity for maximum design flexibility.


    • Wide selection of leads and insulating sleeves.


    • Same size and opposite side terminations.


    • Cadmium free contacts


    Operation


    The 17AM Thermal protector uses the same snap-action principle of other KLIXON protectors. The bimetal disc senses both heat and current from the equipment which 17AM is installed on. When the temperature of the disc reaches a predetermined calibration point, the disc snaps open the contacts, thus breaking the current path. When the equipment returns to a normal operating range, the 17AM protector resets (close circuit) automatically. Construction and Configuration is as shown below.


    Certifications


    CategoryULENECCQC
    Motor ProtectorE159622014531.05CQC0200 2001332
    Ballast for Fluorescent and Thermal Cut OutE346182014531.05-
    Temperature Sensing ControlsE346182014531.05-
