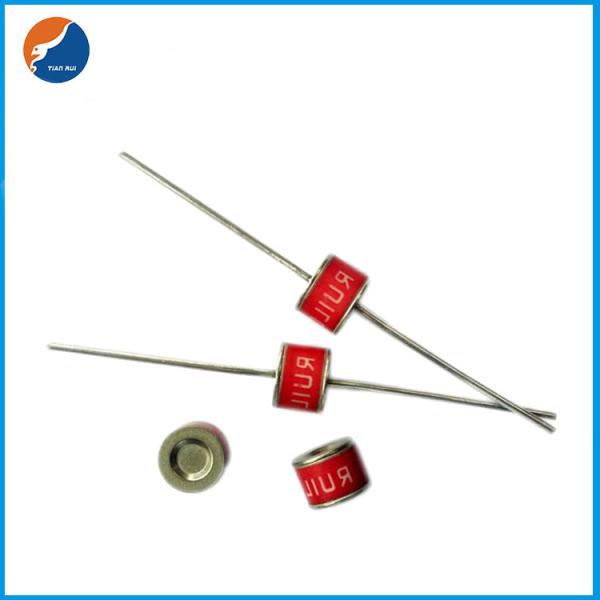

    10kA 5KA 3kA 1000V-5000V GDT Gas Discharge Tube GDT Surge Protection


    2RK-8 Series 10kA 5KA 3kA 1000V-5000V 1.5pF GDT Protection Circuit Surge Protector Ceramic Gas Discharge Tube Arrester


    Description


    2RK-8 Gas Discharge Tubes (GDT) series provides high levels of protection against fast rising transients caused by lightning disturbances. Offered in a miniature surface mount package.


    It has a surge rating of 10KA/5KA/3KA 8/20μs. 2RK-8 GDTs are high voltage (1000-5000V) components designed for surge protection and high isolation applications.


    It is also suitable for applications for which bias voltage orsignal levels of several hundred volts are normally present. 2RK-8 GDTs can be used in conjunction with MOVs (Metal Oxide Varistors) to provide superior protection performance for AC applications.


    10kA 5KA 3kA 1000V-5000V GDT Gas Discharge Tube GDT Surge Protection

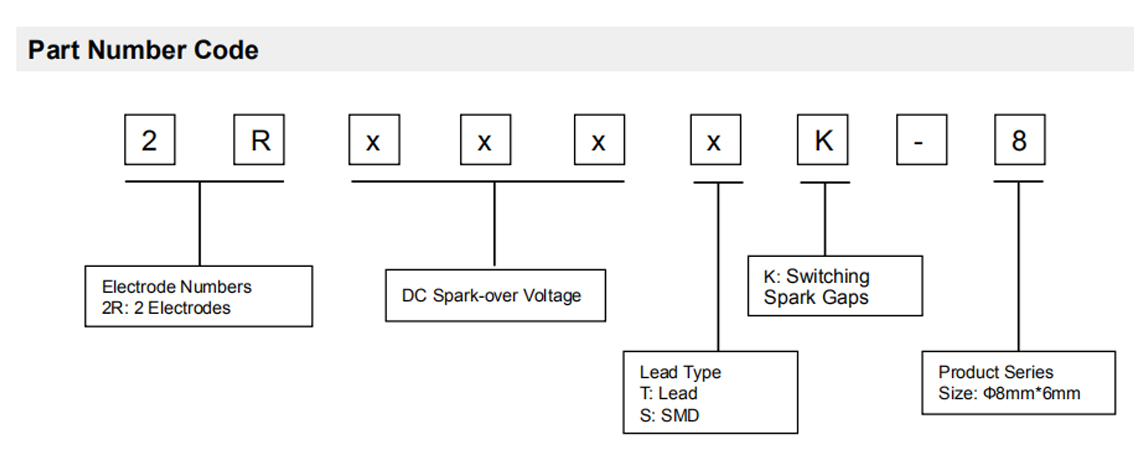

    Part Number Code


    Electrical Characteristics


    Part Number DIP/SMD

    2R230TK-8

    2R230SK-8

    2R250TK-8

    2R250SK-8

    2R300TK-8

    2R300SK-8

    2R350TK-8

    2R350SK-8

    2R380TK-8 3)
    2R380SK-8 3)

    Initial Values
    Static Breakdown Voltage VS @100V/S 1)
    First ignition Value after 24 hours in darkness
    Following Ignition Values


    <275 V
    207~253 V
    <300 V
    225~275 V
    <360 V
    270~330 V
    <420 V
    315~385 V

    <460 V
    350~420 V

    Electrical Life Time
    Breakdown Voltage VB 2)
    First ignition Value after 24 hours in darkness
    Following Ignition Values
    Switching Operations @ +25°C
    Breakdown Time
    Maximum Switching Frequency
    <285 V
    196~265 V
    2×105
    <50 ns
    100 Hz

    <310 V
    215~290 V
    2×105
    <50 ns
    100 Hz
    <370 V
    255~350 V
    2×105
    <50 ns
    200 Hz
    <435 V
    300~405 V
    2×105
    <50 ns
    200 Hz
    <460 V
    330~440 V
    2×105
    <50 ns
    200 Hz
    Test Circuit Parameters
    Open Circuit Voltage V0
    Loading Resistance R
    Discharge Capacitance C
    Inductance L
    Discharge Peak Current Ip

    230 VAC

    15 KΩ
    2.2 µF
    10 µH
    ~300 A
    350 V
    10 KΩ
    680 nF
    0.5 µH
    ~500 A
    400 V
    10 KΩ
    680 nF
    0.5 µH
    ~500 A
    450 V
    10 KΩ
    680 nF
    0.5 µH
    ~500 A
    500 V
    10 KΩ
    680 nF
    0.5 µH
    ~500 A

    Part Number DIP/SMD

    2R400TK-8

    2R400SK-8

    2R450TK-8

    2R450SK-8

    2R470TK-8

    2R470SK-8

    2R500TK-8

    2R500SK-8

    2R550TK-8 4)
    2R550SK-8 4)

    Initial Values
    Static Breakdown Voltage VS @100V/S 1)
    First ignition Value after 24 hours in darkness
    Following Ignition Values


    <470 V
    360~440 V
    <5400 V
    405~495 V
    <560 V
    423~517 V
    <600 V
    450~550 V

    <680 V
    510~630 V

    Electrical Life Time
    Breakdown Voltage VB 2)
    First ignition Value after 24 hours in darkness
    Following Ignition Values
    Switching Operations @ +25°C
    Breakdown Time
    Maximum Switching Frequency
    <500 V
    340~460 V
    2×105
    <50 ns
    200 Hz

    <560 V
    385~515 V
    2×105
    <50 ns
    200 Hz
    <585 V
    400~540 V
    2×105

    <50 ns
    200 Hz
    <625 V
    425~575 V
    2×105
    <50 ns
    200 Hz
    <710 V
    485~655 V
    2×105
    <50 ns
    200 Hz
    Test Circuit Parameters
    Open Circuit Voltage V0
    Loading Resistance R
    Discharge Capacitance C
    Inductance L
    Discharge Peak Current Ip

    520 V

    10 KΩ
    680 nF
    10 µH
    ~500 A
    580 V
    10 KΩ
    680 nF
    0.5 µH
    ~500 A
    600 V
    10 KΩ
    680 nF
    0.5 µH
    ~500 A
    630 V
    13 KΩ
    470 nF
    0.1 µH
    ~600 A
    720 V
    13 KΩ
    470 nF
    0.1 µH
    ~600 A

    Part Number DIP/SMD

    2R600TK-8

    2R600SK-8

    2R630TK-84)

    2R630SK-84)

    2R750TK-85)

    2R750SK-85)

    2R800TK-8

    2R800SK-8

    Initial Values
    Static Breakdown Voltage VS @100V/S 1)
    First ignition Value after 24 hours in darkness
    Following Ignition Values
    <720 V
    540~660 V
    <750 V
    ​585~685 V
    <860 V
    ​690~790 V
    <950 V
    ​720~880 V
    Electrical Life Time
    Breakdown Voltage VB 2)
    First ignition Value after 24 hours in darkness
    Following Ignition Values
    Switching Operations @ +25°C
    Breakdown Time
    Maximum Switching Frequency
    <750 V
    510~690 V
    2×105
    <50 ns
    200 Hz
    <780 V
    540~720 V
    2×105
    <50 ns
    200 Hz
    <920 V
    630~850 V
    105
    <50 ns
    200 Hz
    <1000 V
    680~920 V
    105
    <50 ns
    200 Hz
    Test Circuit Parameters
    Open Circuit Voltage V0

    Loading Resistance R

    Discharge Capacitance C
    Inductance L
    Discharge Peak Current Ip
    750 V
    13 KΩ
    470 nF
    0.1 µH
    ~600 A
    780 V
    13 KΩ
    470 nF
    0.1 µH
    ~600 A
    920 V
    68 KΩ
    100 nF
    0.1 µH
    ~400 A
    1000 V
    68 KΩ

    100 nF
    0.1 µH
    ~400 A

    Insulation Resistance @100 V
    >108 Ω
    Capacitance @1MHz
    <1.5 pF
    Marking, red negative
    RUILON XXXK Y
    XXX -Nominal voltage
    K -Switching Spark Gaps

    Y -Year of production

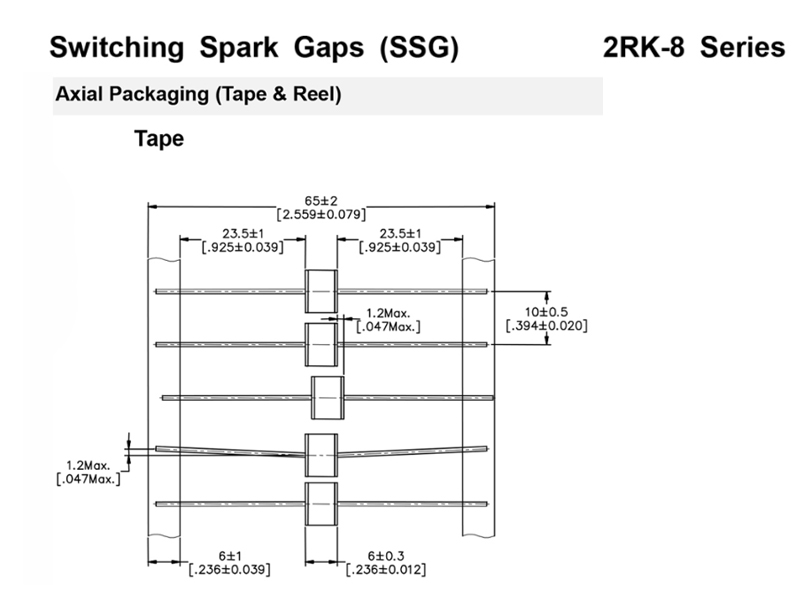

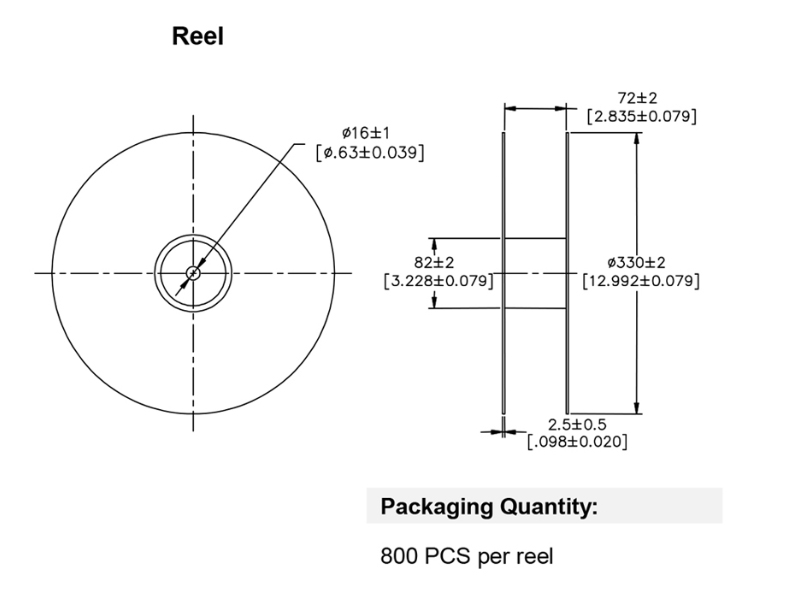

    Weight
    DIP ~1.5g
    SMD ~1.25g
    Operation and storage temperature
    -40~+125°C
    Surface treatment
    DIP -Nickel Plated
    SMD -Matte-tin plated
