Customized T Type Flange 5K 10K 50K 100K 3950 Thermistor NTC Probe
Temperature Sensor

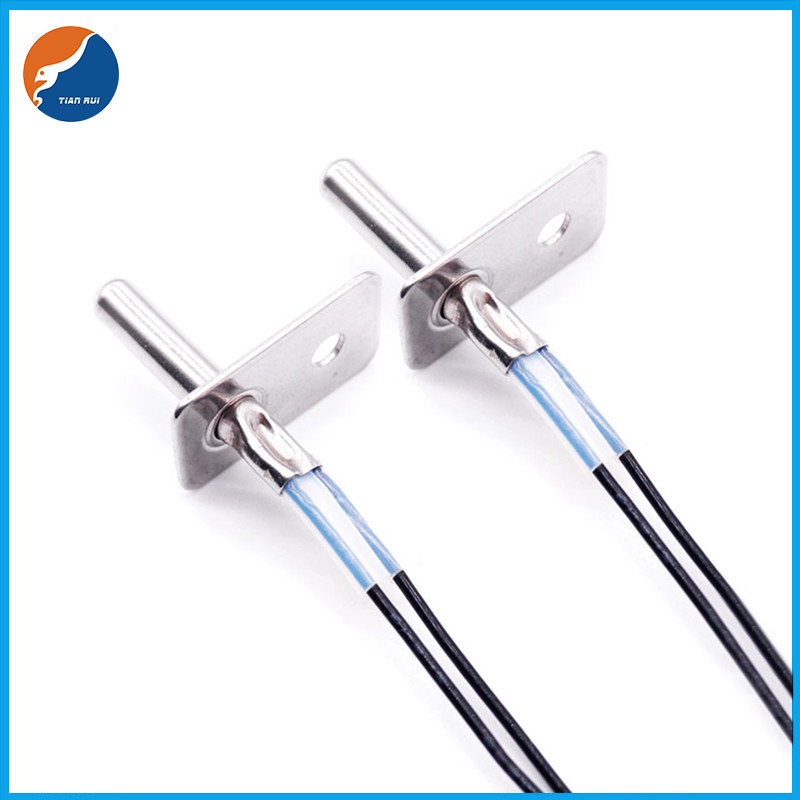

Flange NTC Probe Temperature Sensor
Resistance at 25C: 10K-100KΩ
B value: 3950K
Tolerance: 1%
Theory: Resistance sensor

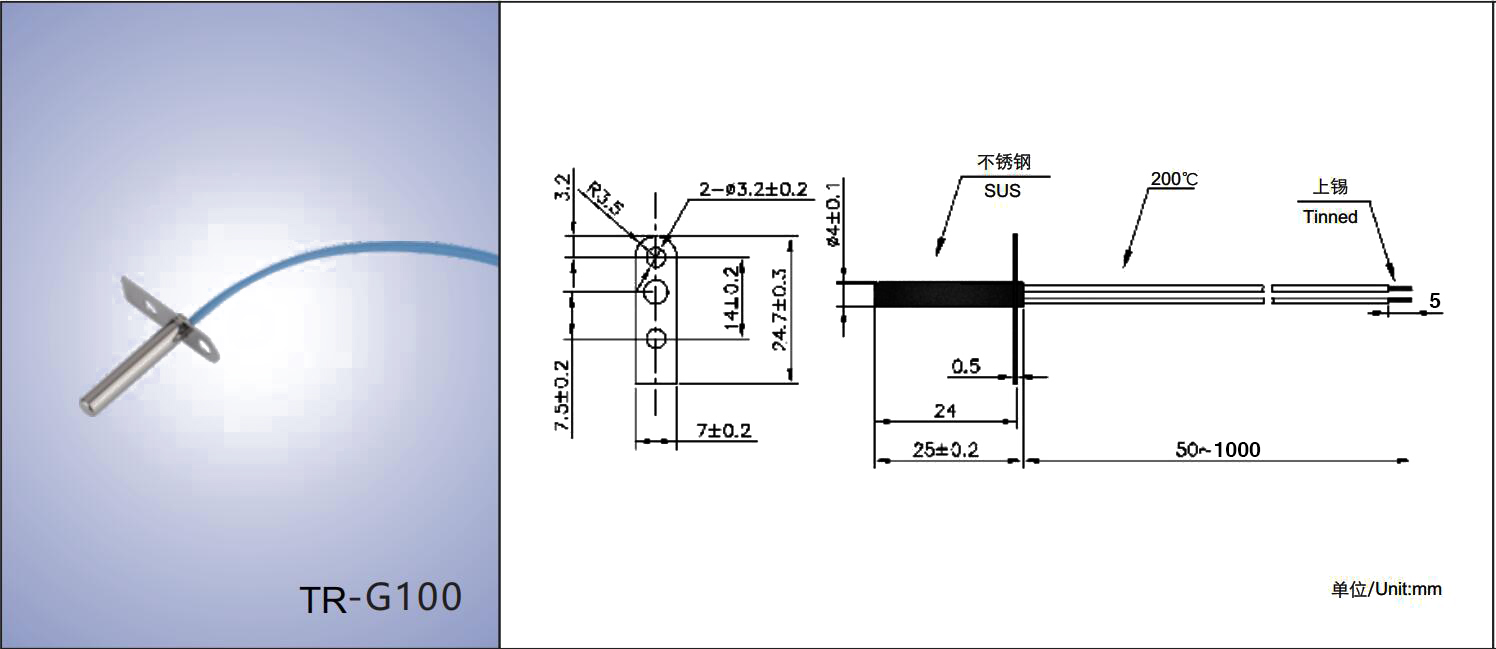

TIP diameter: 4mm
Voltage withstanding: AC1500V~AC2000V,3Sec
Working temerature: From -30℃-180℃
Response time: τ(63.2%)≤15Sec(in liquid)
Features: Fast response Stainless Steel housing temperature sensor
Application: Coffee makers, kettles,etc
Specifications
| Standard NTC | R25℃=100KΩ±1% |
| B25/50=3950K±1% |
| Operating temperature | -30~180℃ |
| Application | microwave oven,rice cooker, coffee maker, etc. |
Description
NTC thermistor beads are welded to the compensation conductor.The
components are packaged in Mylar tubes.The device is encapsulated
in a stainless steel case using epoxy resin.
Characteristics
Fixed depth immersion probe
Customizable temperature tolerance
With a series of R/T curves to choose from
Optional multiple lead length/lead type
Flexible design size that can be adapted to customer requirements
Temperature range from -30C to +180C
Applications
Used in household air conditioners, automobile air conditioners,
refrigerators, freezers, water heaters, water dispensers, heaters,
dishwashers, disinfection cabinets, washing machines, dryers,
medium and low temperature drying ovens, thermostats and other
field and temperature measurement and control.
About Customization
1. Connector specifications can be provided according to customer
requirements for installation
2. Wire length specifications and length can be customized, length
≥30mm
3. Insulation bushing can be installed on the wire according to
customer's requirements
4. The shell size can be evaluated and then customized
FAQ
Q:Are you a trade company or a manufacturer?
A: We are manufacturer.
Q:What is your payment terms?
A: 30% TT deposit in advance and 70% balance before shipment.
Q:Sample time and delivery time ?
A:Normally it will take u about 7 days to finish the sample,and for
mass production is based on quantity.
Q: How long is the mass production time?
A: Normally 15-20 days. Rush order is available.
Q: Can we get a sample before mass production?
A: Of course! The normal produce progress is that we will make the
pre-production sample for your quality evaluation. The mass
production will be started after we get your confirmation on this
sample.
Q: How long can we got this sample?
A: After receiving the sample charge and all the item and
specification being confirmed, the sample time is 1-3 days and
Express delivery usually needs around 3-4 day.
Q: Is the sample charge can be refundable?
A: Yes, normally the sample charge (some small models) can be
refundable when you confirm the mass production, but for the
specific situation please contact the people who follow up with
your order.
Q: What shipping methods are available?
A: Standard delivery. For urgent sample testing delivery, select an
air shipment method. We work with UPS, FEDEX, TNT, DHL, EMS, etc.
to delivery your order quickly. For large, heavy items and special
handling select a ground or sea shipping method. Or any delivery
way use your courier account to pay.
Q: Which payment items we can use?
A: TT/Bank, Trade Assurance, Western Union/Money Gram (Only for the
small order) is the payment way.
Q: Could we have your catalogue and price list for trial order in
MOQ quantity?
A: All our products are showing on Alibaba or our official website,
please have a detailed checking and choose the interested models in
our site, or directly ask the sales dept. to get more information
