Heat Sensitive NTC 10K 100K Terminal Loop Ring Lug Surface Mount
Temperature Sensor

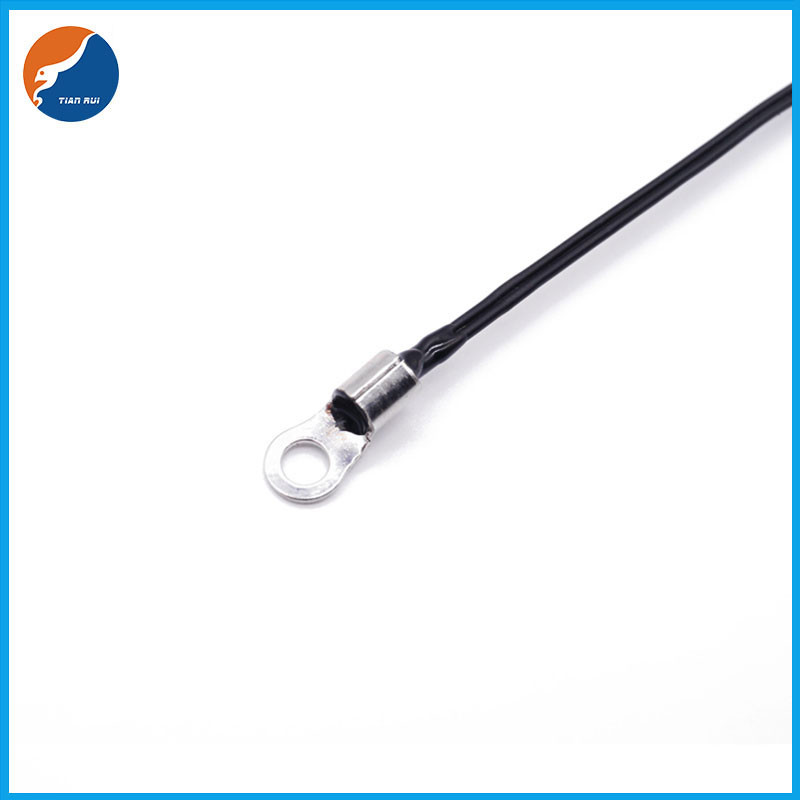

Surface Mount NTC Temperature Sensor
Resistance at 25℃: 100K Ω±2%
B value: 3950K±1%
Probe: O-Lug Surface Mounting Probe
Hole size: φ4mm
Wire: 10mm to 1000mm PVC wire 105℃, or customized
Operation temperature: -20 to +150℃
Specification of Surface Mount NTC Temperature Sensor
Standard NTC | R25℃=100KΩ±2% |
| B25/50=3950K±1% |
Operating temperature | -20~150℃ |
Application | induction cooker,transducer, lithium battery,electric motor, etc. |
Description of Ring Lug Temperature Sensor
Surface mount temperature sensor is made with high precision,
reliable NTC thermistor connected to high quality PVC cable, which
is wrapped with insulated, heat conductive and water resistant
materials into desired shapes, so as to facilitate long-distance
temperature measurement and control and installation.
Features of Ring Terminal NTC Temperature Sensor
1. Wide operating temperature range, good stability and
reliability.
2. Easy to installation and manipulation as the sealing can be done
according to environment and conditions there it is applied by
customer.
3. Accurate testing can reflect temperature change precisely.
4. Insulating resistance(MΩ): more than 100MΩ
5. Working temperature range(celsius): -20 to +150
6. Dissipation factor(mw/celsius): 5-15 (in still air)
7. Thermal time constant(s): 20-50 (in air)
Application of NTC Temperature Sensor
•Refrigerator, freezer, wine cooler, air conditioner or other
cooling systems.
•Electric water heater, electric kettle, Coffee maker, intelligent
oven, rice cooker, toaster, bread machine.
•Intelligent closestool, washing machine, dishwasher, charging
pile, automotive temperature measurement.
•Energy storage, Gps tracker, motor.
Specification of 100K NTC Temperature Sensor
| Standard NTC | R25℃=100KΩ±1% |
| B25/50=3950K±1% |
| Operating temperature | -20~250℃ |
| Application | oil expeller,toaster, microwave oven, etc. |
Specification of 10K NTC Temperature Sensor
| Standard NTC | R25℃=10KΩ±1% |
| B25/50=3435K±1% |
| Operating temperature | -30~125℃ |
| Application | lithium battery,transducer, surface temperature measurement, etc. |
FAQ of Heat Sensitive NTC Temperature Sensor
Q:How long will you give me the reply?
A: we will contact you in 12 hours as soon as we can.
Q:Can you accept ODM & OEM service ?
A:We professional provide OEM &ODM service and most of our
product can be customized.
Q:Could I get samples?
A:Yes,we have materials in stock to help you to get the samples as
soon as we can.
Q:How is the price?
A:As we believe the quality is the most important,we will provide
the best quality pressure sensor we can with reasonable price.
Q:Could you provide me the shortest lead time?
A:We have materials in our stock,if you really need,you can tell us
and we will try our best to satisfy you.
Q: How can I get the quotation?
A: Send your inquiry to us by the inquiry from on the right-side or
the bottom of this page.
Q: How can I get my sensors?/ What's the means of transport?
A. We main delivery goods by express: DHL, FedEx, UPS, TNT, etc or
logistics by indicator.
