EVL High Speed High Volatge Bolted Installation Tube Car Automobile EV Charging Ceramic Fuse

EVL31-EVL37 Series DC Fast Acting Fuse

Specifications

Rated Current:25A to 450A

Rated Voltage: DC110V

Function Level: aR/gR

Breaking Capacity: DC≥30KA

Standard: IEC/ GB/T13539

Shape and Size

Model	Size(mm)
	B±1.5	D±1.5	G±1	H±0.5	J±1.5
EVL31	18.5	56	42	6.5	9
EVL32	21.5	58	42	9	11
EVL33	26.8	80	58	9	11
EVL36	35.5	85	58	10.5	19
EVL37	47.5	90	65	10.3	16

Technical Parameters

Model	Current(A)	Pre-arc I2t	Breaking I2t	Rated Power(W)	Curve
EVL31	25	20	260	4.5	Figure5, Figure7
	32	35	470	5.5
	35	58	630	5.5
	50	120	1500	7
	63	190	2300	9
EVL32	63	190	2300	8	Figure5, Figure7
	80	340	4000	10
	100	650	7700	10.5
	125	650	7700	16
EVL33	100	650	7700	9.5	Figure5, Figure7
	125	650	7700	15
	160	1200	16200	21
	180	1700	29200	22
EVL36	160	1200	16200	18	Figure6, Figure7
	180	1700	29200	20
	200	1800	20400	28
	250	3400	40500	28
	315	6400	75500	35
EVL37	315	6400	75500	33	Figure6, Figure7
	355	8500	101000	33
	400	14500	161000	40
	450	18400	221200	42

Time-Current Curve

Cut-off Current Characteristics

EVL61-EVL67 Series DC Fast Acting Fuse

Specifications

Rated Current:25A to 550A

Rated Voltage: DC500V

Function Level: aR/gR

Breaking Capacity: DC≥30KA

Standard: IEC/ GB/T13539

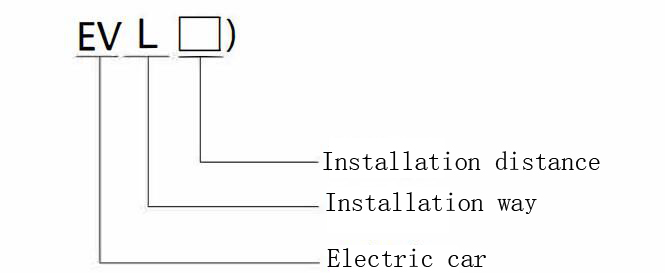

Model Definition

Shape and Size

Model	Size(mm)
	B±1.5	D±1.5	G±1.5	H±0.5	J±1.5
EVL61	18.2	76	62	6.5	9
EVL62	21.3	90	70	9	11
EVL63	26.8	0	70	9	11
EVL66	32.7	85	81	10.5	19
EVL67	47.5	90	84	11	16

Technical Parameters

Model	Current(A)	Pre-arc I2t	Breaking I2t	Rated Power(W)	Curve
EVL61	25	30	260	8	Figure5, Figure9
	32	40	380	12
	35	60	520	12
	40	110	950	10
	45	110	1200	12
	56	140	1600	14
	63	180	2200	11
EVL62	63	180	2200	17	Figure6, Figure10
	71	230	1000	18
	80	270	1600	21
	90	380	2200	21
	100	500	3000	24
	120	540	3200	32
EVL33	90	380	2200	21	Figure7, Figure11
	100	500	3000	24
	120	540	3200	32
	140	1100	3900	36
	160	1550	6000	39
	180	1450	8600	48
EVL36	180	1450	8600	48	Figure6, Figure10
	200	2700	19000	40
	225	3800	27000	44
	250	5300	38000	48
	280	7100	55100	48
	315	10500	77300	57
EVL37	315	10500	77300	57	Figure8, Figure12
	350	15200	105300	56
	400	10100	7300	86
	450	15100	105300	90
	500	20200	150500	100
	550	30300	21550	100

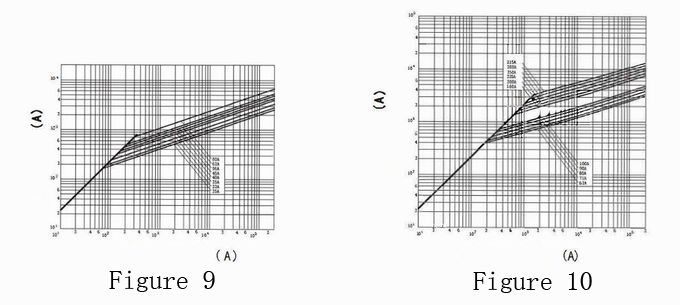

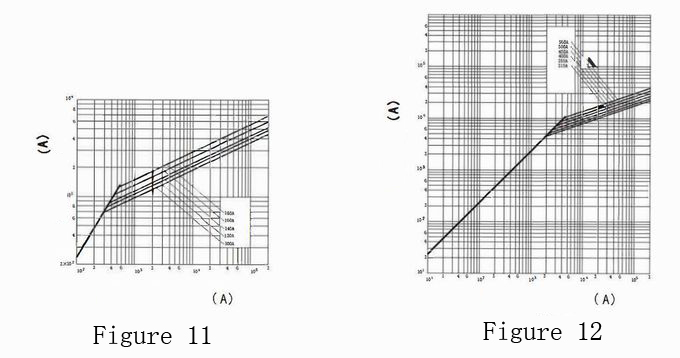

Time-Current Curve

Cut-off Current Characteristics

EVL68 Series DC Fast Acting Fuse

Specifications

Rated Current:180A to 350A

Rated Voltage: DC600V

Function Level: aR/gR

Breaking Capacity: DC≥30KA

Standard: IEC/ GB/T13539

Model Definition

Shape and Size

Technical Parameters

Model	Rated Current(A)	Pre-arc I2t	Breaking I2t	Rated Powerc(W)	Curve
EVL68	180	1360	13550	40	Figure5, Figure6
	200	2550	18400	40
	225	3650	26600	44
	250	5100	33700	48
	285	16900	55200	48
	315	10000	77200	55
	350	14800	105300	55

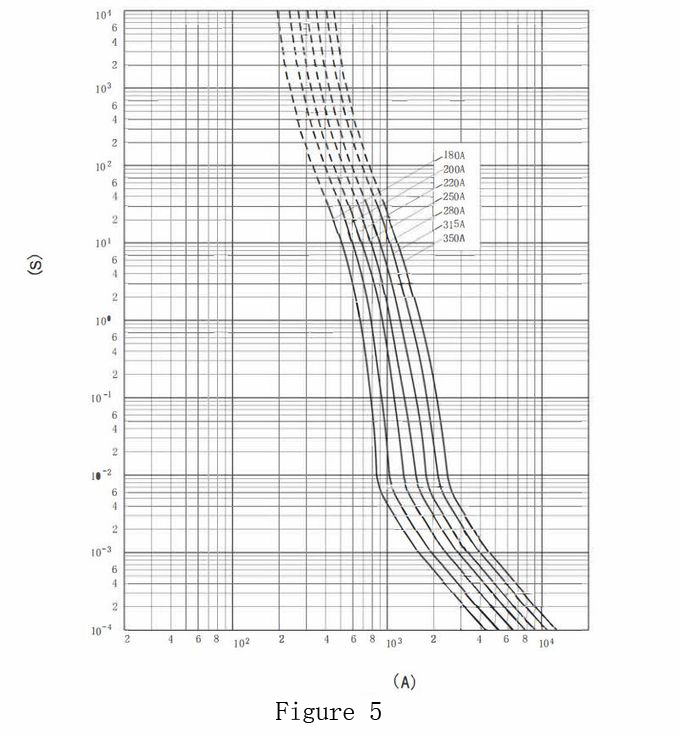

Time-Current Curve

Cut-off Current Characteristics
