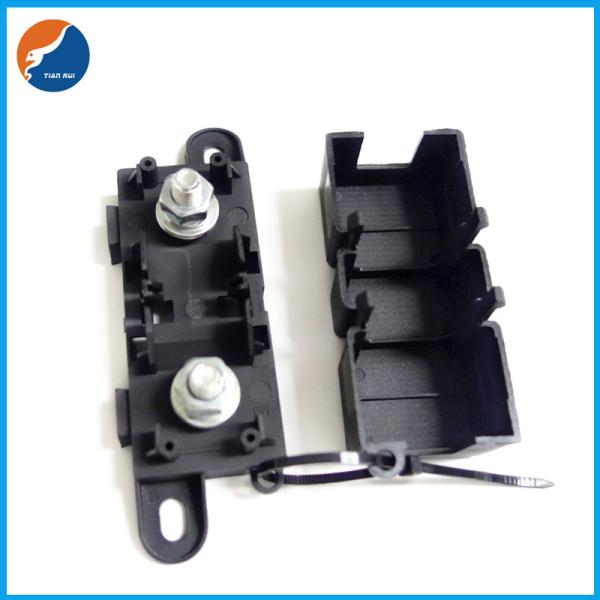

ANM-H Vehicle Automobile Car Auto Automotive Bolt Down Black ANM MEGA Fuse Box Fuse Holder

MEGA 298 Splashproof Series 32V Bolt-Down Fuse Holder, which can be the equivalent of 2908907-03 MEGA fuse holder.

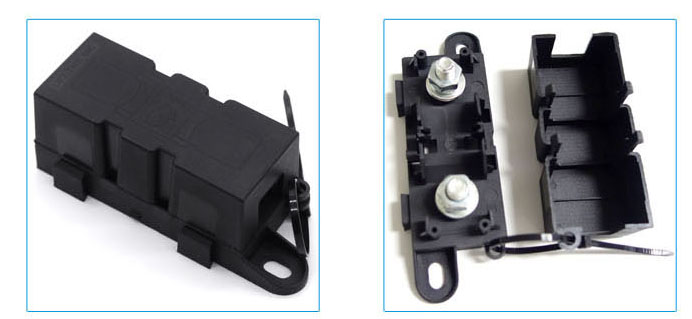

The MEGA 298 Splashproof Series 32V Bolt-Down Fuse Holder is designed to mount and encase any MEGA bolt-down fuse with a current rating up to 500 amps. When mated, the nylon MEGA 298 Splashproof base (298907-030) and cover (298907-040), each sold separately, provide splashproof protection using a silicone O-ring and grommets. This MEGA bolt-down fuse holder is ideal for battery and alternator connections as well as other types of heavy gauge cables that require ultra-high current protection.

Specification of 298 Series MEGA ANM Bolt Down Fuse Holder

1. Product Name: Mega ANM Fuse Holder
2. Fuse Size: ANM Fuse
3. Max Fuse Rating: 500A
4. Rated Voltage: 32V
5. Material: PA66+Screw-thread Steel+Nickel Plated Brass
6. Mounting Torque: 5NM
7. Studs: M8 Threaded

Description of 298 Series MEGA ANM Bolt Down Fuse Holder

Use with MEGA fuse up to 500amps. Ideal for battery and alternator connections and other heavy gauge cables requiring ultra high current protection. Includes protective cover. Features interconnecting pins on side of fuse block for secure multiple block configurations. Includes M8 threaded studs and hex nuts with lock washers. Fuse not included.

Features and Benefits of 298 Series MEGA ANM Bolt Down Fuse Holder

•Compatible with MEGA fuses with a current rating of up to 500 amps (fuse not included)
•Silicone O-ring and grommets create a splashproof seal when the fuse holder is fully assembled (base and cover sold separately) •Interconnecting pins on the side of the fuse holder allow for multiple block configurations
•M8 stud input and output terminals

Application of 298 Series MEGA ANM Bolt Down Fuse Holder

Battery and Alternator Connections

High Current Auto ANM Fuse Holder

Applicable for ANM auto fuse
