40A-3600A Industrial Power Fuses Square Plate Type Fast Acting Fuse With Filler

Ask Lasest Price
Brand Name :	Tian Rui
Model Number :	P Type Series
Certification :	ROHS
Price :	Negotiable
Payment Terms :	D/P, T/T,Paypal, Western Union
Supply Ability :	1000000PCS/Month
Delivery Time :	5-7 Days

Add to Cart

Product Details
Company Profile

40A-3600A Industrial Power Fuses Square Plate Type Fast Acting Fuse With Filler

P Type Series Square Plate Semiconductor Device Protection Fast Speed Acting Fuse Link with Filler

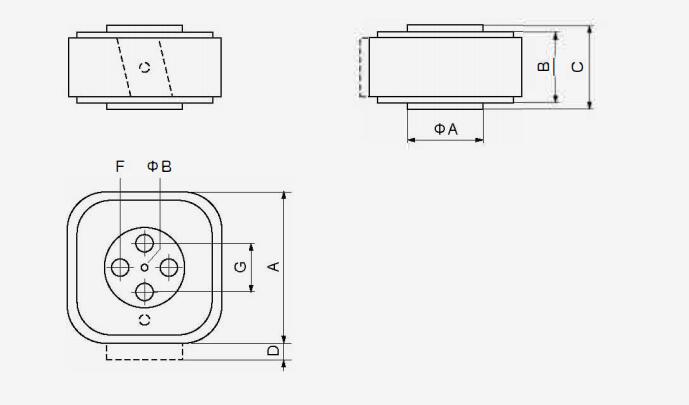

Model				Rated Voltage(V)								Current Range(A)									Size(mm)
																					A			B		D					E		F				G				φH
BRF01P51KN				AC690/700,DC250/500								40-630									50			51		59					43		M8				5				17
BRF02P51KN				AC690/700,DC250/500								200-900									50			51		69					50		M8				8				20
BRF03P51KN				AC690/700,DC250/500								400-1250									50			51		77					60		M10				10				24
BRF05P51 KN				AC690/700,DC250/500								500-2000									50			51		92					75		M12				10				30
BRF06P60KN				AC500/690,DC250								1500-2200									55			60		97					85		M12				10				54
BRF07P60KN				AC500/690,DC250								1600-3000									57			63		117					105		M16				14				70
BRF08P60KN				AC500/690,DC250								2300-3600									55			60		132					120		M16				14				84

No.	Model								Rated Voltage(V)							Current Range(A)									Size(mm)
																									A		B				C		D				F				G			φA			φB
156	BRF07P67A								AC690f700, DC250/500							1000-4000									105		53				67		15		4xM10						33			56			4
157	BRF07P67AKN								AC690f700, DC250/500							1000-4000									105		53				67		15		4xM10						33			56			4
158	BRF07P67B								AC690f700, DC250/500							1000-4000									105		53				67		15		4xM10						38			56			4
159	BRF07P67BKN								AC690f700, DC250/500							1000-4000									105		53				67		15		4xM10						38			56			4

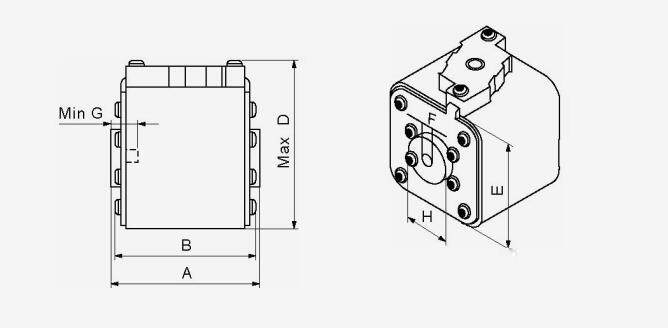

No.	Model							Rated Voltage(V)					Current Range(A))									Size(mm)
																						A			B				D				E				F						G				φH
160	BRF01P75KN							AC1000,DC800					50-400									75			725				61				43				M8						5				17
161	BRF02P75KN							AC1000,DC800					160-630									75			73				69				50				M8						8				20
162	BRF03P75KN							AC1000,DC800					250-800									75			73				77				60				M10						10				24
163	BRF05P75KN							AC1000,DC800					315-1400									75			73				92				75				M12						10				30
164	BRF06P80KN							AC800,DC700					1500-2200									80			74				97				85				M12						10				54
165	BRF06P90KN							AC1000,DC800					1500-2200									90			84				97				85				M12						10				54
166	BRF07P80KN							AC800,DC700					1600-2500									80			74				117				105				M16						14				70
167	BRF07P90KN							AC1000,DC800					1600-2500									90			84				117				105				M16						14				70
168	BRF08P80KN							AC800,DC700					2300-3600									80			74				132				120				M16						14				84
169	BRF08P90KN							AC1000,DC800					2300-3600									90			84				132				120				M16						14				84

No.	Model								Rated Voltage(V)						Current Range(A)									Size(mm)
																								A			B					D			E				F					G			φH
170	BRF01P75KN								AC1250/1300,DC800						50-400									75			74					59			43				M8					5			17
171	BRF02P75KN								AC1250/1300,DC800						160-630									75			74					69			50				M8					8			20
172	BRF03P75KN								AC1250/1300,DC800						250-800									75			74					77			60				M10					10			24
173	173BRF05P75KN								AC1250/1300,DC800						315-1400									75			74					92			75				M12					10			30
174	BRF01P80KN								AC1250/1300,DC800						50-400									81			80					59			40				M8					5			17
175	BRF02P80KN								AC1250/1300,DC800						160-630									81			80					69			50				M8					8			20
176	BRF03P80KN								AC1250/1300,DC800						250-800									81			80					77			60				M10					10			24
177	BRF05P80KN								AC1250/1300,DC800						315-1400									81			80					92			75				M12					10			30
178	BRF03P90KN								AC1250/1300,DC800						250-800									90			80					77			60				M10					10			24
179	BRF05P90KN								AC1250/1300,DC800						315-1400									90			80					92			75				M12					10			30
180	BRFJ8P100KN								AC1250/1300,DC800						2300-3200									100			94					132			120				M16					14			84
181	BRF J8P130KN								AC 1500 ,DC 1000						2300-3200									130			124					132			120				M16					14			84

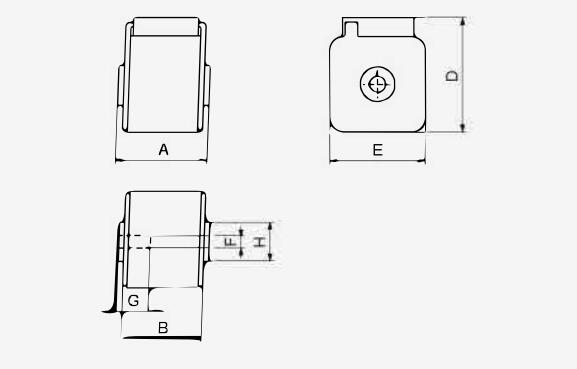

No.	Model							Rated Voltage(V)							Current Range(A)									Size(mm)
																								A			B				C			D			E				F						H
182	BRF05P56RKN							AC250/500/690,DC250							250-1000									56			75				88			112			46				2xM12						30
183	BRF05P76RKN							AC800/1000,DC700/800							700-1250									76			75				88			112			46				2xM12						30
184	BRF07P63RKN							AC500,DC250							1600-3000									63			105				117			142			70				2xM12						40
185	BRF07P63RKN							AC690,DC250							1600-2500									63			105				117			142			70				2xM12						40
186	BRF07P80RKN							AC800,DC700							1600-2500									80			105				117			142			70				2xM12						40
187	BRF07P90RKN							AC1000,DC800							1250-2500									90			105				117			142			70				2xM12						40
188	BRF08P60RKN							AC500/690,DC250							2300-3600									60			120				132			157			84				2xM12						50
189	BRF08P80RKN							AC800,DC700							2300-3600									80			120				132			157			84				2xM12						50
190	BRF08P90RKN							AC1000,DC800							2300-3200									90			120				132			157			84				2xM12						50
191	BRF08P100RKN							AC1250,DC1000							2300-3200									100			120				132			157			84				2xM12						50
192	BRF08P130RKN							AC1500,DC1000							2300-3200									130			120				132			157			84				2xM12						50

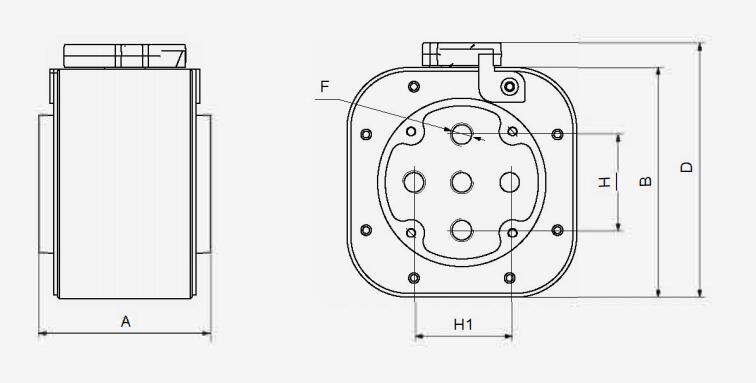

No.	Model									Rated Voltage(V)						Current Range(A)									Size(mm)
																									A						B			H					H1				F
193	BRF07P80AKN									AC800,DC700						1000-3000									80						105			33					33				4xM10
194	BRF07P90AKN									AC1000,DCSOO						1250-2500									90						105			33					33				4xM10
195	BRF07P100AKN									AC1250,DC1000						1250-2500									100						105			33					33				4xM10
196	BRF07P130AKN									AC1500,DC1000						1250-2000									130						105			33					33				4xM10

No.	Model									Rated Voltage(V)					Current Range(A)									Size(mm)
																								A			B					D				H			H1					F
197	BRF07P80BKN									AC800,DC700					1000-3000									80			105					118				40			33					4xM12
198	BRF07P90BKN									AC1000,DC800					1250-2500									90			105					118				40			33					4xM12
199	BRF07P100BKN									AC1250,DC1000					1250-2500									100			105					118				40			33					4xM12
200	BRF07P130BKN									AC1500,DC1000					1250-2000									130			105					115				40			33					4xM12

No.	Model									Rated Voltage(V)					Current Range(A)									Size(mm)
																								A			B					D				H			H1					F
201	BRF08P60FKN									AC500,DC250					2500-3900									60			120					134				50			50					4xM12
202	BRF08P60FKN									AC690,DC250					2500-3900									60			120					134				50			50					4xM12
203	BRF08P80FKN									AC800,DC700					2500-3900									80			120					134				50			50					4xM12
204	BRF08P90FKN									AC1000,DC800					2500-3900									90			120					134				50			50					4xM12
205	BRF08P100FKN									AC1250,DC1000					2500-3900									100			120					134				50			50					4xM12
206	BRF08P130FKN									AC1500,DC1000					1800-3000									130			120					134				50			50					4xM12

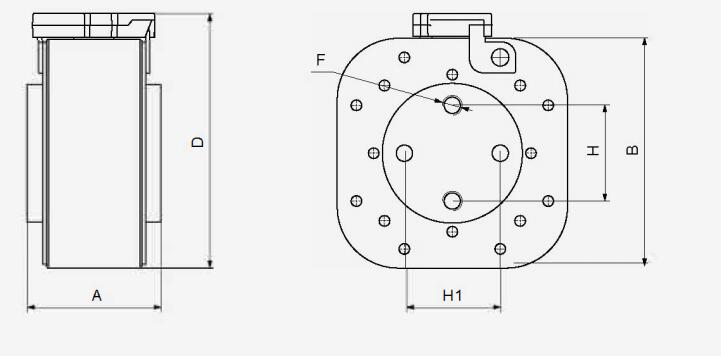

No.	Model								Rated Voltage(V)				Current Range(A)									Size(mm)
																						A					B				D			H					H1					F
207	BRF09P60KN								AC500,DC250				4000-7000									60			152						164			625					625					5xM12
208	BRF09P60KN								AC690,DC250				4000-7000									60			152						164			625					625					5xM12
209	BRF09P80KN								AC800,DC700				4000-7000									80			152						164			625					625					5xM12
210	BRF09P100KN								AC1000,DC800				4000-6000									100			152						164			625					625					5xM12
211	BRF09P100KN								AC1250,DC1000				3600-5500									100			152						164			625					625					5xM12
212	BRF09P130KN								AC1500,DC1000				3200-4200									130			152						164			625					625					5xM12
