EVF Power Electronic Circular Pipe Bolted Type DC High Voltage Fast Acting HRC Fuse Link

EVF150V Bolt Type Fast Acting DC Fuse Link

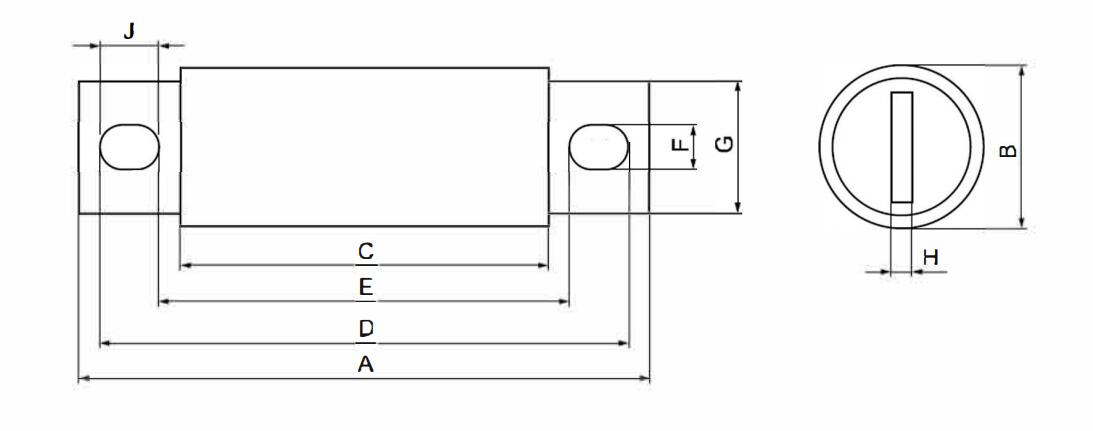

Model	Current(A)	Size(mm)
		A	B士1	C土1	D士1	E士1	F士0.5	G士0.5	H	J士1
EVF150V	70-400	68	25	29	63	41	9	47	4	11
	500-1000	90	38	33	79	43	11	25	6	8

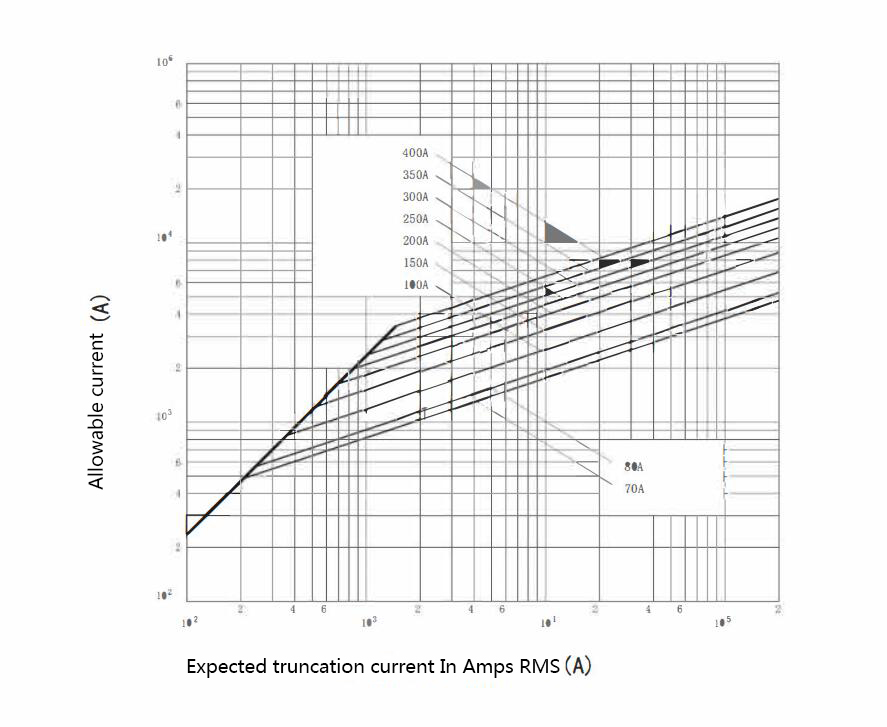

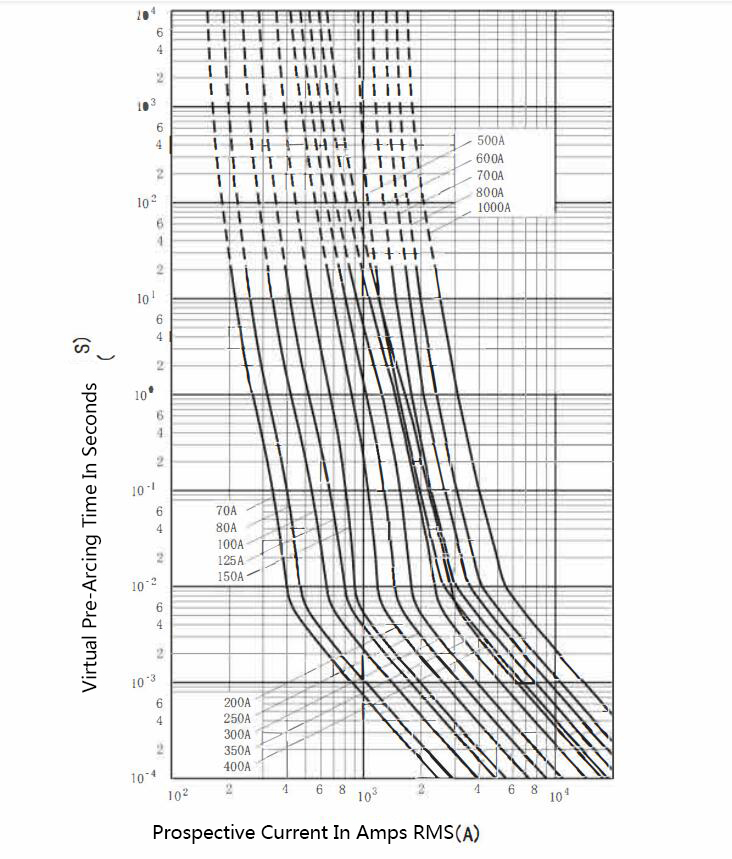

Model	Current(A)	Pre-arc I2t	Breaking I2t(250V)	Rated Power(W)
EVF150V	70	480	4100	7
	80	685	6100	8
	100	1220	12200	9
	125	1900	18200	12
	150	2750	26200	14
	200	4800	45180	18
	250	7500	70200	23
	300	10800	100300	27
	350	15780	140400	31
	400	20400	181000	36
	500	39100	120800	35
	600	46110	140400	47
	700	75150	221000	49
	800	92100	280900	58
	1000	170300	511000	60

EVF250V Bolt Type Fast Acting DC Fuse Link

Model	Current(A)	Size(mm)
		A	B士1	C土1	D士1	E士1	F士0.5	G士0.5	H	J士1
EVF250V	10-60	81	21	41	71	51	9	17	4	11
	70-200	78	31	40	70	47	8.5	25	5	11
	225-600	95	38	38	87	56	11	25	6	18
	700-800	100	53	40	87	50	11	40	6	18

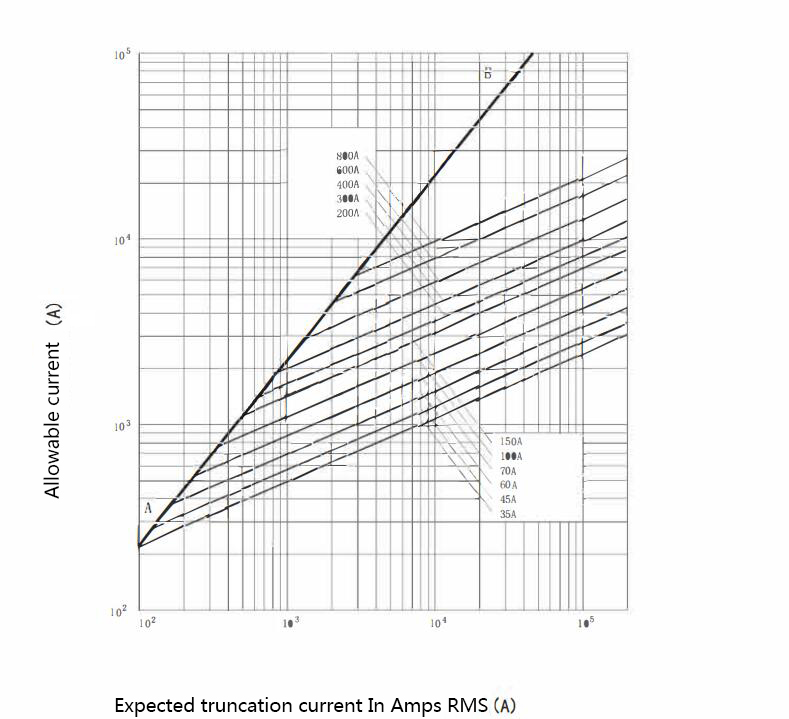

Model	Current(A)	Pre-arc I2t	Breaking I2t(250V)	Rated Power(W)
EVF250V	35	55	235	4.2
	40	65	315	5.2
	45	85	400	5.7
	50	105	530	6
	60	150	760	8.1
	70	335	1420	7.2
	80	435	1880	8.1
	90	580	2480	9
	100	1750	3200	10
	125	1140	4900	12.5
	150	1640	7000	15.7
	175	2180	9370	18.5
	200	2800	12090	22
	225	3220	14770	24
	250	3980	18180	27
	275	4740	21690	31
	300	6030	27390	32
	350	10650	486600	39
	400	14530	66200	44
	450	22140	10110	49
	500	28060	128120	54
	600	41150	188080	62
	700	48860	190120	72
	800	59100	230200	84

EVF500V Bolt Type Fast Acting DC Fuse Link

Model	Current(A)	Size(mm)
		A	B士1	C土1	D士1	E士1	F士0.5	G士0.5	H	J士1
EVF500V	10-60	81	21	41	71	51	9	17	4	10
	70-100	96	25	55	83	65	8.5	17	4	10
	125-200	91	31	53	82	60	9	25	5	11
	225-400	111	38	53	99	63	11	25	6	18
	450-600	111	53	50	98	62	11	40	6	18
	700-800	162	65	53	139	77	13	50	10	30

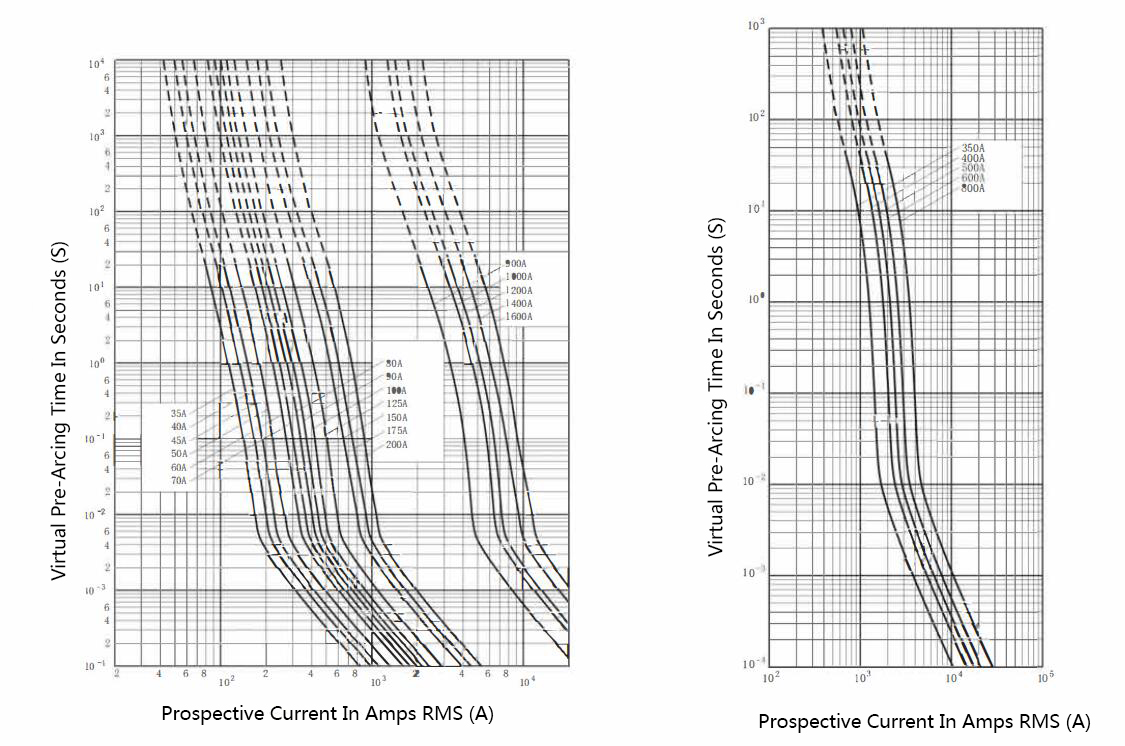

Model	Current(A)	Pre-arc I2t	Breaking I2t(250V)	Rated Power(W)
EVF500V	35	36	145	8
	40	80	310	7.5
	45	110	440	7.5
	50	140	660	7.5
	60	220	880	9.9
	70	225	885	10.6
	80	320	1380	12.7
	90	370	1570	15
	100	490	1960	17
	125	820	3480	25
	150	1130	4560	30
	175	1500	6140	35
	200	1950	8440	40
	225	4680	23100	39
	250	6400	32000	41
	275	8000	40100	46
	300	9900	49600	51
	325	13820	63600	53
	350	14650	72600	58
	400	19400	96500	68
	450	24900	126700	74
	500	29350	148800	84
	600	41550	20550	108
	700	55200	297600	120
	800	76410	408500	129
	1000	92300	449200	145
	1200	122200	599100	180
	1400	200300	100000	210
	1600	290250	139900	230

EVF700V Bolt Type Fast Acting DC Fuse Link

Model	Current(A)	Size(mm)
		A	B士1	C土1	D士1	E士1	F士0.5	G士0.5	H	J士1
EVF700V	35-60	109	22	69	100	79	8.5	17	4	11
	70-100	111	25	53	105	76	8.5	19	5	15
	125-200	130	38	73	119	82	11	25	6	18
	225-400	130	53	70	117	81	11	40	6	18
	450-500	180	65	72	158	95	13	50	10	30
	600	180	65	80	162	110	13	40	10	26

Model	Current(A)	Pre-arc I2t	Breaking I2t(250V)	Rated Power (W)
EVF700V	35	39	180	12
	40	80	340	12
	50	140	630	12
	60	220	990	16
	70	310	2050	18
	80	370	2500	21
	90	420	2800	25
	100	550	3600	27
	125	1820	7400	28
	150	2930	11850	32
	175	4250	16900	35
	200	5600	22300	43
	225	7800	31450	45
	250	10700	42710	48
	300	17800	71500	58
	350	23900	95800	35
	400	31300	125300	78
	450	36600	137500	94
	500	45500	170400	107
	600	66900	250500	122
	700	54300	300600	125
	800	78400	450800	140
