Radial Lead 20D Series 20MM 20D681K 20D241K 20D201K 20D561K 20D751K
Zinc ZOV Metal

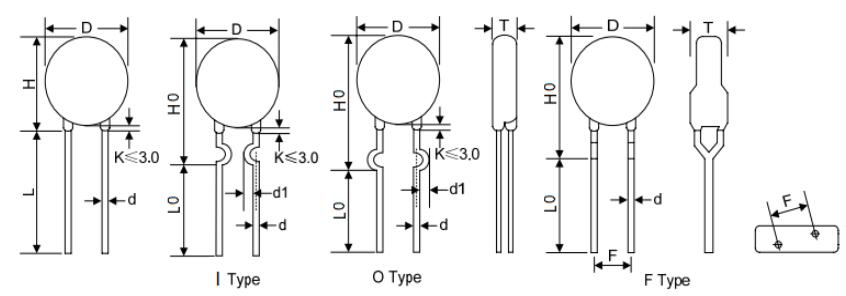

| Table1 |
| Unit:mm |
| Symbol | Dimension |
| D(max.) | 23.0 |
| H(max.) | 26.5 |
| H0(max.) | 28.0 |
| F(±0.8/1.0) | 7.5/10.0 |
| T | Table2 |
| d(±0.05) | 0.8/1.0 |
| d1(±0.4) | 1.4/1.6 |
| L(min.) | 20.0 |
| L0(min.) | 15.0 |
| Epoxy Colour : Green |
| Table2 |
| Unit:mm |
| Model | T | Model | T |
| 180K | 2.96-4.23 | 361K | 3.82-5.38 |
| 220K | 3.06-4.37 | 391K | 3.92-5.55 |
| 270K | 3.17-4.59 | 431K | 4.06-5.77 |
| 330K | 3.30-4.78 | 471K | 4.20-5.99 |
| 390K | 3.25-4.54 | 511K | 4.33-6.21 |
| 470K | 3.38-4.77 | 561K | 4.50-6.48 |
| 560K | 3.53-5.02 | 621K | 4.71-6.81 |
| 680K | 3.73-5.32 | 681K | 4.91-7.14 |
| 820K | 3.05-4.22 | 751K | 5.15-7.53 |
| 101K | 3.15-4.39 | 781K | 5.25-7.69 |
| 121K | 3.25-4.59 | 821K | 5.38-7.91 |
| 151K | 3.11-4.40 | 911K | 5.69-8.17 |
| 181K | 3.21-4.60 | 102K | 6.00-8.64 |
| 201K | 3.30-4.76 | 112K | 6.34-9.16 |
| 221K | 3.35-4.61 | 122K | 6.68-9.69 |
| 241K | 3.42-4.72 | 142K | 7.69-11.26 |
| 271K | 3.52-4.89 | 162K | 8.03-11.78 |
| 301K | 3.62-5.05 | 182K | 8.71-12.83 |
| 331K | 3.72-5.22 | | |
| Electrical characteristics |
ZOV
Part Number | Maximum Allowable Voltage | Varistor voltage | IR3 | @ | Clamping volatge | Maximum Peak Crurrent (8/20μs) | Maximum Ebergt 10/1000μs | Reted Power | Typical Capacitance (Reference) |
| Ac.rm s | DC | V1.0 mA | μA | VC | IP | Standard | High Surge | Standar d | High Surge | (w) | ＠1KHz |
| (V) | (V) | (V) | (V) | (A) | (A) | (JOULE) | (pf) |
| 20D180KP/Z | 11 | 14 | 18(15-21.6) | 50 | 10 | 36 | 20 | 2000/1
000*2 | 3000/2
000*2 | 11 | 13 | 0.2 | 28500 |
| 20D220KP/Z | 14 | 18 | 22(19.5-26) | 10 | 43 | 14 | 16 | 18500 |
| 20D270KP/Z | 17 | 22 | 27(24-31) | 10 | 53 | 16 | 19 | 13000 |
| 20D330KP/Z | 20 | 26 | 33(29.5-36.5) | 10 | 65 | 23 | 24 | 11500 |
| 20D390KP/Z | 25 | 31 | 39(35-43) | 15 | 77 | 26 | 28 | 8500 |
| 20D470KP/Z | 30 | 38 | 47(42-52) | 15 | 93 | 30 | 34 | 7400 |
| 20D560KP/Z | 35 | 45 | 56(50-62) | 15 | 110 | 38 | 44 | 6500 |
| 20D680KP/Z | 40 | 56 | 68(61-75) | 15 | 135 | 41 | 49 | 5800 |
| 20D820KP/Z | 50 | 65 | 82(74-90) | 24 | 28 | 135 | 100 | 6500/4
500*2 | 10000/
6500*2 | 45 | 56 | 1 | 4900 |
| 20D101KP/Z | 60 | 85 | 100(90-110) | 28 | 165 | 50 | 70 | 4000 |
| 20D121KP/Z | 75 | 100 | 120(108-132) | 28 | 200 | 55 | 85 | 3300 |
| 20D151KP/Z | 95 | 125 | 150(135-165) | 28 | 250 | 70 | 106 | 2700 |
| 20D181KP/Z | 115 | 150 | 180(162-198) | 38 | 300 | 85 | 130 | 2200 |
| 20D201KP/Z | 130 | 170 | 200(185-225) | 38 | 340 | 95 | 140 | 2000 |
| 20D221KP/Z | 140 | 180 | 220(198-242) | 38 | 360 | 100 | 155 | 1800 |
| 20D241KP/Z | 150 | 200 | 240(216-264) | 38 | 395 | 108 | 168 | 1650 |
| 20D271KP/Z | 175 | 225 | 270(243-297) | 38 | 455 | 127 | 190 | 1500 |
| 20D301KP/Z | 190 | 250 | 300(270-330) | 38 | 500 | 136 | 210 | 1300 |
| 20D331KP/Z | 210 | 275 | 330(297-363) | 38 | 550 | 150 | 228 | 1200 |
| 20D361KP/Z | 230 | 300 | 360(324-396) | 38 | 595 | 163 | 255 | 1100 |
| 20D391KP/Z | 250 | 320 | 390(351-429) | 38 | 650 | 180 | 275 | 1000 |
| 20D431KP/Z | 275 | 350 | 430(387-473) | 38 | 710 | 190 | 305 | 930 |
| 20D471KP/Z | 300 | 385 | 470(423-517) | 38 | 775 | 204 | 350 | 850 |
| 20D511KP/Z | 320 | 415 | 510(459-561) | 38 | 845 | 210 | 360 | 780 |
| 20D561KP/Z | 350 | 460 | 560(504-616) | 38 | 925 | 215 | 380 | 710 |
| 20D621KP/Z | 385 | 505 | 620(558-682) | 35 | 1025 | 224 | 390 | 650 |
| 20D681KP/Z | 420 | 560 | 680(612-748) | 35 | 1120 | 230 | 400 | 600 |
| 20D751KP/Z | 460 | 615 | 750(675-825) | 35 | 1240 | 255 | 420 | 530 |
| 20D781KP/Z | 485 | 640 | 780(702-858) | 35 | 1290 | 265 | 440 | 510 |
| 20D821KP/Z | 510 | 670 | 820(738-902) | 30 | 1355 | 282 | 460 | 500 |
| 20D911KP/Z | 550 | 745 | 910(819-1001) | 30 | 1500 | 310 | 510 | 440 |
| 20D102KP/Z | 625 | 825 | 1000(900-1100) | 30 | 1650 | 342 | 565 | 400 |
| 20D112KP/Z | 680 | 895 | 1100(990-1210) | 30 | 1815 | 383 | 620 | 360 |
| 20D122KP/Z | 750 | 990 | 1200(1080-1320) | 30 | 1980 | 408 | 660 | 350 |
| 20D142KP/Z | 880 | 1140 | 1400(1260-1540) | 30 | 2310 | 532 | 784 | 340 |
| 20D162KP/Z | 1000 | 1280 | 1600(1440-1760) | 30 | 2640 | 606 | 896 | 330 |
| 20D182KP/Z | 1100 | 1465 | 1800(1620-1980) | 30 | 2970 | 625 | 990 | 320 |
ELETRICAL PARAMETER
| Max. Allowable Voltage |  Reference p2* | At 1.0mA DC |
| Varistor Voltage(Test Time For 30ms) | V0.1mA □ V1mA ■ |
| Rated Wattage | |
| Max. Clamping Voltage | Test Current Waveform 8/20μs |
| Withstanding Surge Current | Test Current Waveform 8/20μs |
| Max. Energy | Test Current Waveform 10/1000μs |
| Typical Capacitance | @1KHz |
| Leakage Current | At 80% of Varistor Voltage |
| Nonlinear Exponent (α) |  |
| Temperature Coefficient of Varistor Voltage |
-0.05≤Tc≤0.05(％
℃) |  V1mA@85℃-V1mA@25℃ × 1 × 100%(%/℃) V1mA@25℃ 60 |
  V1mA@-40℃-V1mA@25℃ × 1 × 100%(%/℃) V1mA@25℃ 65 |
| Impulse Life | ≦±10%(V1mA) | Test Current Waveform 8/20μs |
MATERIAL LIST
| Material Chart RoHs | Item | Composition | Manufacturer |
| Coating | Epoxy Resin | Made in China, and in line with the UL 94-V0 testing, meet the
environmental requirements |
| Lead | Cp/Cu wire | Made in China, meet the environmental requirements |
| Electrode | Silver | Made in China, meet the environmental requirements |
| Disk | Zinc Oxide | Made in China, meet the environmental requirements |
| Solder | Sn:96.5%CU 0.5%Ag3.0% | Made in China, meet the environmental requirements |
MECHENICAL REQUIREMENTS
| Tensile of Terminations | No Outstanding Damage | 2.0/1.0Kgf; 10Sec. |
| Bending of Terminations | No Outstanding Damage | 1.0/0.5Kgf；90°,3 Times |
| Vibration | No Outstanding Damage | Freq:10-55hz;Amp:0.75mm,1Min
. |
| Solderability | Min. 95% of The Terminal Should Be Covered With
Solder Uniformly | Solder Temp:245±5℃ Immersed Time: ≤5Sec. |
| Resistance of soldering heat | △ V1mA/V1mA
≦±5% | Solder Temp: 260±5℃ Immersed Time: 10±1Sec. |
ENVIRONMENTAL REQUIREMENTS
| High Temperature Storage | △ V1mA/V1mA
≦±5% | Ambient Temp: 125±2℃ Duration:1000h |
| Low Temperature Storage | △ V1mA/V1mA
≦±5% | Ambient Temp: -40±2℃ Duration:1000h |
| High Humidity Storage/Damp Heat | △ V1mA/V1mA
≦±5% | Ambient Temp: 40±2℃ 90-95%
R.H. Duration:1000h |
| Temperature Cycle | △ V1mA/V1mA
≦±5% | Step | Temperature
(℃) | Period
(min) |
| 1 | -40±3 | 30 ±3 |
| 2 | Room Temp | 15 ±3 |
| 3 | 85±3 | 30 ±3 |
| 4 | Room Temp | 15 ±3 |
| High Temperature Load | △ V1mA/V1mA
≦±10% | Ambient temp:85±2℃ Duration:1000h Load: MAX. Allowable Voltage |
| High Humidity Load | △ V1mA/V1mA
≦±10% | Ambient Temp: 40±2℃
90-95%R.H.Duration:1000H
Load: MAX. Allowable Voltage |
| Operating Temperature Range | -40℃ ~ +85℃ |
| Storage Temperature Range | -40℃ ~ +125℃ |
MARKING CODE
TAPING DIMENSIONS
| Symbol | Dimension (mm) |
| P | 25.4±1.0 |
| P0 | 12.7±1.0 |
| P1 | 8.95/7.7±0.7 |
| P2 | 12.7±1.3 |
| F | 7.5/10.0±0.8 |
| h | 0±4 |
| W | 18.0±1.0 |
| W0 | 12.0±1.0 |
| W1 | 9.0±0.5 |
| W2 | 3.0max |
| H | 20.0±2.0 |
| I | 1.0max |
| D0 | 4.0±0.2 |
| t | 0.6±0.3 |
| B | 45max |
QUANTITY
