10X85mm High Volatge Photovoltaic Solar PV Long Cartridge Type HRC Cylindrical 1500V DC 10X85 Fuse Link

Long Cartridge Type Solar PV Fuse

Specifications

Rated Current:1A,2A,3A,3.5A,4A,5A,6A,8A,10A,12A,15A,16A,20A,25A,30A
Rated Voltage: 1500 V DC
Rated breaking capacity:DC 33kA

Operating class gPV and UL PV fuse link for Solar protection

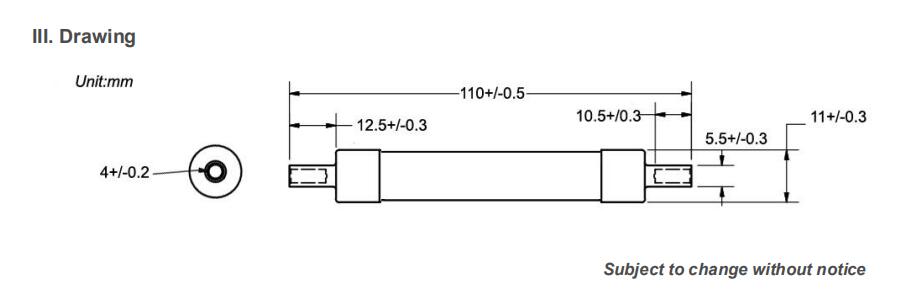

Fuse size: 10x85mm

Time Constant: ≤1ms

Product Description
Solar PV fuses are for protecting and isolating photovoltaic strings. These fuse links are capable of interrupting low overcurrent associated with faulted photovoltaic string arrays(reverse current,multi array fault).

Features
1. 1500Vdc 1500Vdc fuse specially used for photovoltaic applications.

2. 10x85mm Standard tube dimension 10x85mm
3. Engineering ceramic tube, nickel plated copper cap
4. RoHS compliant, Lead free and halogen free

Applications
•PV combiner/juction boxes
•Inverters
•Battery Charge Controllers

Electrical Characteristics

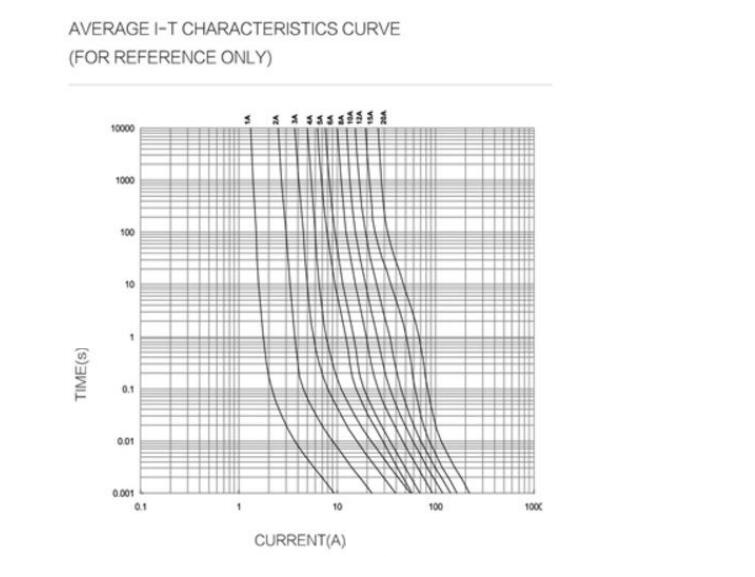

I-T Curve
