40D201K-162K 240V-1600V VDR Voltage Dependent Resistor High Voltage Resistor

Features

• Wide operating voltage (V1mA) range from 240V~1600V

• Fast responding to transient over-voltage.

• Large absorbing transient energy capability.

• Low clamping ratio and no following-on current.

General Information

• Surge protection in consumer electronics

• Surge protection in industrial electronics

• Relay and electromagnetic valve surge absorption

• Transistor, diode, IC, thyristor or triac semiconductor protection

• Surge protection in electronic home appliances, gas and petroleum appliances

General Characteristics

• Body: Epoxy resin

• Leads: Cu wire

• Operating Temperature: -40ºC to +85ºC

• Storage Temperature: -40 ºC to +125ºC

• Axial Devices: Tin Plated

ELETRICAL PARAMETER

Max. Allowable Voltage

Reference p2*

At 1.0mA DC

Varistor Voltage(Test Time For 30ms)

V0.1mA □ V1mA ■

Rated Wattage

Max. Clamping Voltage

Test Current Waveform 8/20μs

Withstanding Surge Current

Test Current Waveform 8/20μs

Max. Energy

Test Current Waveform 10/1000μs

Typical Capacitance

@1KHz

Leakage Current

At 80% of Varistor Voltage

Nonlinear Exponent (α)

Impulse Life

≦±10%(V1mA)

Test Current Waveform 8/20μs

MATERIAL LIST

MECHENICAL REQUIREMENTS

ENVIRONMENTAL REQUIREMENTS

MARKING CODE

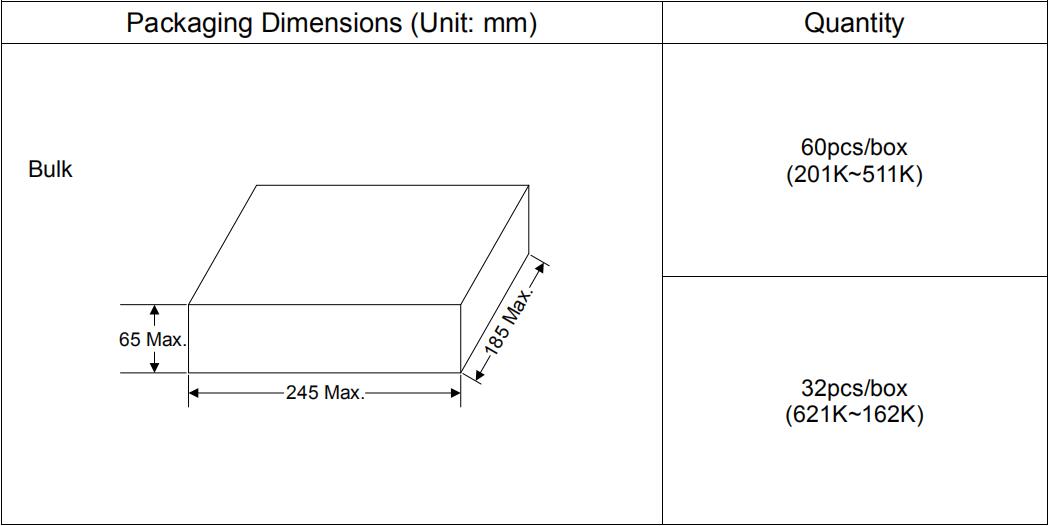

QUANTITY
