SMD 0604 0806 1206 1210 1812 2220 Metal Oxide Varistor Chip
Varistor for Power-lines Protection

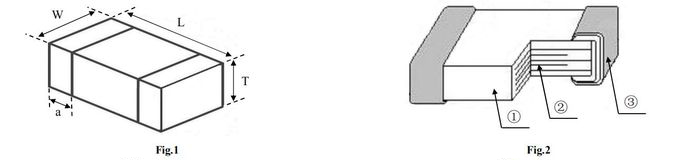

| Type | L(mm) | W(mm) | T(mm) | a(mm) |
| 0604 | 1.65 +0.15/-0.15 | 1.05 +0.15/-0.15 | 1.20 Max. | 0.25±0.15 |
| 0806 | 2.2 +0.2/-0.2 | 1.8 +0.2/-0.2 | 2.0 Max. | 0.50±0.30 |
| 1206 | 3.2 +0.6/-0.4 | 1.8 +0.2/-0.2 | 2.0 Max. | 0.50±0.30 |
| 1210 | 3.2 +0.6/-0.4 | 2.5 +0.4/-0.2 | 2.6 Max. | 0.50±0.30 |
| 1812 | 4.5 +0.6/-0.2 | 3.2 +0.5/-0.2 | 3.5 Max. | 0.60±0.30 |
| 2220 | 6.0 +0.7/-0.3 | 5.3 +0.5/-0.3 | 3.6 Max. | 0.60±0.30 |
| Part | ① | ② | ③ |
Component |
ZnO Semiconductor Ceramics for
Chip Varistor |
(Ag or Ag-Pd) Internal Electrode (Ag or Ag-Pd) |
(Ag/Ni/Sn ) Terminal Electrode (Ag/Ni/Sn three layers) |
Product Identification(Part Number)
| ② inch (mm) External Dimension L×W |
| 1206 | 0.12×0.06 (3.2×1.6) |
| 1812 | 0.18×0.12 (4.5×3.2) |
| ③ Application Code |
| P | Power-lines Protection |
| ④ Varistor Voltage @ 1mA |
| 241 | 240V |
| ⑤ Tolerance of Varistor Voltage |
| K | ±10% |
| ⑦ Max. Surge Current @8/20μs |
| RA | 2.5KV Max. Ring Wave Voltage |
| 201 | 200A |
SMD Varistor 0402
The semiconductor ceramic electronic component zinc oxide varistor
is the main raw material for the manufacture of zinc oxide, the
resistance value changes depending on the applied voltage and the
non-linear change, since the resistance value of the voltage change
is very sensitive, said varistor or projections wave absorber.
Part No.
|
Max. Working Voltage
| Varistor Voltage @1mA DC |
Max. Clamping Voltage (8/20μs)
| Max. Ring Wave Voltage (@30Ω) | Operation Ambient Temperature |
| VAC(V) | VDC(V) | V1mA(V) | Vc(V) | Ic(A) | VRing wave |
| QV0604P271KTRA | 175 | 225 | 270±10% | 450 | 1 | 2.5KV | -40～+125℃ |
SMD Varistor 1206
1. Chip Varistor Applications: protection components and circuitry
to prevent ESD power supply, control and signal lines generated for
ICCMOS and MOSFET online overvoltage protection in many areas can
replace surface mount TVS zener diodes, used to assist a variety of
end products to achieve electromagnetic compatibility
2. Chip Varistor specific application: laptop computers, digital
cameras, handheld computers, mobile phones, MP3, motherboards,
routers, automotive electronics, LCD module, VoIP, microphone
headset, etc.
Part No. |
Max. Working Voltage | Varistor Voltage @1mA DC |
Max. Clamping Voltage (8/20μs) | Peak Current (8/20μs) | Operation Ambient Temperature |
| VAC(V) | VDC(V) | V1mA(V) | Vc(V) | Ic(A) | Ip(A) |
| QV0806P241KT201 | 150 | 200 | 240±10% | 395 | 1 | 200 | -40～+125℃ |
| QV0806P271KT201 | 175 | 225 | 270±10% | 450 | 1 | 200 | -40～+125℃ |
| QV0806P431KT101 | 275 | 350 | 430±10% | 705 | 1 | 100 | -40～+125℃ |
| QV0806P471KT101 | 300 | 385 | 470±10% | 775 | 1 | 100 | -40～+125℃ |
| QV1206P271KT301 | 175 | 225 | 270±10% | 450 | 1 | 300 | -40～+125℃ |
| QV1206P431KT151 | 275 | 350 | 430±10% | 705 | 1 | 150 | -40～+125℃ |
| QV1206P471KT101 | 300 | 385 | 470±10% | 775 | 1 | 100 | -40～+125℃ |
| QV1206P511KT101 | 320 | 410 | 510±10% | 850 | 1 | 100 | -40～+125℃ |
| QV1210P471KT401 | 300 | 385 | 470±10% | 775 | 2.5 | 400 | -40～+125℃ |
| QV1210P511KT301 | 320 | 410 | 510±10% | 850 | 2.5 | 300 | -40～+125℃ |
| QV1812P471KT601 | 300 | 385 | 470±10% | 775 | 5 | 600 | -40～+125℃ |
| QV2220P471KT801 | 300 | 385 | 470±10% | 775 | 10 | 800 | -40～+125℃ |

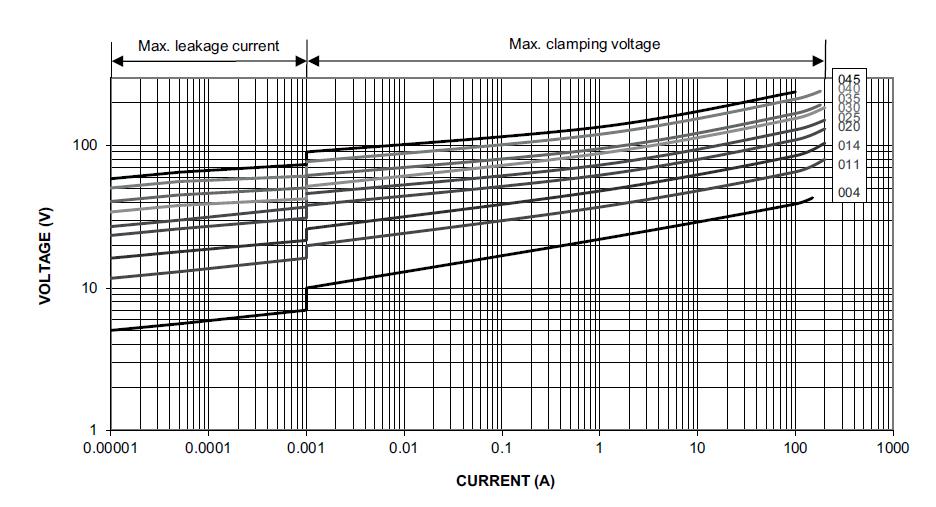

Features
Small size, fit for high density PCB
Quick response, high precision
Good solder ability
Glass surface protect, High structural stability and reliability.
Applications
Equipment related to mobileommunication TCXOs( temperature
compensated type quartz oscillator).
RF circuits (power amp circuits. Temperature monitoring circuits),
LCD panel.
Temperature compensated crystal oscillator, which is the key device
for mobile phones.
Temperature sensor for CPU
IC and semiconductor protecting
Player driver, telecom exchanger, etc.
| Type | A0
(±0.2) | B0
(±0.2) | K0
(±0.2) | T Max. | W
(±0.3) | P0
(±0.2) | P
(±0.2) | P2
(±0.2) |
| 0604 | 1.3 | 2.1 | 1.3 | 0.30 | 8.0 | 4.0 | 4.0 | 2.0 |
| 0806 | 2.1 | 2.5 | 2.1 | 0.30 | 8.0 | 4.0 | 4.0 | 2.0 |
| 1206 | 2.1 | 3.8 | 2.1 | 0.30 | 8.0 | 4.0 | 4.0 | 2.0 |
| 1210 | 3.1 | 3.8 | 2.8 | 0.30 | 8.0 | 4.0 | 4.0 | 2.0 |
| 1812 | 3.8 | 5.2 | 3.6 | 0.30 | 12.0 | 4.0 | 8.0 | 2.0 |
| 2220 | 6.9 | 6.8 | 3.8 | 0.30 | 12.0 | 4.0 | 8.0 | 2.0 |
Type |
Spec. | Dimensions(mm) |
| A | W | C |
| 0604 | 7" | 178±2 | 8.4+2.0/-0.0 | 58±2 |
| 0806 | 7" | 178±2 | 8.4+2.0/-0.0 | 58±2 |
| 1206 | 7" | 178±2 | 8.4+2.0/-0.0 | 58±2 |
| 1210 | 7" | 178±2 | 8.4+2.0/-0.0 | 58±2 |
| 1812 | 7" | 178±2 | 12.4+2.0/-0.0 | 58±2 |
| 2220 | 7" | 178±2 | 12.4+2.0/-0.0 | 58±2 |
Type |
Tape |
Quantity(pcs/reel) |
| 0604 |
Embossed Tape | 3K |
| 0806 | 2K |
| 1206 | 2K |
| 1210 | 1K |
| 1812 | 500 |
| 2220 | 500 |

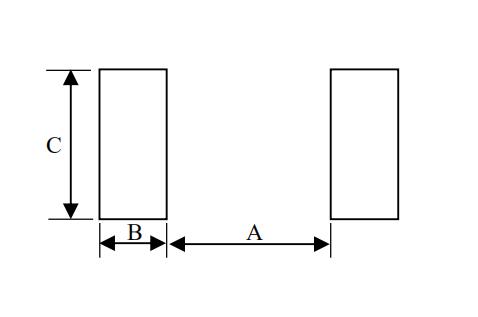

| Type | A(mm) | B(mm) | C(mm) |
| 0604 | 1.0~1.3 | 0.9~1.2 | 1.1~1.4 |
| 0806 | 1.2~1.6 | 0.8~1.2 | 1.6~2.2 |
| 1206 | 1.8~2.5 | 1.2~1.8 | 1.5~2.0 |
| 1210 | 1.8~2.5 | 1.3~2.0 | 2.2~3.0 |
| 1812 | 2.5~3.3 | 1.5~2.2 | 3.0~3.8 |
| 2220 | 4.1~4.9 | 1.5~2.2 | 5.7~6.4 |
Recommended Soldering Profile
