Time Lag Type 2410 Surface Mount Fuses UL248-1 Standards Ceramic Body

Ask Lasest Price
Brand Name :	Tian Rui
Model Number :	2410 SCT
Certification :	UR CUR
Price :	Negotiable
Payment Terms :	D/P, T/T,Paypal, Western Union
Supply Ability :	1000000PCS/Month
Delivery Time :	5-7 Days

Add to Cart

Product Details
Company Profile

Time Lag Type 2410 Surface Mount Fuses UL248-1 Standards Ceramic Body

2410 Disposable Time Delay Slow Blow Acting Time-Lag Ceramic SMD Fuses Surface Mount Chip Fuse

Rated Voltage

Agency

Ampere Range

Agency File Number

125V/250V/300V

50mA ~ 10A

E468765

C-UR

50mA ~ 10A

E468765

Scope of Application

This product is suitable for various kinds of electronic devices’ circuit over current protection. Widely
used in industrial of Lighting, Power supply and Adapter applications, etc.

Material Details

NO.	Part Name	Material
①	Cap	Ag Plated Brass
②	Body	Ceramic
③	Fuse element	Alloy
④	Filled	None

Product Characteristic

Rated	Rated voltage	Maximun voltage	Breaking capacity	I2T	UR
current		drop(mv)		A2s
SGT 50mA		5000		0.01	
SGT 63mA		4400		0.02	
SGT 100mA		3500		0.04	
SGT 125mA		2500		0.06	
SGT 160mA		2200		0.08	
SGT 200mA		1800		0.09	
SGT 250mA		1400		0.11	
SGT 315mA		1300		0.14	
SGT 400mA		1000		0.26	
SGT 500mA	125V(SGT)	900		0.5	
SGT 630mA		800		0.8	
	250V(SCT)
SGT 800mA	300V(SMT)	600	125V@100A ac	1.5	
SGT 1.0A	125V(50mA~15A)	500	50A @250V/300Vac	2.3	
SGT 1.25A	250V(50mA ~10A)	400		3.2	
SGT 1.6A	300V(50mA ~10A)	300		5.9	
SGT 2.0A		300		7.8	
SGT 2.5A		300		10	
SGT 3.15A		300		23	
SGT 4.0A		300		39	
SGT 5.0A		300		58	
SGT 6.3A		300		95	
SGT 8.0A		220		150	
SGT 10.0A		220		210	
SGT 15A		200		320	

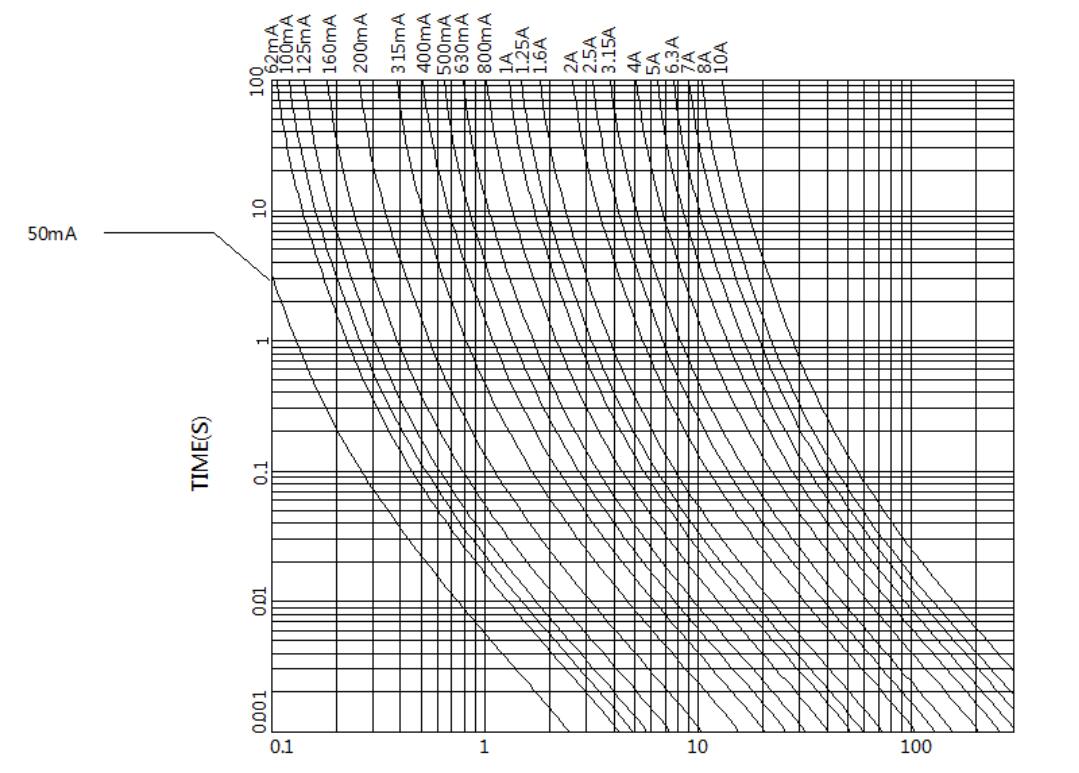

Opning Time

% of Ampere Rating	Opening Time(UL)
100%	>4 Hours
200%	<120 sec

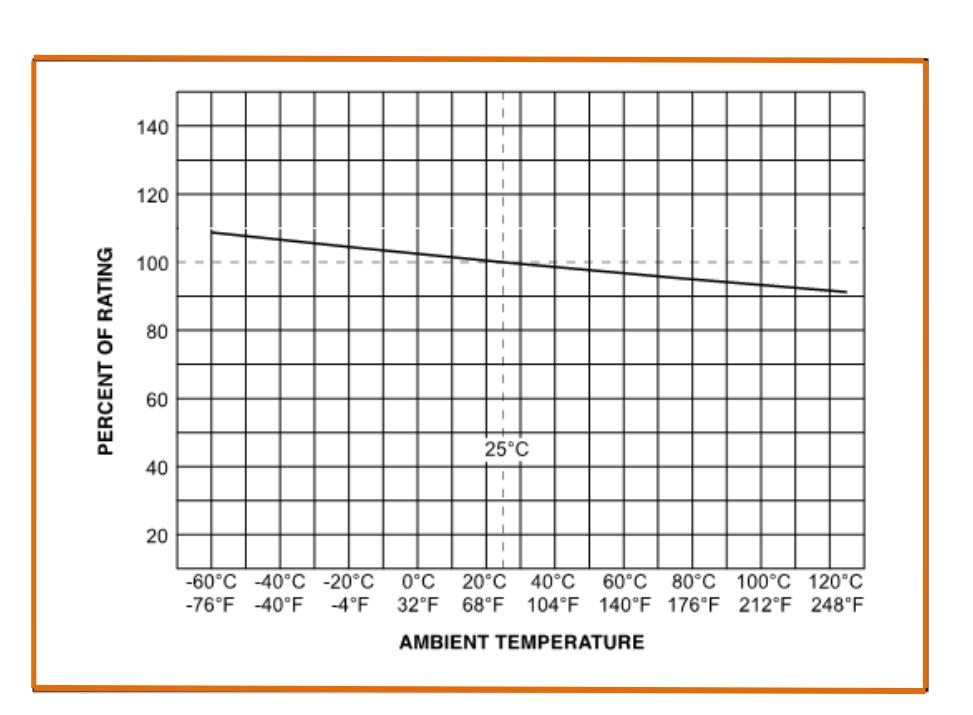

When choosing the fuse's specification, if the operating environmental temperature beyond the scope from 20~30℃, engineer should consider the environmental temperature's affection to fuses. Please refer: Temperature Rerating Curve:

Propose installation way as following picture

/	mm	inch
L	8.7	0.343
H	2.9	0.114
G	3.0	0.118

Recommended Soldering Parameters

Reflow Condition

Pb-Free assembly

Preheating

-Temperature Min Ts(min)

150℃

-Temperature Max
Ts(man)

200℃

-Time Max

120 secs

Soldering

-Temperature
(TL)(Liquidus)

260℃

-Time Max (TL)

60 secs

-Temperature (TP)

Max 260℃

-Time Max (TP)

10 secs

Contact Details:

Andy Wu

Email: andy@tianrui-fuse.com.cn

MP/Whatsapp: +86 13532772961

Wechat: HFeng0805

Skype: andywutechrich

QQ: 969828363
