    Electronic Components 1206 Surface Mount Fuses Miniature Chipe Type

    1206 Electronic Components Miniature Chipe Type Slow Blow Time-lag Time-Lag SMD Surface Mount Fuses


    Electronic Components 1206 Surface Mount Fuses Miniature Chipe Type


    Electrical Characteristcs
    Rated Current% of AmpRatingOpening Time
    250mA~10A100%4hours, min
    1A~3A200%1.0s - 60 s
    1A~5A250%5.0s max
    1A~5A300%0.1s - 3.0 s
    250mA~750mA350%5.0s max
    6A~10A350%5.0s max
    250mA~10A1000%0.2ms - 20.0 ms

    Specification

    Part No.Rated VoltageRated CurrentBreaking CapacityTypical Cold Resistance (mOhms)²Typical Voltage Drop (mV)Typical Pre-Arcing I²t
    (A²Sec)³
    Marking
    12.100.0.25

    72Vdc

    125Vdc

    63Vdc

    32Vdc

    24Vdc

    250mA

    100A@

    72Vdc 125 Vdc

    100A@

    63Vdc

    100A@

    32Vdc 300A@

    24Vdc

    370013500.00038I
    12.100.0.375375mA18507200.00077E
    12.100.0.5500mA10506900.0019B
    12.100.0.75750mA7756800.15C
    12.100.11A4855500.18H
    12.100.1.51.5A2183550.4K
    12.100.22A1333101.1N
    12.100.2.52.5A792301.7O
    12.100.33A491852.2P
    12.100.3.53.5A-371752.7R
    12.100.44A331603.2S
    12.100.4.54.5A281504.2X
    12.100.55A221356T
    12.100.6-6A-15.514012F
    12.100.77A11.512018J
    12.100.88A8.010018V
    12.100.1010A7.09030U

    Description


    1206 SLOW BLOW SMD FUSE
    12.100 Series are the fuses set the industry standard for performance, reliability
    and quality. The solder-free design provides excellent on-off and temperature
    cycling characteristics during use and also makes our SMD fuses more heat and
    shock tolerant than typical subminiature fuses.


    Features


    Rapid interruption of excessive current
    Compatible with reflow and wave solder
    Ceramic and glass construction
    One time positive disconnect
    Lead free and Halogen free material


    Applicatons


    Secondary circuit protection

    Laptop, notebook, netbook

    Flat panel displays
    High definition television(HDTV)

    LCD/LED backlighting Computers and peripherals

    Gaming console systems

    Handheld/portable equipment

    Mobile device charges

    Automotive
    Central body control module
    Heating ventilation and air conditioning

    Doors,window lift and seat control

    Digital instrument cluster
    In-vehicle infotainment and navigation

    Electric pumps,motor control

    Powertrain control module(PCU)/Engine
    Transimission Control Unit(TCU)



    Installation Recommendations

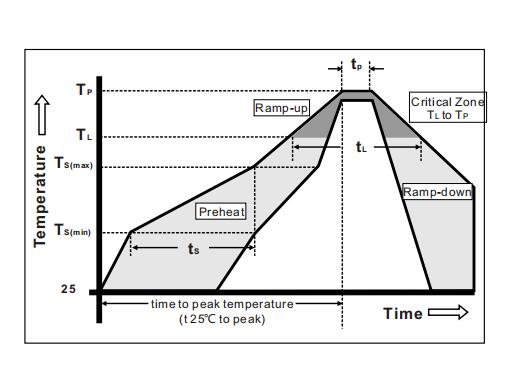

    Reflow ConditonPb-free assembly
    Pre Heat- Temperature Min (Ts(min))150℃
    - Temperature Max (Ts(max))200℃
    - Time (Min to Max) (ts)60 – 120 seconds
    Average Ramp-up Rate (Liquidus Temp
    (TL) to peak)
    3℃/second max.
    TS(max) to TL - Ramp-up Rate5℃/second max.
    Reflow- Temperature (TL) (Liquidus)
    - Temperature (tL)
    217℃
    60 – 150 seconds
    Peak Temperature (TP)260+0/-5℃
    Time within 5°C of actual peak Temperature (tp)30 seconds
    Ramp-down Rate
    Time 25°C to peak Temperature (TP)
    Do not exceed
    6°C/second max
    8 minutes max. 260°C

    Product Characteristics
    MaterialsBody: Ceramic
    Terminatons: Silver over-plated with tin
    Element: Alloy(Ag,Cu,Zn)
    Cover Coat:Glass
    Operatng Temperature-55°C to 125°C
    Consult temperature rerating curve chart.
    Thermal Shock300 cycles -55°C to 125°C
    HumidityMIL-STD-202F, Method 103B,Condition D
    VibratonPer MIL-STD-202F, Method 201A
    Insulaton Resistance (Afer Opening)Greater than 10,000 ohms
    Resistance to Soldering HeatMIL-STD-202G,Method 210F, Condition D

    Packaging
    3,000 pieces of fuses in plastic or paper taper
    SymbolAoBoKoPoP1P2
    Spec1.80±0.103.50±0.101.27±0.104.00±0.104.00±0.102.00±0.10
    SymbolEFDoD1WT
    Spec1.75±0.103.50±0.101.50±0.101.00(Max)8.00±0.100.23±0.02


    Contact Details:

    Andy Wu

    Email: andy@tianrui-fuse.com.cn

    MP/Whatsapp: +86 13532772961

    Wechat: HFeng0805

    Skype: andywutechrich

    QQ: 969828363
