1032 1031 SMD Surface Mount Fuses

Ask Lasest Price
Brand Name :	Tian Rui
Model Number :	1032 1031
Certification :	UL
Price :	Negotiable
Payment Terms :	D/P, T/T,Paypal, Western Union
Supply Ability :	1000000PCS/Month
Delivery Time :	5-7 Days

Add to Cart

Product Details
Company Profile

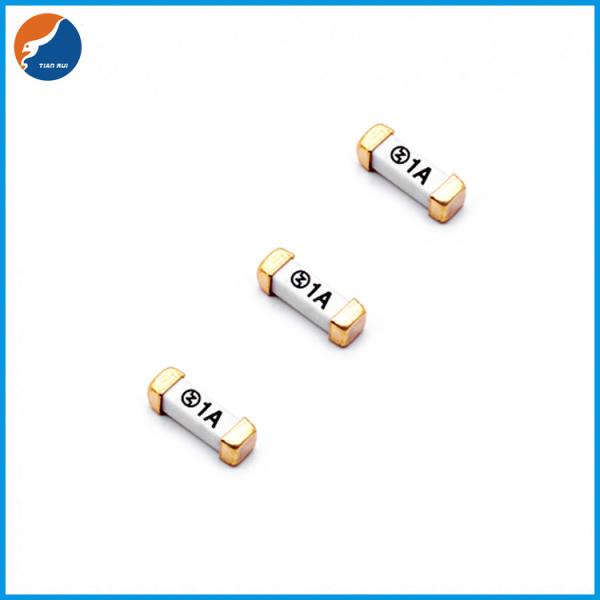

1032 1031 SMD Surface Mount Fuses

1032 1031 LCD Backlight Inverter System Telecom Square Type Slow Blow Fast Acting SMD Fuses

SCOPE

Notebook PC

LCD/PDF TV

LCD/PDP panel

LCD monitor

LCD backlight inverter

Portable DVE player

Power supply

Networking

PC server

Cooling fan system

Storage system

Telecom system

Wireless base station

White goods

Game console

Automotive

Battery charging circuit

Office Automation

Industrial equipment

Medical equipment

NO.

Component

Material

Quantity

①

Cap

Silver Plated Brass

②

Body

Ceramic tube

PRODUCT CHARACTERISTICS

No.

Item

Contain

Reference standard

Insulation Resistance

10,000 ohms minimum

MIL-STD-202G, Method 302 Test ConditionA

Solderability

T=235℃±5 ℃, t=5+0/-0.5s,
Cover≧95%

MIL-STD-202G, Method 208H

Resistance to Soldering Heat

10 sec at 260℃

MIL-STD-202G, Method 210F Test
Condition B

Thermal Shock

5 cycles, -65℃ to 125℃,
15minutes @each extreme

MIL-STD-202G, Method 107G Test
Condition B

Mechanical Shock

100G’s peak for 6 milliseconds, 3 cycles

MIL-STD-202G, Method 213B Test 1

Vibration

0.03” amplitude, 10-55 Hz in 1 min. 2hrs each XYZ=6hrs

MIL-STD-202G, Method 201A

Moisture Resistance

10 cycles

MIL-STD-202G, Method 106G

Salt spray

48hrs

MIL-STD-202G, Method 101E Test
Condition B

ELECTRICAL CHARACTERISTICS

Ampere Rating

% of Ampere Rating

Opening Time

200mA – 10A

100%

4 hours, Min .

250%

120s, Max .

Reflow Condition

Pb-Free Assembly

Preheating

-Temperature Min Ts(min)

150℃

-Temperature Max Ts(man)

200℃

-Time Max

120 secs

Soldering

-Temperature (TL)(Liquidus)

260℃

-Time Max (TL)

60 secs

-Temperature (TP)

Max260℃

-Time Max (TP)

10 secs

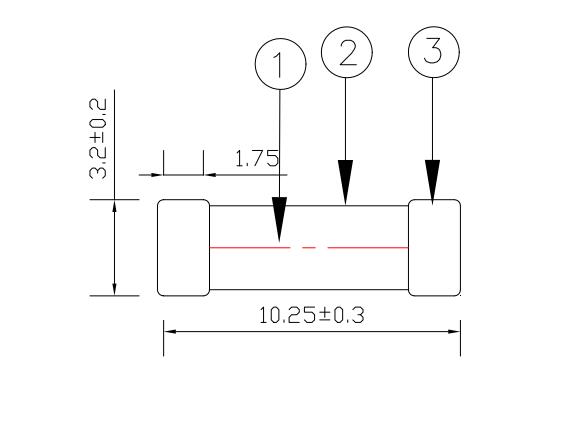

Material Details

NO.	Part Name	Material
1	Element	Silver Alloy .
2	Body .	Body
3	Cap	Brass gold plated

Product Characteristic

Rated current

Rated voltage

Breaking capacity

Safety Aproval

50mA

●

62mA

●

80mA

●

100mA

●

125mA

●

160mA

●

200mA

●

250mA

●

315mA

●

400mA

●

500mA

100A@125V

●

630mA

125V/250V /350

100A@250V

●

800mA

V/400Vac

50A@350V

●

1.0A

50A@400V

●

1.25A

●

1.6A

●

2.0A

●

2.5A

●

3.15A

●

4.0A

●

5.0A

●

6.3A

●

8.0A

●

10.0A

●

Opening Time

% of Ampere Rating	Opening Time(UL)
100%	T>4hrs
250%	T<120s

Profile Featuren	Pb-Free assembly
Average Ramp-up Rate (Tsmax to Tp)	3 °C /sec Max.
Preheat Temperature Min Ts(min) Temperature Max Ts(max) Temperature Max Ts(max)	150°C 200°C 60-120 sec
Peak Temperature(Tp)	250°C
Time within 5°C of actual Peak Temperature(Tp)	5 sec
Melting tin time(TL)	20sec~4Osec
Ramp-down Rate	6°C/sec Max .
Time25 °Cto peak Temperature	8minutes Max
