Polymer Positive Temperature Coefficient Polyswitch Resettable
Devices 600V PPTC Resettable Thermal Fuse PTC Fuse
GR600 Series Resettable PTC Fuse
Application: communication products and data communication
equipment
Features: Low operating current, radial lead package
Applicable to 600VAC circuit protection
Operating current: 0.11A~0.16A
Interrupt voltage: 600V DC
Operating temperature range: -40℃ to 85℃
Lead-free, halogen-free environmental protection products, in line
with RoHS standards and REACH standards
Safety certification: UL, CUL, TUV, CQC
Introduction of 600V Resettable Fuse
TR600 series resettable fuse (TRPTC) for program-controlled
switches, patch panels designed and manufactured over protection
device, but can also used in transformers, security equipment,
lamps, ballasts, meters, telephone lines and other fields.
Features of 600V Resettable PTC Fuse
◆ RoHS Compliant and Lead-free
◆ Radial leaded Devices
◆ Cured,flame retardant epoxy polymer insulating material meets
UL94V-0 requirements
Application of 600V Resettable PPTC Fuse
• Over-current and over-temperature protection of automotive
electronics
• Hard disk drives
• Point-of-sale (POS) equipment
• PCMCIA cards
• Power over Ethernet (POE)
• HDMI 1.4 Source protection
• Computers & peripherals
• Industrial control
• Security systems
Details Of 600V Polyswitch Resettable PTC Fuse
Model | Ih | It | Vmax | VmaxI | Imax | Rmin | Rmax | Product Dimensions (mm) |
| A | A | V | V | A | Ω | Ω | Style | A | B | C | D | Lead |
GR600-110 | 0.11 | 0.22 | 60 | 600 | 3 | 6.3 | 15.5 | F1 | 15.0 | 15.0 | 5.1 | 6.0 | 0.6 |
GR600-150 | 0.15 | 0.30 | 60 | 600 | 3 | 5.5 | 13 | F1 | 15.0 | 15.0 | 5.1 | 6.0 | 0.6 |
GR600-160 | 0.16 | 0.32 | 60 | 600 | 3 | 4.5 | 11 | F1 | 15.0 | 15.0 | 5.1 | 6.0 | 0.6 |
Electrical Characteristics (25℃)
| Model | IH | IT | Umax | Imax | Pdtyp | Max.Time-to-trip | | Rmin | Rmax | R1max |
| (A) | (A) | (Vde) | (A) | (W) | (A) | (S) | (mΩ) | (mΩ) | (mΩ) |
| GR600-110 | 0.11 | 0.22 | 265 | 3.0 | 1.0 | 1.0 | 5.0 | 7.5 | 18.0 | 27.0 |
| GR600-150 | 0.15 | 0.30 | 265 | 3.0 | 1.0 | 1.0 | 6.0 | 6.0 | 15.0 | 22.0 |
| GR600-160 | 0.16 | 0.30 | 265 | 3.0 | 1.0 | 1.0 | 7.5 | 5.0 | 12.0 | 18.0 |
Sign | Definition |
Ih | Hold current-maximum current at which the device will not trip at
25℃ |
It | Trip current-minimum current at which the device will always trip
at 25℃ |
Vmax | Maximum voltage at which the device will not trip |
VmaxI | Maximum voltage device can withstand without damage at it rated
current |
Imax | Maximum fault current device can withstand without damage at rated
voltage |
Rmin | Minimum device resistance at 25℃ prior to tripping |
Rmax | Minimum device resistance at 25℃ prior to tripping |
Figure | The Figure of TRPTC |
Lead | Lead diameter |
Discount Rate of Ambient Temperature and Current
TR Serie | -20℃ | 0℃ | 25℃ | 30℃ | 40℃ | 50℃ | 60℃ | 70℃ | 85℃ |
| TR 6 | 130% | 115% | 100% | 91% | 83% | 77% | 68% | 61% | 52% |
| TR 16 | 132% | 120% | 100% | 96% | 88% | 80% | 71% | 61% | 47% |
| TR 30 | 130% | 115% | 100% | 91% | 83% | 77% | 68% | 61% | 52% |
| TR 60 | 136% | 119% | 100% | 90% | 81% | 72% | 63% | 54% | 40% |
| TR 130 | 136% | 119% | 100% | 92% | 81% | 72% | 63% | 54% | 40% |
| TR 250 | 132% | 117% | 100% | 91% | 85% | 77% | 68% | 61% | 48% |
| TR 600 | 138% | 119% | 100% | 92% | 83% | 73% | 64% | 55% | 42% |

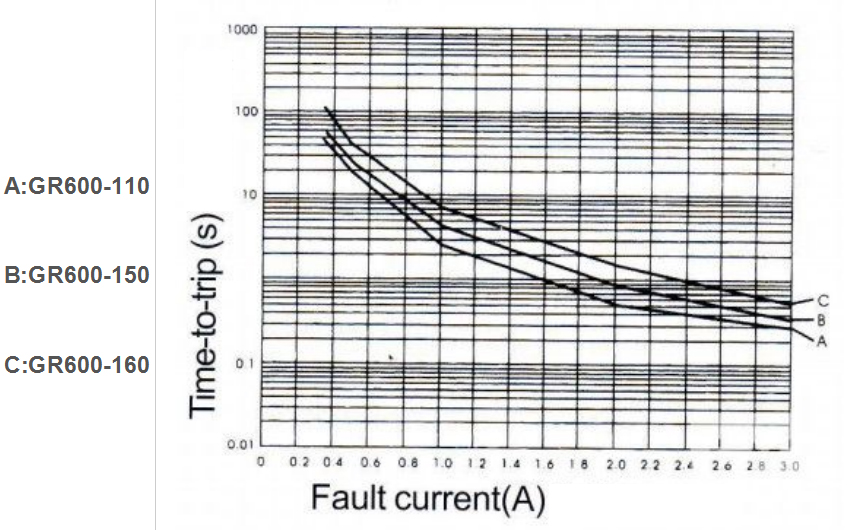

GR600 Typical Time To Trip At 25℃
The Time to Trip curves represent typical performance of a device
in a simulated application environment. Actual performance in
specific customer applications may differ from these values due to
the influence of other variables.
