Current Protection Low Voltage Power Supply 135V Polyswitch PPTC
PTC Resettable Thermal Fuse
135V Resettable PTC Fuse
Operating current: 0.05A ~ 3.5A
Maximum working voltage: 135VDC
Operating temperature range: -40℃ to 85℃
Safety certification: UL(E339514)
CUL (E339514)
Product features: low working current, radial lead packaging
products
Suitable for circuit protection under 135VAC
Application: used for line voltage power supply, transformer and
other electrical products
Lead-free, halogen-free environmental protection products, in line
with RoHS standards and REACH standards
Introduction Of 135V Resettable PTC Fuse Series
TR135 series resettable fuse (TRPTC) is widely used in the circuit
of rated voltage less than 130V, especially in Europe and the
United States electrical line voltage of 110V 120V situation Such
as: lamps, ballasts, transformers, motors and other fields.

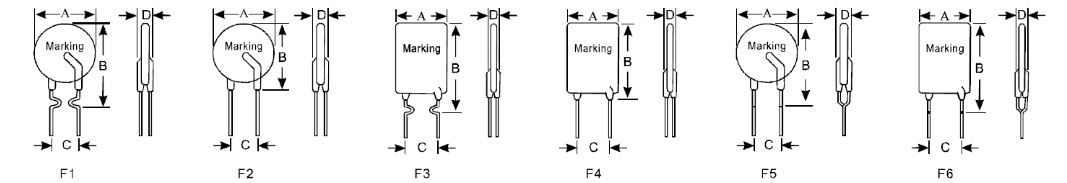

Size Of 135V Resettable PPTC Fuse
| Model No. | A | B | C | D | Wire Dia | Figure |
| GR135-050 | 6.0 | 8.3 | 5.1±0.5 | 3.8 | 0.5 | F2 |
| GR135-060 | 6.0 | 8.7 | 5.1±0.5 | 3.8 | 0.5 | F2 |
| GR135-080 | 6.0 | 9.3 | 5.1±0.5 | 3.8 | 0.5 | F2 |
| GR135-100 | 6.0 | 10.0 | 5.1±0.5 | 3.8 | 0.5 | F2 |
| GR135-120 | 7.0 | 10.5 | 5.1±0.5 | 3.8 | 0.5 | F2 |
| GR135-160 | 7.0 | 10.5 | 5.1±0.5 | 3.8 | 0.5 | F2 |
| GR135-200 | 6.5 | 10.0 | 5.1±0.5 | 3.8 | 0.5 | F4 |
| GR135-250 | 7.0 | 10.5 | 5.1±0.5 | 3.8 | 0.6 | F4 |
| GR135-300 | 6.5 | 13.0 | 5.1±0.5 | 3.8 | 0.6 | F4 |
| GR135-400 | 8.8 | 12.3 | 5.1±0.5 | 3.8 | 0.6 | F4 |
| GR135-500 | 8.8 | 14.5 | 5.1±0.5 | 3.8 | 0.8 | F4 |
| GR135-550 | 8.8 | 14.5 | 5.1±0.5 | 3.8 | 0.8 | F4 |
| GR135-650 | 10.0 | 15.0 | 5.1±0.5 | 3.8 | 0.8 | F4 |
| GR135-750 | 10.0 | 16.5 | 5.1±0.5 | 3.8 | 0.8 | F4 |
| GR135-900 | 11.3 | 17.5 | 5.1±0.5 | 3.8 | 0.8 | F4 |
| GR135-1000 | 12.0 | 21.0 | 5.1±0.5 | 3.8 | 0.8 | F4 |
| GR135-1100 | 13.5 | 18.8 | 5.1±0.5 | 3.8 | 0.8 | F4 |
| GR135-1250 | 14.0 | 22.2 | 5.1±0.5 | 3.8 | 0.8 | F4 |
| GR135-1350 | 15.7 | 21.7 | 5.1±0.5 | 3.8 | 0.8 | F4 |
| GR135-1600 | 15.7 | 21.7 | 5.1±0.5 | 3.8 | 0.8 | F4 |
| GR135-1850 | 16.0 | 24.5 | 10.2±0.5 | 3.8 | 0.8 | F4 |
| GR135-2000 | 18.5 | 25.5 | 10.2±0.5 | 3.8 | 0.8 | F4 |
| GR135-2500 | 21.0 | 29.0 | 10.2±0.5 | 3.8 | 0.8 | F4 |
| GR135-3000 | 24.5 | 29.0 | 10.2±0.5 | 3.8 | 0.8 | F4 |
| GR135-3500 | 24.5 | 33.5 | 10.2±0.5 | 3.8 | 0.8 | F4 |
| P/N | lH(A) | IT(A) | Umax (V) | lmax(A) | Pdtyp(w) | Max.Time | Rmin(Ω) | Rmax(Ω) | R1max(Ω) |
| | | | | | (A) | (S) | | | |
| GR135-050 | 0.05 | 0.10 | 135 | 2.5 | 0.27 | 0.25 | 4.0 | 12.0 | 27.0 | 36.0 |
| GR135-060 | 0.06 | 0.12 | 135 | 3.0 | 0.30 | 0.30 | 4.0 | 10.0 | 22.0 | 30.0 |
| GR135-080 | 0.08 | 0.16 | 135 | 4.0 | 0.38 | 0.40 | 4.0 | 6.0 | 13.0 | 18.0 |
| GR135-100 | 0.10 | 0.20 | 135 | 5.0 | 0.40 | 0.50 | 5.0 | 4.5 | 10.0 | 13.5 |
| GR135-120 | 0.12 | 0.24 | 135 | 6.0 | 0.46 | 0.60 | 6.0 | 3.5 | 8.0 | 10.5 |
| GR135-160 | 0.16 | 0.32 | 135 | 6.0 | 0.50 | 0.80 | 7.0 | 2.0 | 4.5 | 6.0 |
| GR135-200 | 0.20 | 0.40 | 135 | 6.0 | 0.72 | 1.00 | 5.0 | 2.0 | 4.5 | 6.0 |
| GR135-250 | 0.25 | 0.50 | 135 | 6.0 | 0.90 | 1.25 | 5.0 | 1.6 | 3.6 | 4.8 |
| GR135-300 | 0.30 | 0.30 | 135 | 6.0 | 1.0 | 0.50 | 5.0 | 1.35 | 3.0 | 3.6 |
| GR135-400 | 0.40 | 0.80 | 135 | 6.0 | 1.3 | 2.00 | 5.0 | 0.90 | 2.0 | 2.4 |
| GR135-500 | 0.50 | 1.0 | 135 | 7.5 | 1.6 | 2.50 | 5.0 | 0.70 | 1.55 | 1.9 |
| GR135-550 | 0.55 | 1.0 | 135 | 7.5 | 1.6 | 2.75 | 5.0 | 0.60 | 1.45 | 1.75 |
| GR135-650 | 0.65 | 1.3 | 135 | 7.5 | 1.7 | 3.25 | 8.0 | 0.50 | 1.10 | 1.35 |
| GR135-750 | 0.75 | 1.2 | 135 | 7.5 | 1.8 | 3.75 | 8.0 | 0.35 | 0.80 | 0.96 |
| GR135-900 | 0.90 | 1.5 | 135 | 9.0 | 2.1 | 4.50 | 8.0 | 0.27 | 0.60 | 0.72 |
| GR135-1000 | 1.00 | 2.0 | 135 | 10.0 | 2.2 | 5.00 | 8.0 | 0.25 | 0.55 | 0.66 |
| GR135-1100 | 1.10 | 2.2 | 135 | 11.0 | 2.4 | 5.50 | 9.0 | 0.22 | 0.50 | 0.60 |
| GR135-1250 | 1.25 | 2.5 | 135 | 12.5 | 2.6 | 6.25 | 10.0 | 0.18 | 0.40 | 0.48 |
| GR135-1350 | 1.35 | 2.4 | 135 | 13.5 | 2.8 | 6.75 | 10.0 | 0.16 | 0.36 | 0.43 |
| GR135-1600 | 1.60 | 3.5 | 135 | 16.0 | 3.2 | 8.00 | 10.0 | 0.13 | 0.27 | 0.33 |
| GR135-1850 | 1.85 | 3.7 | 135 | 18.5 | 3.6 | 9.25 | 10.0 | 0.11 | 0.22 | 0.27 |
| GR135-2000 | 2.00 | 4.0 | 135 | 20.0 | 3.9 | 10.0 | 12.0 | 0.10 | 0.20 | 0.24 |
| GR135-2500 | 2.50 | 5.0 | 135 | 20.0 | 4.6 | 12.5 | 15.0 | 0.075 | 0.15 | 0.18 |
| GR135-3000 | 3.00 | 6.0 | 135 | 20.0 | 5.3 | 15.0 | 15.0 | 0.060 | 0.12 | 0.15 |
| GR135-3500 | 3.50 | 7.0 | 135 | 20.0 | 6.0 | 17.5 | 15.0 | 0.050 | 0.10 | 0.12 |
Scope Of Application Of 135V Resettable PTC Fuse
This product is suitable for various kinds of electronic devices'
circuit over current protection. Widely used in the poduct
industry: Soymilk, Juicers, coffee machines, crushers, meat
grinder, egg beaters feet, sweepers, vacuum cleaners, massage
chairs, LED lighting, and security, electric toys, Medical
equipment, computer peripherals, audio equipment, data port
protection and so on.
