6125 2410 1812 Fuse Element Square Brick Type Slow Blow Time-delay Time Lag Surface Mount SMD Fuses

NO	Part Name	Material
①	Cap	Ag Plated Brass
②	Body	Body
③	Fuse element	Alloy
④	Filled	None

Rated					Rated voltage									Maximun voltage						Breaking capacity							I2T		UR
current														drop(mv)													A2s
50mA														5000													0.01		
63mA														4400													0.02		
100mA														3500													0.04		
125mA														2500													0.06		
160mA														2200													0.08		
200mA														1800													0.09		
250mA														1400													0.11		
315mA														1300													0.14		
400mA														1000													0.26		
500mA					125V(SGT)									900													0.5		
630mA														800													0.8		
800mA					300V(SMT)									600						125V@100A ac							1.5		
1.0A					125V(50mA~15A)									500						50A @250V/300Vac							2.3		
1.25A					250V(50mA ~10A)									400													3.2		
1.6A					300V(50mA ~10A)									300													5.9		
2.0A														300													7.8		
2.5A														300													10		
3.15A														300													23		
4.0A														300													39		
5.0A														300													58		
6.3A														300													95		
8.0A														220													150		
10.0A														220													210		
15A														200													320		

Scope of Application

This product is suitable for various kinds of electronic devices’ circuit over current protection. Widely used in industrial of Lighting, Power supply and Adapter applications, etc.

Standards and Agency Approvals

Standards:In accordance with UL248-1;UL248-14.

Appearances and Configuration

There shall not be any remarkable stain and crack on the appearances, markings shall be easily legible.

Configuration:No Lead End Cap or Axial Leaded Miniature Ceramic Tube Fuse.

Packaging

Catalog number, ratings (voltage, current), interrupting type and safety mark.

The packing material conforms to ROHS/REACH/HF environmental protection request. And the packing materials will not have the chemical reaction with the components.

Every 1000 PCS for 1 roll
Each box 1 volume

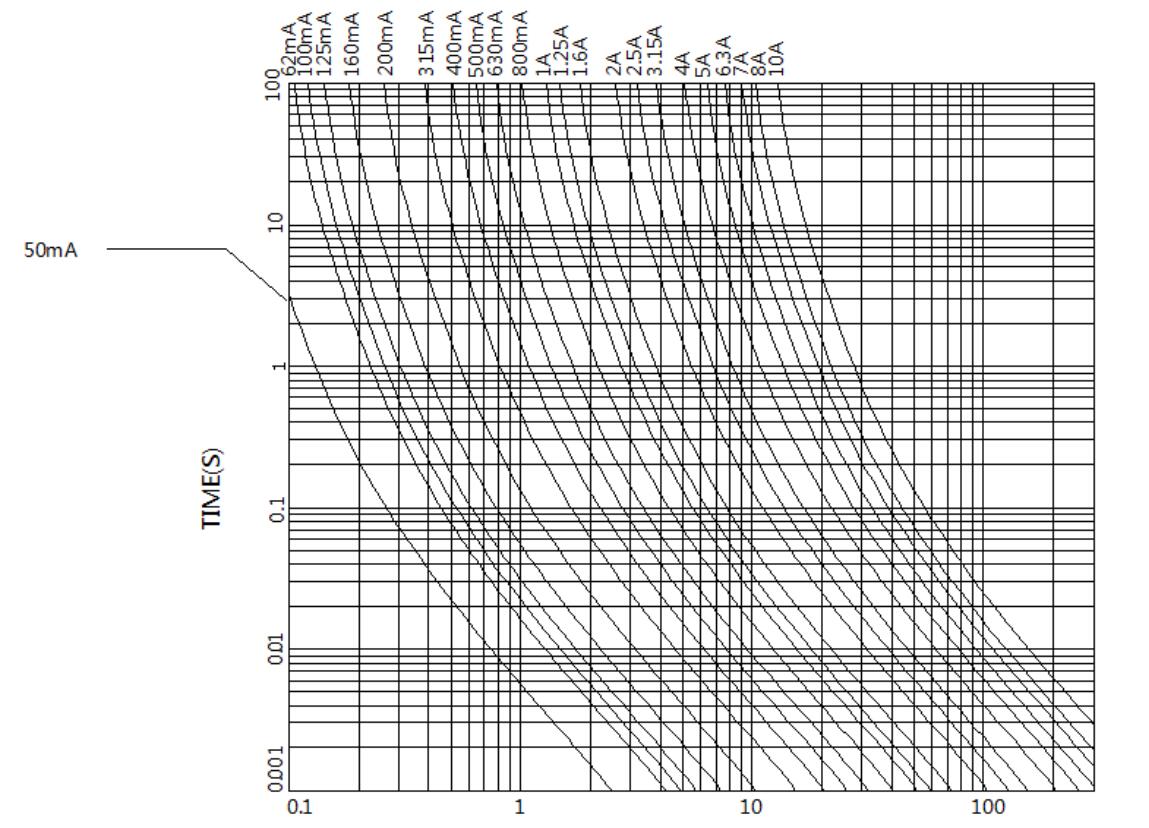

Opening Time

% of Ampere Rating	Opening Time(UL)
100%	>4 Hours
200%	<120 sec

When choosing the fuse's specification, if the operating environmental temperature beyond the scope from 20~30℃, engineer should consider the environmental temperature's affection to fuses. Please refer: Temperature Rerating

Installation Recommendations

/	mm	inch
L	8.7	0.343
H	2.9	0.114
G	3.0	0.118

Reflow Condition

Pb-Free assembly

Preheating

-Temperature Min Ts(min)

150℃

-Temperature Max Ts(man)

200℃

-Time Max

120 secs

Soldering

-Temperature (TL)(Liquidus)

260℃

-Time Max (TL)

60 secs

-Temperature (TP)

Max 260℃

-Time Max (TP)

10 secs
