    Glass Encapsulated 3x10 Miniature Cartridge Fuse 500mA-6A Axial Resistor Diode Type

    Ask Lasest Price
    Brand Name : Tian Rui
    Model Number : 3x10
    Certification : ROHS
    Price : Negotiable
    Payment Terms : D/P, T/T,Paypal, Western Union
    Supply Ability : 1000000PCS/Month
    Delivery Time : 5-7 Days
    • Product Details
    • Company Profile

    Glass Encapsulated 3x10 Miniature Cartridge Fuse 500mA-6A Axial Resistor Diode Type


    Axial Resistor Diode Type 3x10 3x10mm Fast Acting Slow Blow Glass Sealed Encapsulated Fuse


    3x10MM Glass Tube Fuse


    Product size:3*10mm
    Rated current:0.5A-6A
    Rated voltage:250V
    Certification:ROHS


    Product Packaging


    Full glass seal, glass tube sand filling


    Scope of Application


    This product is suitable for all kinds of electronic equipment circuit overcurrent protection, widely used in lighting equipment, power equipment and adapters and other fields


    Safety Code Certification Standard and Number


    Execution standard: follow ICE60127-1, IEC60127-2,GB9364.1,GB9364.2


    Appearance and Shape

    1. the appearance should not appear significant stains, cracks, marks should be clear and easy to distinguish.

    2. Shape: small glass tube fuse with straight pin


    Environmental Features


    Operating temperature range: -55℃ ~ +125℃

    If the operating ambient temperature exceeds the range of 25±5℃, the influence of the operating ambient temperature on the fuse shall be considered when the fuse specification is selected.


    Electrical Characteristics


    Test condition

    All electrical characteristics tests are conducted at an ambient temperature of 25±5℃.


    Stock Condition


    Humidity: Relative humidity ≤75% store 3 years in average.

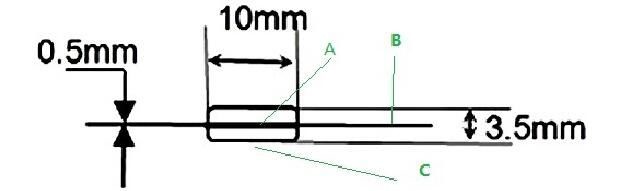

    StructuresMaterial
    AWireMetal
    BSolder pinTinned wire
    CTubeGlass

    Fusing Characteristics


    %Rating currentFusing time
    Min.Max.
    100%4hour/
    135%/1 hour
    200%/60 s
    1000%10 ms200 ms

    Rated currentRated voltageULCULPSEVDECQCROHS
    500 mA125 V/250 V
    1 A125 V/250 V
    1.25 A125 V/250 V
    1.5 A125 V/250 V
    2 A125 V/250 V
    2.5 A125 V/250 V
    3 A125 V/250 V
    3.5 A125 V/250 V
    4 A125 V/250 V
    5 A125 V/250 V
    6 A125 V/250 V

    Glass Encapsulated 3x10 Miniature Cartridge Fuse 500mA-6A Axial Resistor Diode Type


    Glass Encapsulated 3x10 Miniature Cartridge Fuse 500mA-6A Axial Resistor Diode Type


    When choosing the fuse's specification, if the operating environmental temperature beyond the scope from 20-30C, engineer should consider the environmental temperature's affection to fuses.

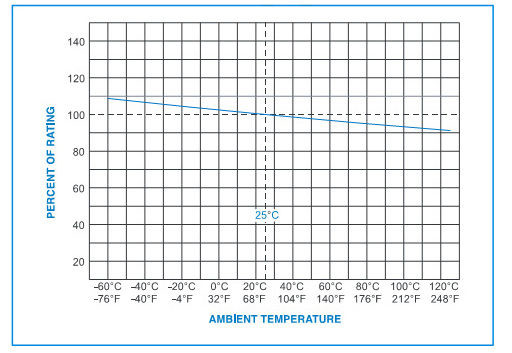

    Please refer: Temperature Rating Curve


    Glass Encapsulated 3x10 Miniature Cartridge Fuse 500mA-6A Axial Resistor Diode Type
