50mA 0.05A 30V 1210 PPTC Resettable Fuses Surface Mount Replace Littelfuse

50mA 0.05A 30V 1210 PTC 1210 Surface Mount Replace Littelfuse Resettable Fuse SMD

1210 Surface Mount Resettable Fuse

● Package size: 1210

● Current: 50mA-2A

● Voltage: 6V-30V

● Certification: UL TUV ROHS

Features Of 1210 Resettable Fuse

● Surface Mount Devices

● Standard 1210mils footprint

● Surface mount packaging for automated assembly

● Compatible with Pb and Pb-free solder reflow profiles

● Agency recognition: UL approved

Applications Of 1210 SMD Resettable Fuse

● PC motherboards

● IEEE1394 ports

● USB port protection

● HDMI source protection

● Game console port protection

The self-recovery fuse is composed of specially treated Polymer resin and conductive particles (Carbon Black) distributed in it.Under normal operation, the polymer resin tightly bound the conductive particles outside the crystalline structure to form a chain-like conductive electrical path. At this time, the recoverable fuse is in the state of low resistance (A), and the thermal energy generated by the current flowing through the self-recovering fuse on the line is small and will not change the crystal structure.When the circuit is short-circuited or overloaded, the heat generated by the large current flowing through the self-recovery fuse melts the polymer resin, and the volume grows rapidly, forming a high resistance state (B), and the working current decreases rapidly, thereby limiting and protecting the circuit.When the fault is removed, PTC can restore the fuse cooling crystallization, volume contraction, conductive particles to form a conductive path, the recovery fuse to restore low resistance state, so as to complete the protection of the circuit, without manual replacement.

Electrical Characteristics of Replace Littelfuse 1210 Resettable Fuse

P/N	P/N Hold current	Trip current	Maxi voltage	Maxi current	Maxi impulse voltage		Maxi action room	Resistance range(Ω)
	IH, (A)	IT, (A)	V max, (V)	I max, (A)	(A)	(Sec.)	Pd typ, (W)	R min,	R1 max,
TLC-USMD005	0.05	0.15	30	10	0.25	1.50	0.60	2.80	50.00
TLC-USMD010	0.10	0.30	30	10	0.50	0.60	0.60	0.80	15.00
TLC-USMD020	0.20	0.40	30	10	8.00	0.02	0.60	0.40	5.00
TLC-USMD035	0.35	0.75	6	40	8.00	0.20	0.60	0.20	1.30
TLC-USMD050	0.50	1.00	13.2	40	8.00	0.10	0.60	0.18	0.90
TLC-USMD075	0.75	1.50	6	40	8.00	0.10	0.60	0.07	0.45
TLC-USMD110	1.10	2.20	6	40	8.00	0.30	0.60	0.05	0.24
TLC-USMD150	1.50	3.00	6	40	8.00	0.50	0.60	0.03	0.11
TLC-USMD175	1.75	4.00	6	40	8.00	1.00	0.70	0.02	0.09
TLC-USMD200	2.00	4.00	6	40	8.00	1.00	0.70	0.02	0.09

Size(Unit:mm)

P/N	Marking	A		B		C		D
		Min.	Max.	Min.	Max.	Min.	Max.	Min.
TLC-USMD005	T0	3.00	3.43	2.35	2.80	0.80	1.20	0.30
TLC-USMD010	T01	3.00	3.43	2.35	2.80	0.80	1.20	0.30
TLC-USMD020	T02	3.00	3.43	2.35	2.80	0.80	1.20	0.30
TLC-USMD035	T03	3.00	3.43	2.35	2.80	0.60	1.00	0.30
TLC-USMD050	T05	3.00	3.43	2.35	2.80	0.60	1.00	0.30
TLC-USMD075	T07	3.00	3.43	2.35	2.80	0.60	1.00	0.30
TLC-USMD110	T11	3.00	3.43	2.35	2.80	0.45	0.85	0.30
TLC-USMD150	T15	3.00	3.43	2.35	2.80	0.60	1.00	0.30
TLC-USMD175	T20	3.00	3.43	2.35	2.80	0.60	1.00	0.30
TLC-USMD200	T20	3.00	3.43	2.35	2.80	0.60	1.00	0.30

Characteristic Curve of Relation Between Ambient Temperature and Working Current

P/N	Operating Ambient Temperature
	-40℃	-20℃	0℃	25℃	40℃	50℃	60℃	70℃	85℃
TLC-USMD005	0.08	0.07	0.06	0.05	0.04	0.04	0.03	0.03	0.02
TLC-USMD010	0.15	0.13	0.12	0.10	0.09	0.08	0.07	0.06	0.05
TLC-USMD020	0.32	0.28	0.24	0.20	0.18	0.16	0.14	0.12	0.10
TLC-USMD035	0.51	0.46	0.40	0.35	0.30	0.27	0.24	0.22	0.18
TLC-USMD050	0.76	0.66	0.58	0.50	0.42	0.38	0.35	0.29	0.23
TLC-USMD075	1.10	0.97	0.86	0.75	0.64	0.58	0.55	0.47	0.39
TLC-USMD110	1.60	1.42	1.26	1.10	0.94	0.86	0.80	0.70	0.58
TLC-USMD150	2.30	2.02	1.76	1.50	1.24	1.11	1.00	0.85	0.65
TLC-USMD175	2.55	2.26	2.00	1.75	1.50	1.37	0.98	0.86	0.71
TLC-USMD200	3.20	2.80	2.40	2.00	1.80	1.60	1.40	1.20	1.00

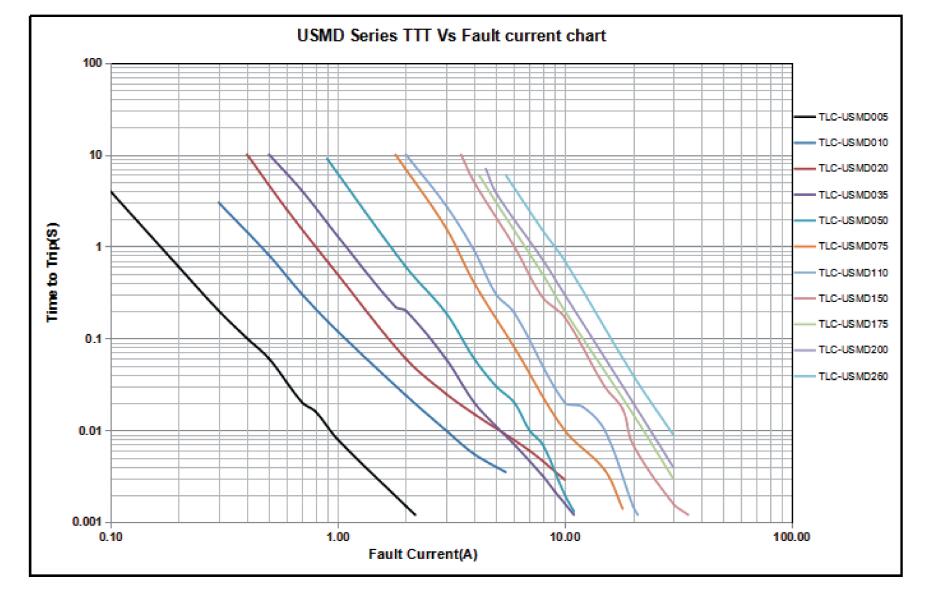

Action Current Time Curve Table
