Low Loss 1210 PPTC SMD Surface Mount Resettable Fuse Polyswitch Resettable Devices

Product Categories

Dongguan Tianrui Electronics Co., Ltd

Trust Seal

Verified Supplier

Credit Check

Supplier Assessment

Contact Now

Add to Cart

Polyswitch Resettable Devices Low Loss 1210 PPTC SMD Surface Mount Resettable Fuse

Features of Low Loss 1210 Surface Mount Resettable Fuse
◆ Fully compatible with current industry standards

◆ Very low internal resistance

◆ UL(E352136), C-UL(E352136), TUV(R50306076)

◆ RoHS, Reach, HF compliance

Applications of Low Loss 1210 PPTC SMD Resettable Fuse
◆ Any application that requires protection at low resistances

◆ Cellular phones

◆ Laptop computers

◆ Rechargeable battery pack protection.

Packing Quantity of Low Loss 1210 Polyswitch Resettable Fuse

Model Q’t y/Reel
TLC-USML110~TLC-USML500 4000pcs
TLC-USML550~TLC-USML750 3500pcs
Note: Reel packaging per EIA-481-1 standard

Electrical Characteristics

Size(Unit:mm)

Characteristic Curve of Relation Between Ambient Temperature and Working Current

P/N	Operating Ambient Temperature
	-40℃	-20℃	0℃	25℃	40℃	50℃	60℃	70℃	85℃
TLC-USML110	1.54	1.43	1.27	1.10	0.94	0.77	0.72	0.66	0.50
TLC-USML150	2.10	1.95	1.73	1.50	1.28	1.05	0.98	0.90	0.68
TLC-USML175	2.45	2.28	2.01	1.75	1.49	1.23	1.14	1.05	0.79
TLC-USML190	2.66	2.47	2.19	1.90	1.62	1.33	1.24	1.14	0.86
TLC-USML200	2.80	2.60	2.30	2.00	1.70	1.40	1.30	1.20	0.90
TLC-USML260	3.64	3.38	2.99	2.60	2.21	1.82	1.69	1.56	1.17
TLC-USML300	4.20	3.90	3.45	3.00	2.55	2.10	1.95	1.80	1.35
TLC-USML350	4.90	4.55	4.03	3.50	2.98	2.45	2.28	2.10	1.58
TLC-USML380	5.32	4.94	4.37	3.80	3.23	2.66	2.47	2.28	1.71
TLC-USML400	5.60	5.20	4.60	4.00	3.40	2.80	2.60	2.40	1.80
TLC-USML450	6.30	5.85	5.18	4.50	3.83	3.15	2.93	2.70	2.03
TLC-USML500	7.00	6.50	5.75	5.00	4.25	3.50	3.25	3.00	2.25
TLC-USML550	7.70	7.15	6.33	5.50	4.68	3.85	3.58	3.30	2.48
TLC-USML600	8.40	7.80	6.90	6.00	5.10	4.20	3.90	3.60	2.70
TLC-USML650	9.10	8.45	7.48	6.50	5.53	4.55	4.23	3.90	2.93
TLC-USML700	9.80	9.10	8.05	7.00	5.95	4.90	4.55	4.20	3.15
TLC-USML750	10.50	9.75	8.63	7.50	6.38	5.25	4.88	4.50	3.38

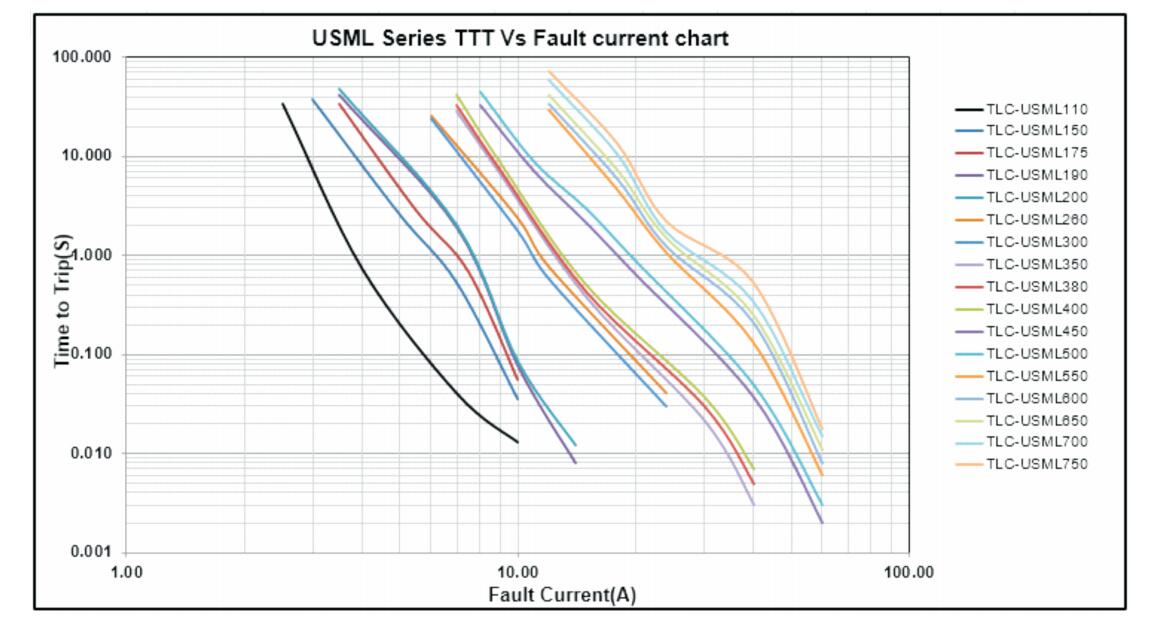

Action Current Time Curve Table

Product Tags:

1210 Surface Mount Resettable Fuse
