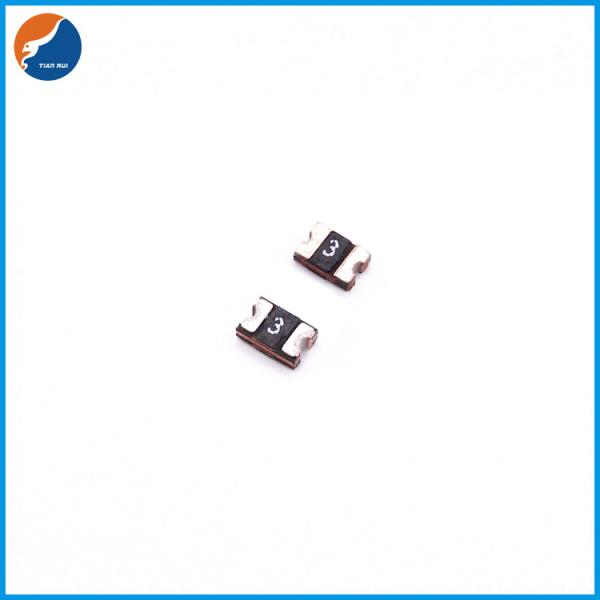

    SMD Chip 0.35A-3A 0603 PPTC Resettable Fuses Low Loss For Battery Pack Protection

    Ask Lasest Price
    Brand Name : Tian Rui
    Model Number : Low Loss FSML0603
    Certification : RoHS、Reach、HF、UL、C-UL、TUV
    Price : Negotiable
    Payment Terms : D/P, T/T,Paypal, Western Union
    Supply Ability : 1000000PCS/Month
    Delivery Time : 5-7 Days
    • Product Details
    • Company Profile

    SMD Chip 0.35A-3A 0603 PPTC Resettable Fuses Low Loss For Battery Pack Protection

    Rechargeable Battery Pack Protection Low Loss Resistance 0603 SMD Chip PPTC Fuse Surface Mount Resettable Fuse


    Features of Low Loss 0603 SMD Resettable Fuse
    ◆ Fully compatible with current industry standards
    ◆ Very low internal resistance
    ◆ UL(Pending), C-UL(Pending), TUV(Pending)
    ◆ RoHS, Reach, HF compliance


    Applications of Low Resistance 0603 Surface Mount Resettable Fuse
    ◆ Any application that requires protection at low resistances
    ◆ Cellular phones
    ◆ Laptop computers
    ◆ Rechargeable battery pack protection.


    SMD Chip 0.35A-3A 0603 PPTC Resettable Fuses Low Loss For Battery Pack Protection


    Model Qty/Reel
    TLC-FSML035~TLC-FSML200 5000pcs
    TLC-FSML250~TLC-FSML300 4000pcs
    Note: Reel packaging per EIA-481-1 standard


    Electrical Characteristics

    P/NHold currentTrip currentMaxi voltageMaxi currentMaxi action roomPower consumptionResistance range(Ω)
    IH, (A)IT, (A)V max, (V)I max, (A)(A)(Sec.)Pd typ, (W)R min,R1 max,
    TLC-FSML0350.350.756.0050.008.000.100.500.2001.000
    TLC-FSML0500.501.006.0050.008.000.100.500.0600.350
    TLC-FSML0750.751.506.0050.008.000.200.500.0400.250
    TLC-FSML1001.002.006.0050.008.000.300.500.0300.120
    TLC-FSML1101.102.206.0050.008.000.300.500.0250.110
    TLC-FSML1251.252.506.0050.008.000.400.500.0150.095
    TLC-FSML1501.503.006.0050.008.000.500.500.0100.080
    TLC-FSML1751.753.506.0050.008.000.600.500.0080.070
    TLC-FSML2002.004.006.0050.008.002.000.500.0060.065
    TLC-FSML2502.505.006.0050.008.003.000.600.0040.050
    TLC-FSML2602.605.206.0050.008.003.000.600.0040.045
    TLC-FSML3003.006.006.0050.008.005.000.600.0030.040

    Size(Unit:mm)


    P/NMarking
    		ABCD
    Min.Max.Min.Max.Min.Max.Min.
    TLC-FSML035C1.451.850.651.050.350.750.20
    TLC-FSML050F1.451.850.651.050.350.750.20
    TLC-FSML075H1.451.850.651.050.350.750.20
    TLC-FSML100I1.451.850.651.050.350.750.20
    TLC-FSML110I1.451.850.651.050.350.750.20
    TLC-FSML125J1.451.850.651.050.350.750.20
    TLC-FSML150L1.451.850.651.050.350.750.20
    TLC-FSML175O1.451.850.651.050.350.750.20
    TLC-FSML200S1.451.850.651.050.350.750.20
    TLC-FSML250T1.451.850.651.050.650.950.20
    TLC-FSML260T1.451.850.651.050.650.950.20
    TLC-FSML300Z1.451.850.651.050.650.950.20

    Characteristic Curve of Relation Between Ambient Temperature and Working Current


    P/N

    Operating Ambient Temperature

    -40℃

    -20℃

    0℃

    25℃

    40℃

    50℃

    60℃

    70℃

    85℃

    TLC-FSML035

    0.49

    0.46

    0.40

    0.35

    0.30

    0.26

    0.23

    0.19

    0.14

    TLC-FSML050

    0.70

    0.65

    0.58

    0.50

    0.43

    0.35

    0.33

    0.28

    0.20

    TLC-FSML075

    1.05

    0.98

    0.86

    0.75

    0.64

    0.56

    0.49

    0.41

    0.30

    TLC-FSML100

    1.40

    1.30

    1.15

    1.00

    0.85

    0.75

    0.65

    0.55

    0.40

    TLC-FSML110

    1.54

    1.43

    1.27

    1.10

    0.94

    0.83

    0.72

    0.61

    0.44

    TLC-FSML125

    1.75

    1.63

    1.44

    1.25

    1.06

    0.94

    0.81

    0.69

    0.50

    TLC-FSML150

    2.10

    1.95

    1.73

    1.50

    1.28

    1.13

    0.98

    0.83

    0.60

    TLC-FSML175

    2.45

    2.28

    2.01

    1.75

    1.49

    1.31

    1.14

    0.96

    0.70

    TLC-FSML200

    2.80

    2.60

    2.30

    2.00

    1.70

    1.50

    1.30

    1.10

    0.80

    TLC-FSML250

    3.50

    3.25

    2.88

    2.50

    2.13

    1.88

    1.63

    1.38

    1.00

    TLC-FSML260

    3.64

    3.38

    2.99

    2.60

    2.21

    1.95

    1.69

    1.43

    1.04

    TLC-FSML300

    4.20

    3.90

    3.45

    3.00

    2.55

    2.25

    1.95

    1.65

    1.20

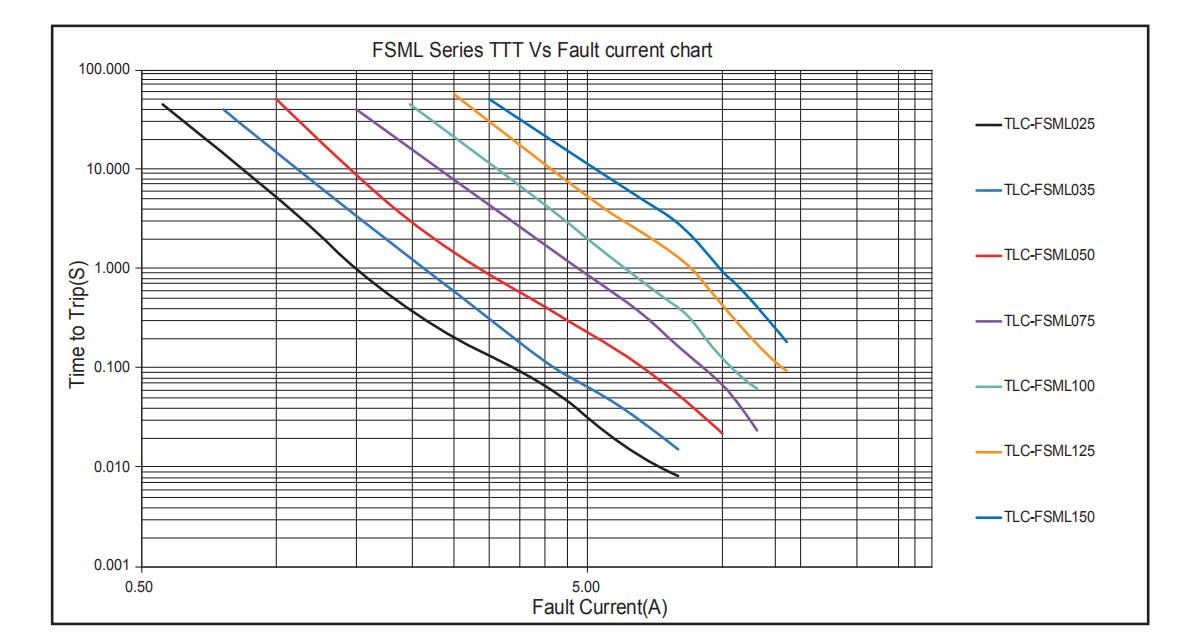

    Action Current Time Curve Table
