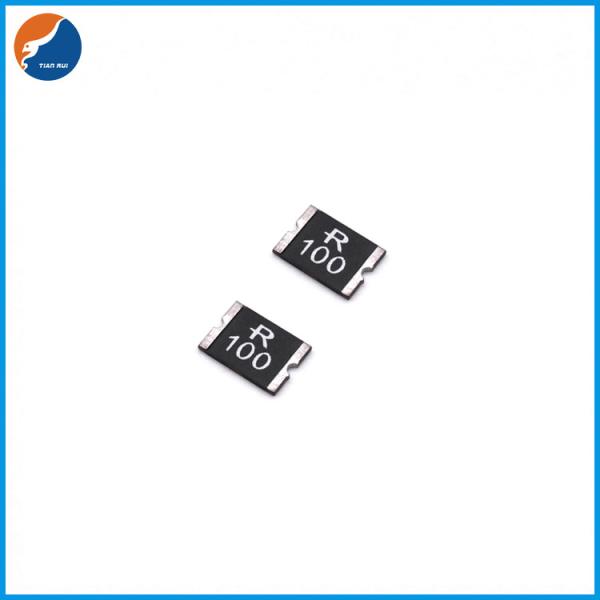

2920 Series 300mA-5A PPTC Resettable Fuses Surface Mount Devices

PPTC PTC Polyswitch 2920 Series Taped SMD Chip Surface Mount Resettable Fuse

● Package size: 2920

● Current: 300mA-5A

● Voltage: 12V-60V

● Certification: UL TUV ROHS

Features Of 2920 Surface Mount Resettable Fuse

● Surface Mount Devices

● Standard 7555mm(2920mils) footprint

● Surface mount packaging for automated assembly

● Compatible with Pb and Pb-free solder reflow profiles

● Agency recognition: UL approved

Applications Of 2920 SMD Resettable Fuse

● Computer mother borad,Modem

● Industrial controls

● IEEE ports

● Portable electronics

The self-recovery fuse is composed of specially treated Polymer resin and conductive particles (Carbon Black) distributed in it.Under normal operation, the polymer resin tightly bound the conductive particles outside the crystalline structure to form a chain-like conductive electrical path. At this time, the recoverable fuse is in the state of low resistance (A), and the thermal energy generated by the current flowing through the self-recovering fuse on the line is small and will not change the crystal structure.When the circuit is short-circuited or overloaded, the heat generated by the large current flowing through the self-recovery fuse melts the polymer resin, and the volume grows rapidly, forming a high resistance state (B), and the working current decreases rapidly, thereby limiting and protecting the circuit.When the fault is removed, PTC can restore the fuse cooling crystallization, volume contraction, conductive particles to form a conductive path, the recovery fuse to restore low resistance state, so as to complete the protection of the circuit, without manual replacement.

Electrical Characteristics of 2920 SMD Chip Resettable Fuse

P/N	IH	IT	V max	I max	maxi operating time		Pd	Resistance range(Ω)
	IH, (A)	IT, (A)	V max, (V)	I max, (A)	(A)	(Sec.)	Pd typ, (W)	R min,	R1 max,
TLC-LSMD030	0.30	0.60	60	10	1.5	3.0	1.5	0.600	4.300
TLC-LSMD050	0.50	1.00	60	10	2.5	3.0	1.5	0.180	1.400
TLC-LSMD075	0.75	1.50	33	40	8.0	0.3	1.5	0.100	1.000
TLC-LSMD100	1.00	2.00	33	40	8.0	0.5	1.5	0.065	0.410
TLC-LSMD125	1.25	2.50	33	40	8.0	2.0	1.5	0.050	0.250
TLC-LSMD150	1.50	3.00	33	40	8.0	2.0	1.5	0.035	0.230
TLC-LSMD185	1.85	3.70	33	40	8.0	2.0	1.5	0.030	0.150
TLC-LSMD200	2.00	4.00	16	40	8.0	4.5	1.5	0.025	0.120
TLC-LSMD250	2.50	5.00	16	40	8.0	16.0	1.5	0.018	0.085
TLC-LSMD260	2.60	5.20	16	40	8.0	18.0	1.5	0.014	0.075
TLC-LSMD260/24	2.60	5.20	24	40	8.0	18.0	1.5	0.014	0.075
TLC-LSMD300	3.00	6.00	12	40	8.0	20.0	1.5	0.010	0.055
TLC-LSMD300D	3.00	6.00	24	40	8.0	20.0	1.5	0.010	0.055
TLC-LSMD400	4.00	8.00	12	40	8.0	50.0	1.5	0.007	0.035
TLC-LSMD450	4.50	9.00	16	40	22.5	5.0	1.5	0.005	0.020
TLC-LSMD500	5.00	10.00	12	40	25.0	25.0	1.5	0.005	0.018

Size(Unit:mm)

P/N	Marking	A		B		C		D
		Min.	Max.	Min.	Max.	Min.	Max.	Min.
TLC-LSMD030	T030	6.73	7.98	4.80	5.44	0.75	1.25	0.30
TLC-LSMD050	T050	6.73	7.98	4.80	5.44	0.75	1.25	0.30
TLC-LSMD075	T075	6.73	7.98	4.80	5.44	0.65	1.05	0.30
TLC-LSMD100	T100	6.73	7.98	4.80	5.44	0.65	1.05	0.30
TLC-LSMD125	T125	6.73	7.98	4.80	5.44	0.65	1.05	0.30
TLC-LSMD150	T150	6.73	7.98	4.80	5.44	0.90	1.30	0.30
TLC-LSMD185	T185	6.73	7.98	4.80	5.44	0.90	1.30	0.30
TLC-LSMD200	T200	6.73	7.98	4.80	5.44	0.45	0.85	0.30
TLC-LSMD250	T250	6.73	7.98	4.80	5.44	0.45	0.85	0.30
TLC-LSMD260	T260	6.73	7.98	4.80	5.44	0.45	0.85	0.30
TLC-LSMD260/24	T260	6.73	7.98	4.80	5.44	0.80	1.20	0.30
TLC-LSMD300	T300	6.73	7.98	4.80	5.44	0.45	0.85	0.30
TLC-LSMD300/24	T300	6.73	7.98	4.80	5.44	0.80	1.20	0.30
TLC-LSMD450	T450	6.73	7.98	4.80	5.44	0.80	1.20	0.30
TLC-LSMD400	T400	6.73	7.98	4.80	5.44	0.80	1.20	0.30
TLC-LSMD500	T500	6.73	7.98	4.80	5.44	0.80	1.20	0.30

Characteristic Curve of Relation Between Ambient Temperature and Working Current

P/N	Operating Ambient Temperature
	-40℃	-20℃	0℃	25℃	40℃	50℃	60℃	70℃	85℃
TLC-LSMD030	0.45	0.40	0.35	0.30	0.25	0.23	0.20	0.17	0.14
TLC-LSMD050	0.76	0.67	0.59	0.50	0.42	0.38	0.33	0.29	0.23
TLC-LSMD075	1.13	1.01	0.88	0.75	0.62	0.56	0.50	0.44	0.34
TLC-LSMD100	1.66	1.47	1.29	1.10	0.91	0.83	0.73	0.64	0.50
TLC-LSMD125	1.89	1.68	1.46	1.25	1.04	0.94	0.83	0.73	0.56
TLC-LSMD150	2.27	2.01	1.76	1.50	1.25	1.13	1.00	0.87	0.74
TLC-LSMD185	2.80	2.47	2.17	1.85	1.54	1.39	1.22	1.07	0.85
TLC-LSMD200	3.02	2.68	2.34	2.00	1.80	1.70	1.54	1.40	1.30
TLC-LSMD250	3.78	3.35	2.93	2.50	2.25	2.13	1.93	1.75	1.63
TLC-LSMD260	3.93	3.48	3.04	2.60	2.34	2.21	2.00	1.82	1.69
TLC-LSMD260/24	3.93	3.48	3.04	2.60	2.34	2.21	2.00	1.82	1.69
TLC-LSMD300	4.53	4.02	3.51	3.00	2.52	2.26	1.99	1.75	1.34
TLC-LSMD300/24	4.53	4.02	3.51	3.00	2.52	2.26	1.99	1.75	1.34
TLC-LSMD450	6.80	6.03	5.27	4.50	4.05	3.83	3.47	3.15	2.93

Action Current Time Curve Table
