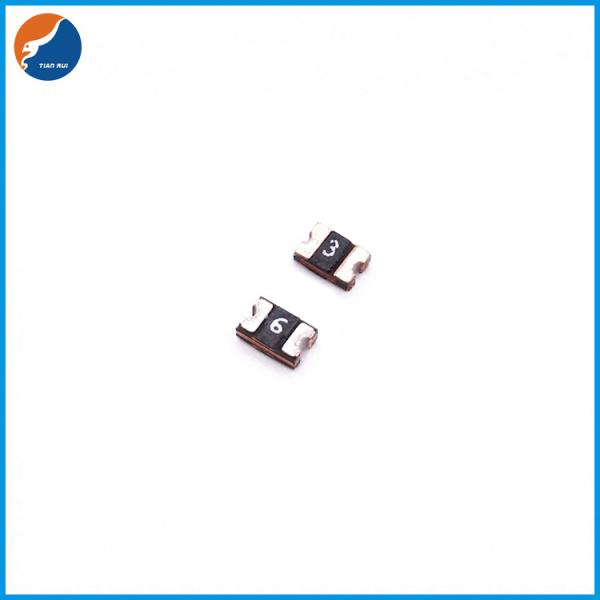

Electronic Component Low Loss PPTC PTC SMD Chip 0402 Surface Mount
Resettable Fuse
Features of Low Loss 0402 Surface Mount Resettable Fuse
◆ Fully compatible with current industry standards
◆ Very low internal resistance
◆ UL(Pending), C-UL(Pending), TUV(Pending)
◆RoHS,Reach,HF compliance
Applications of Low Loss 0402 SMD Resettable Fuse
◆ Any application that requires protection at low resistances
◆ Cellular phones
◆ Rechargeable battery pack protection.
Usage: 0402 is a surface-mount no-part that operates faster than
ordinary SMD fuses and has low resistance.It is widely used in all
high density circuit boards.
Packing Quantity
Model Q’t y/Reel
TLC-ASML010~TLC-ASML050 5000pcs
Note: Reel packaging per EIA-481-1 standard
Electrical Characteristics
| P/N | IH | IT | V max | I max | max operating time | Pd | Resistance range(Ω) |
| IH, (A) | IT, (A) | V max, (V) | I max, (A) | (A) | (Sec.) | Pd typ, (W) | R min, | R1 max, |
| TLC-ASML010 | 0.10 | 0.35 | 6 | 50 | 1.00 | 5.00 | 0.50 | 0.130 | 2.000 |
| TLC-ASML020 | 0.20 | 0.50 | 6 | 50 | 1.00 | 5.00 | 0.50 | 0.100 | 0.125 |
| TLC-ASML035 | 0.35 | 0.70 | 6 | 50 | 8.00 | 1.00 | 0.50 | 0.050 | 0.700 |
| TLC-ASML050 | 0.50 | 1.00 | 6 | 50 | 8.00 | 2.00 | 0.50 | 0.040 | 0.400 |
Size(Unit:mm)
| P/N |
Marking
| A | B | C | D |
| Min. | Max. | Min. | Max. | Min. | Max. | Min. |
| TLC-ASML010 | Black ink | 0.95 | 1.25 | 0.45 | 0.75 | 0.35 | 0.65 | 0.10 |
| TLC-ASML020 | Black ink | 0.95 | 1.25 | 0.45 | 0.75 | 0.35 | 0.65 | 0.10 |
| TLC-ASML035 | White ink | 0.95 | 1.25 | 0.45 | 0.75 | 0.35 | 0.65 | 0.10 |
| TLC-ASML050 | White ink | 0.95 | 1.25 | 0.45 | 0.75 | 0.35 | 0.65 | 0.10 |
Characteristic Curve of Relation Between Ambient Temperature and
Working Current
| P/N | Operating Ambient Temperature |
| -40℃ | -20℃ | 0℃ | 25℃ | 40℃ | 50℃ | 60℃ | 70℃ | 85℃ |
| TLC-ASML010 | 0.13 | 0.12 | 0.11 | 0.10 | 0.08 | 0.07 | 0.06 | 0.05 | 0.03 |
| TLC-ASML020 | 0.26 | 0.24 | 0.22 | 0.20 | 0.16 | 0.14 | 0.12 | 0.10 | 0.07 |
| TLC-ASML035 | 0.46 | 0.42 | 0.39 | 0.35 | 0.28 | 0.25 | 0.21 | 0.18 | 0.12 |
| TLC-ASML050 | 0.65 | 0.60 | 0.55 | 0.50 | 0.40 | 0.35 | 0.30 | 0.25 | 0.17 |
Action Current Time Curve Table
