50mA to 10A 250V 350V PCB Mounted Radial Lead Square Type Fast Acting Subminiature Micro Fuse


Rated Voltage: 350V

Material: Base and Cap: Black thermoplastic, Pin: Tin-lead Plated alloy

Certificate : CUL,UL

Application : Home appliances, power supply, communications, consumer electronics

Type: FMS 8X4mm

Size: 8.0mm*4mm

Rated current : 50mA - 10A

Product Features of Square Type Subminiature Fuse

1. Pin tensile strength: 5 N 10±1 S

2. Pin thrust strength: 2 N 10±1 S

3. Solderability: wave soldering: 260℃, ≤ 3S; iron soldering: 350±10℃, ≤1S

4 Welding heat resistance: wave soldering: 260℃, 10s; iron soldering iron: 350℃, 3S

Electrical Characteristics of Fast Acting Micro Fuse

1. Experimental conditions
The ambient temperature for all tests is 25±5℃.

2. Segmentation ability
Fuse withstand segment capacity: at 250V AC power supply, 35A or 10 times the rated current among the larger.
The insulation resistance of the fuse after the sectional ability test is greater than 0.1MΩ.

3. Temperature rise test
The temperature rise at any part of the fuse is measured not to exceed 135 ° C and the ambient temperature is 25±5 ° C when the fuse is disconnected by 1.5 times the rated current for 15 minutes, followed by 0.1 times the rated current every 15 minutes.

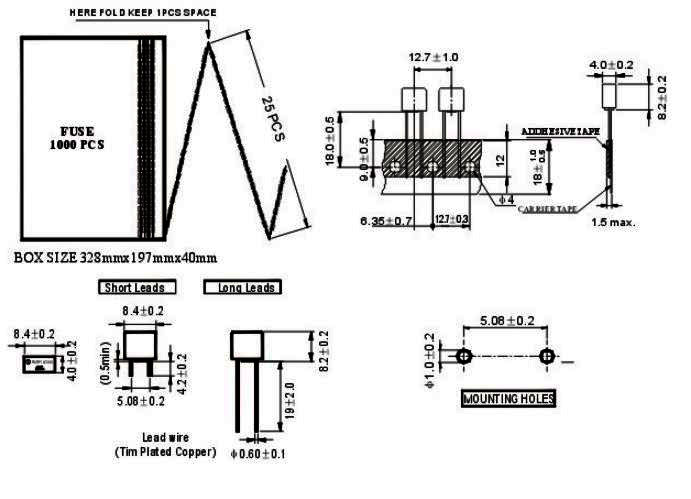

The Drawing of PCB Mounted Square Subminiature Fuse

Description Of Radial Lead Micro Fuse

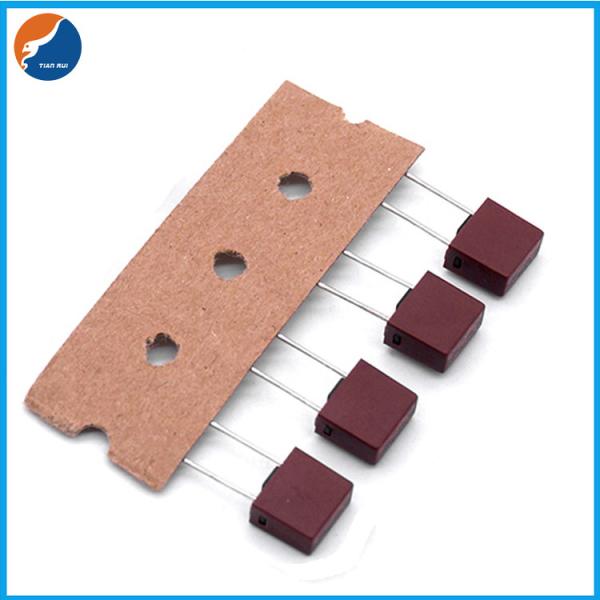

Details Of FMS 8X4mm Fast-Acting Radial Lead Micro Fuse

Description Of Square Type Micro Fuse

Details Of MFS 8X4mm Fast-Acting Radial Lead Micro Fuse
