125V 250V AC Axial Lead 6.35x30mm 6X30mm Quick Blow Fast Acting
Ceramic Subminiature Fuse

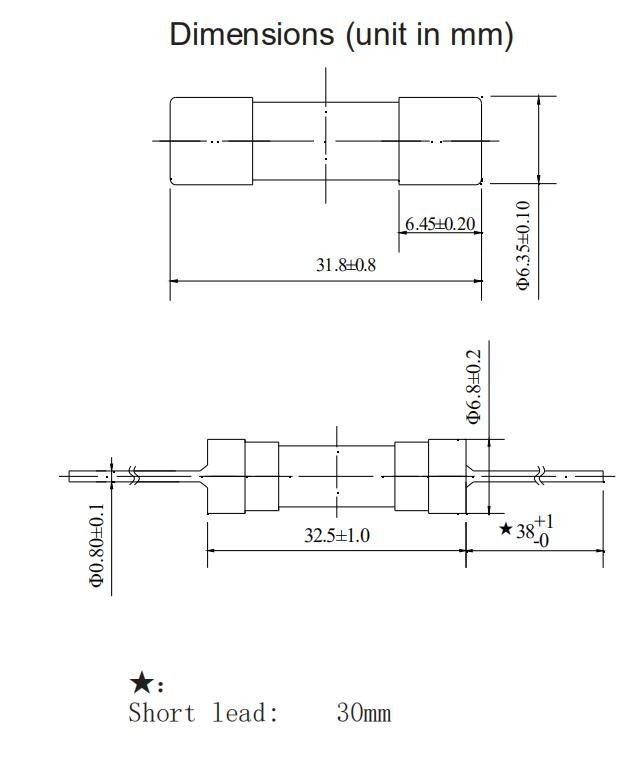

Series: 6x30mm tube fuse
Product Keywords: No.613/6*30mm fast-acting ceramic fuse
Rated current: 500mA-25A
Rated voltage: 125V/250V AC
Certification: cULus,cURus, PSE, CQC
Type: Fast-acting ceramic fuse
Lead wire: W, W/O
613 series is a fast-acting and low breaking capacity fuse, can be
used in AC voltage 250V, breaking capacity less than 200A
protection circuit.
613 Series fuses are suitable for use in electronic equipment and
equipment protection circuits
Time-current characteristics: fast fusing (F)
Cutting capacity: 10KA/125V AC ,35A/250V AC[500mA~1A]; 10KA/125V
AC,100A/250V AC[1.25A~3.15A]; 10KA/125V AC,200A/250V
AC[4A~10A];400A/125V AC,200A/250V AC[12A-20A];400A/125V
AC;100A/250V AC[25A]
Standard: UL 248-14
Accreditation: cULus,cURus, PSE, CQC
Material: shell - ceramic tube, metal cap - nickel - plated brass,
lead cap - nickel - plated cap, tin - plated copper wire
Operating temperature: -55℃ ~ +125℃
Solderability: 260℃≤5 seconds (wave soldering);350℃≤3 seconds
(manual welding)
Welding temperature bearing capacity: 260℃, 10 seconds;280℃, 5
seconds;
Storage condition: +10℃ ~ +60℃;The annual average relative humidity
is less than 75%, and the relative humidity reaches 95% for a
maximum of not more than 30 days
| Time VS Current Characteristics:UL248-14 GB/T9364.7 |
| Rated current | 100% | 135% | 200% | 275% | 400% | 1000% |
| 500mA- ~25A(UL) | >4h | <1h | <10s | / | / | / |
| 10A(GB) | >4h | / | <120s . | 50ms~10s | 8ms~1s | ≤100ms |
| Electrical Characteristics at 25 C |
| Amp | Rated Current | Max.Voltage | Nominal Melting I2t(A2sec) | Typical Cold Resistance (mΩ) | Breaking Capacity | Approvals |
| cULus | cURus | PSE | CQC |
| 0500 | 500 mA | 250V AC
125V AC | 0.49 | 430 | 10KA@125VAC
3 5A@250VAC | ● | ○ | ○ | ○ |
| 0630 | 630 mA | 0.81 | 310 | ● | ○ | ○ | ○ |
| 0800 | 800 mA | 1.21 | 192 | ● | ○ | ○ | ○ |
| 1100 | 1.00 A | 1.00 | 150 | 10KA@125VAC
100A@250VAC | ● | ○ | ○ | ○ |
| 1125 | 1.25A | 1.44 | 97 | ● | ○ | ○ | ○ |
| 1150 | 1.50 A | 2.10 | 93 | ● | ○ | ○ | ○ |
| 1200 | 2.00 A | 7.29 | 68 | ● | ○ | ○ | ○ |
| 1250 | 2.50 A | 11.2 | 47.3 | ● | ○ | ○ | ○ |
| 1300 | 3.00 A | 24.0 | 36.0 | ● | ○ | ○ | ○ |
| 1315 | 3.15A | 26.1 | 32.0 | ○ | ○ | ○ | ○ |
| 1400 | 4.00 A | 49.0 | 27.55 | 10KA@125VAC
200A@250VAC | ● | ○ | ○ | ○ |
| 1500 | 5.00 A | 81.0 | 18.8 | ● | ○ | ○ | ○ |
| 1600 | 8.00 A | 121 | 15.5 | ● | ○ | ○ | ○ |
| 1800 | 8.00 A | 219 | 11.5 | ● | ○ | ○ | ○ |
| 2100 | 10.00 A | 324 | 9.06 | ● | ● | ○ | ● |
| 2120 | 12.00 A | 729 | 6.94 | 400A@125VAC
200A@250VAC | ○ | ● | ○ | ○ |
| 2150 | 15.00 A | 1936 | 4.40 | ○ | ● | ○ | ○ |
| 2160 | 16.00 A | 2025 | 4.00 | ○ | ● | ○ | ○ |
| 2200 | 20.00 A | 3600 | 3.30 | ○ | ● | ● | ○ |
| 2250 | 25.00 A | 3844 | 2.92 | 400A@125VAC 100A@250VAC | ○ | ● | ○ | ○
|
Notes : 1. Permissible continuous operating current is ≤100% at
ambient temperature of 23°C (73.4°F)
2. The current values used for calculating I2T should be within the
standard range of 8ms ~ 10ms.
Series: 6X30mm tube fuse
Product Keywords: No.615/6*30mm fast acting ceramic fuse
Rated current: 500mA-10A
Voltage: 1000V Max
Certification: cURus
Type: Fast-acting ceramic fuse
Lead wire: W, W/O
615 series are high voltage and high breaking capacity fuses, which
can be used in protection circuits with AC voltage 660V and
breaking capacity less than 300A.
615 series fuses are used in telecommunication equipment protection
circuits.
Time-current characteristics: fast acting fusing (F)
Dividing ability: 300A@660Vac, on
Standard: UL 248-14
Certified by: cURus
Material: shell - ceramic tube, metal cap - nickel - plated brass,
lead cap - nickel - plated cap, tin - plated copper wire
Operating temperature: -55℃ ~ +125℃
Solderability: 260℃≤5 seconds (wave soldering);350℃≤3 seconds
(manual welding)
Welding temperature bearing capacity: 260℃, 10 seconds;280℃, 5
seconds;
Storage condition: +10℃ ~ +60℃;The annual average relative humidity
is less than 75%, and the relative humidity reaches 95% for a
maximum of not more than 30 days
| Time vs Current Characteristics: UL-248-14 |
| Rated Current | 100% | 135% | 200% |
| 500mA~10A | >4h | <1h | <10s |
| Electrical Characteristics |
| Amp Code | Rated Current | Max. Voltage | Nominal Melting I²t(A²sec) | Breaking Capacity | Approvals |
| cURus |
| 0500 | 500mA | 1000V AC | 0.084 | 100A@1000V AC
300A@660V AC
50-60Hz Cosφ=0.7-0.8 | ● |
| 0630 | 630mA | 0.133 | ● |
| 0800 | 800mA | 0.172 | ● |
| 1100 | 1.00A | 0.297 | ● |
| 1125 | 1.25A | 0.456 | ● |
| 1150 | 1.50A | 0.672 | ● |
| 1160 | 1.60A | 0.74 | ● |
| 1200 | 2.00A | 1.44 | ● |
| 1250 | 2.50A | 2.4 | ● |
| 1300 | 3.00A | 3.53 | ● |
| 1315 | 3.15A | 4.33 | ○ |
| 1350 | 3.50A | 4.57 | ○ |
| 1400 | 4.00A | 12.25 | ● |
| 1500 | 5.00A | 36 | ● |
| 1600 | 6.00A | 40.96 | ● |
| 1700 | 7.00A | 61.46 | ● |
| 1800 | 8.00A | 81 | ● |
| 2100 | 10.00A | 121 | ● |
Note: Permissible continuous operating current is ≤100% at ambient
temperature of 23°C (73.4°F)
Series: 6X30mm tube fuse
Product Keywords: No.619/6*30mm fast-acting ceramic fuse
Rated current: 15A-40A
Rated voltage: 150V DC 660V AC 500V AC
Certification: cURus
Type: Fast-acting ceramic fuse
Lead wire: W, W/O
619 series are high voltage and high breaking capacity fuses, which
can be used in protection circuits with AC voltage of 500/660V and
breaking capacity less than 800A.
619 Series fuses are used in telecommunication equipment protection
circuits.
Time-current characteristics: fast fusing (F)
Dividing ability: 200A@150VDC, SH AC, SH AC
Standard: UL 248-14
Certified by: cURus
Material: shell - ceramic tube, metal cap - nickel - plated brass,
lead cap - nickel - plated cap, tin - plated copper wire
Operating temperature: -55℃ ~ +125℃
Solderability: 260℃≤5 seconds (wave soldering);350℃≤3 seconds
(manual welding)
Welding temperature bearing capacity: 260℃, 10 seconds;280℃, 5
seconds;
Storage condition: +10℃ ~ +60℃;The annual average relative humidity
is less than 75%, and the relative humidity reaches 95% for a
maximum of not more than 30 days
| Electrical Characteristics at 25℃ |
| Amp Code | Ratede Current | Rated voltage | Typical Cold Resistance (mΩ) | Nominal Melting I²t(A²sec) | Breaking Capacity | Approvals |
| cURus |
| 2150 | 15.00A | 150V DC 660V AC 500V AC | 6.28 | 182.3 | 200A@150VDC
400A@660V AC
800A@500V AC | ● |
| 2200 | 20.00A | 4.32 | 672 | ● |
| 2250 | 25.00A | 3.02 | 2425 | ● |
| 2300 | 30.00A | 2.31 | 4185 | ● |
| 2350 | 35.00A | 2.05 | 5023 | ● |
| 2400 | 40.00A | 1.78 | 8000 | ● |
Note: The current values used for calculating I2T should be at
10In.
