Electrical Current Fuse 500mA to 25A Quick Blow Fast Action 6x30mm
Fast Acting Glass Tube Fuse
Series: 6x30mm tube fuse
Product Keywords: No.611/6*30mm fast-acting glass fuse
Rated current: 500mA-25A
Rated voltage: 125V 250V AC
Certification: cULus, cURus, PSE, CQC
Lead wire: W, W/O

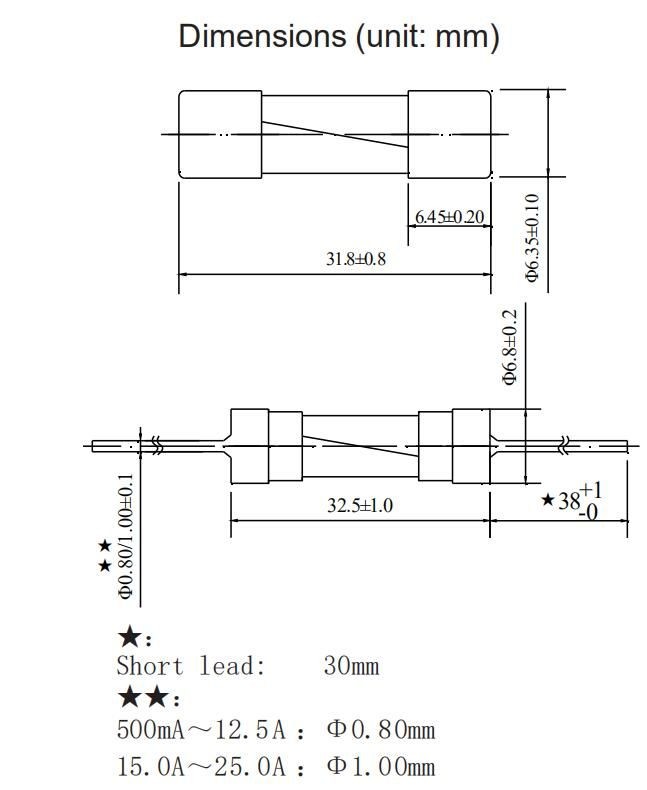

611 series is a fast breaking low breaking capacity fuse, can be
used in AC voltage 250V, breaking capacity less than 200A
protection circuit.
611 series fuses are suitable for use in electronic equipment and
equipment protection circuits.
Time-current characteristics: fast fusing (F)
Breaking ability:10kA@125Vac[500mA~800mA],35A@250Vac[500mA~800mA],
10kA@125Vac[1A~3A],100A@250Vac[1A~3A],10kA@125Vac[3.15A~20A],200A@250Vac[3.15A~20A],300A
@125Vac[25A]
Standard: UL 248-14
Accreditation: cULus, cURus, PSE, CQC
Material: shell - glass tube, metal cap - nickel - plated brass,
lead cap - nickel - plated cap, tin - plated copper wire
Operating temperature: -55℃ ~ +125℃
Solderability: 260℃≤5 seconds (wave soldering);350℃≤3 seconds
(manual welding)
Welding temperature bearing capacity: 260℃, 10 seconds;280℃, 5
seconds;
Storage condition: +10℃ ~ +60℃;The annual average relative humidity
is less than 75%, and the relative humidity reaches 95% for a
maximum of not more than 30 days
| Time VS Current Characteristics:UL248-14 J60127-2 GB/T9364.7 |
| Rated current | 100% | 110% | 135% | 200% | 275% | 400% | 1000% |
| 500mA- ~20A(UL) | >4h | / | <1h | <10s | / | / | / |
| 12.5A/16A(GB) | >4h | / | / | <60s . | 20ms~3s | 8ms~1s | ≤150ms |
| | 15A/20A/25A(PSE) | / | >1h | <1h | <120s | / | / | / |
| Electrical Characteristics at 25 C |
| Amp | Ratede Current | Max.Voltage | Nominal Melting I2t(A2sec) | Typical Cold Resistance (mΩ) | Breaking Capacity | Approvals |
| PSE | CQC | cULus | cURus |
| 0500 | 500 mA | 250V AC | 0.49 | 430 | 10KA@125VAC
3 5A@250VAC | ○ | ○ | ● | ○ |
| 0630 | 630 mA | | 0.81 | 310 | ○ | ○ | ○ | ○ |
| 0800 | 800 mA | | 1.21 | 192 | ○ | ○ | ○ | ○ |
| 1100 | 1.00 A | | 1.00 | 150 | 10KA@125VAC
100A@250VAC | ○ | ○ | ● | ○ |
| 1150 | 1.50 A | | 2.10 | 93 | ○ | ○ | ● | ○ |
| 1200 | 2.00 A | | 7.29 | 68 | ○ | ○ | ● | ○ |
| 1250 | 2.50 A | | 11.2 | 45 | ○ | ○ | ● | ○ |
1300 | 3.00 A | | 24.0 | 36 | ○ | ○ | ● | ○ |
| 1350 | 3.50 A | | 34.8 | 29 | 10KA@125VAC
200A@250VAC | ○ | ○ | ● | ○ |
| 1400 | 4.00 A | | 49.0 | 27.55 | ○ | ○ | ● | ○ |
| 1500 | 5.00 A | | 81.0 | 18.8 | ○ | ○ | ● | ○ |
| 1600 | 8.00 A | | 121 | 15.5 | ○ | ○ | ● | ○ |
| 1700 | 7.00 A | | 156 | 13.8 | ○ | ○ | ● | ○ |
| 1800 | 8.00 A | | 219 | 10.35 | ○ | ○ | ● | ○ |
| 2100 | 10.00 A | | 324 | 9.36 | ○ | ○ | ● | ○ |
| 2120 | 12.00 A | | 729 | 7.45 | ○ | ○ | ○ | ● |
| 2125 | 12.50 A | | 767 | 6.42 | ○ | ● | ○ | ● |
| 2150 | 15.00 A | | 1936 | 4.20 | ● | ○ | ○ | ● |
| 2160 | 16.00 A | | 2025 | 4.00 | ○ | ● | ○ | ● |
| 2200 | 20.00 A | | 3600 | 3.30 | ● | ○ | ○ | ● |
| 2250 | 25.00 A | 125V AC | 3844 | 2.92 | 300A@125VAC | ● | ○ | ○ | ○ |
Note: (1) Permissible continuous operating current is ≤100% at
ambient temperature of 23°C (73.4°F)
(2) The cURus and cULus certification by 125V and 250V; the CQC
certification by 250V; the PSE certification by 125V
(3)The current values used for calculating I2T should be within the
standard range of 8ms ~ 10ms.
