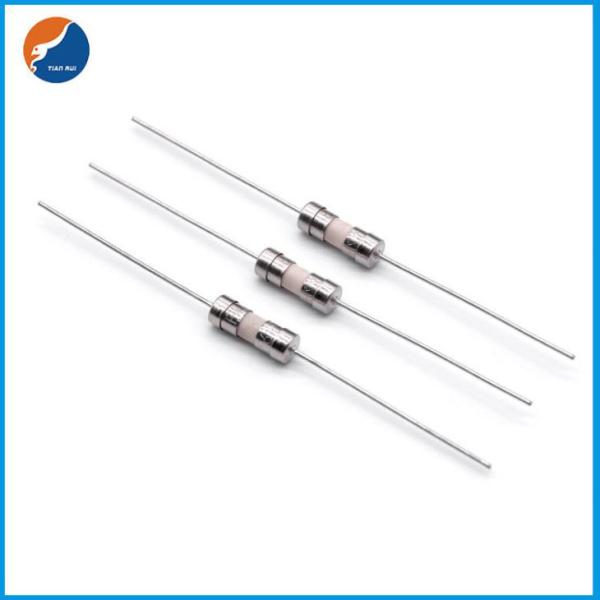

Current Fuse Fast Acting Quick Blow Ceramic 3.6x10mm Subminiature
Fuse with Legs
Series: 3x10mm tube fuse
Product Keywords: No.333/3*10mm quick blow ceramic 3.6x10mm fuse
Series 333 are fast-acting and low breaking capacity fuses,
suitable for AC voltage 250V, breaking capacity less than 63A
protection circuit.
333 series fuse is mainly used in lighting, power supply and power
adapter.
Time-current characteristics: fast fusing (F)
Fracturing capacity: 50A@125Vac[200mA~10A], 35A or 250mA~6.3A], Ang
[7A~10A]
Standard: IEC 60127-3/Ⅲ
Accreditation: CULUS, TUV
Material: shell - ceramic tube, metal cap - nickel - plated brass,
lead cap - nickel - plated cap, tin - plated copper wire
Operating temperature: -55℃ ~ +125℃
Solderability: 260℃≤5 seconds (wave soldering);350℃≤3 seconds
(manual welding)
Welding temperature bearing capacity: 260℃, 10 seconds;280℃, 5
seconds;
Storage condition: +10℃ ~ +60℃;The annual average relative humidity
is less than 75%, and the relative humidity reaches 95% for a
maximum of not more than 30 days
Storage Conditions
+10℃ to +60℃
Relative humidity:≤75% yearly average
Without dew, maximum 30 days at 95%
Vibration Resistance
24 cycles at 15 min. each (60068-6)
10-60Hz at 0.75mm amplitude
60-2000Hz at 10g acceleration
Soldering Parameters
260℃.≤5 sec (Wave Soldering)
350℃.≤3 sec (Hand Soldering)
Soldering Peak:
260℃. 10 sec. (IEC 60068-20)

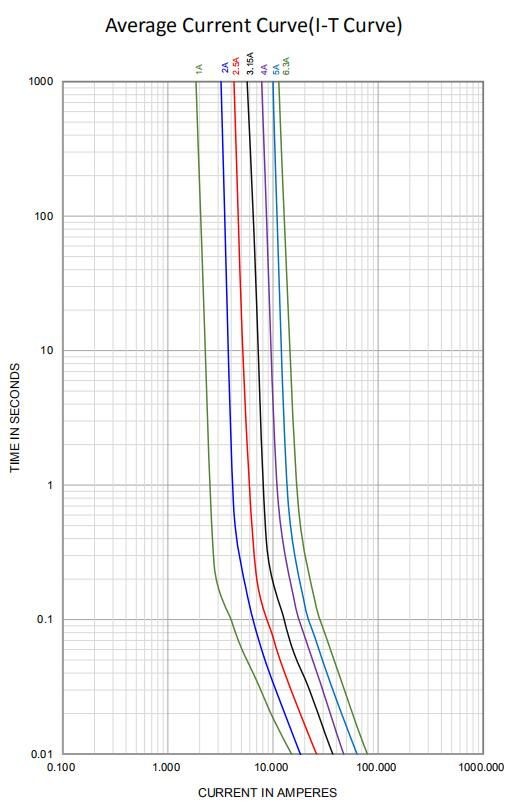

| Time vs Current Characteristics: IEC60127 -3/IV |
| Rated current | 150% | 210% | 275% | 400% | 1000% |
| 250mA~10A | >1h | <30min | 100ms~3s | 3ms~300ms | ≤20ms |
| Electrical Characteristics at 25C |
| AMP Code | Rated Current | Rated Voltage | Max Dissipation Drop(mV) | Max.Power Dissipation(mW) | Typical Cold Resistance (mΩ) | Nominal Melting It(A3sec) | Breaking Capacity | Approvals |
| cURus | TUV |
|
| 0315 | 315mA | 250 V AC | 400 | 331 | 201.0 | 0.152 |
50A/250V AC
50A/125V AC
35A or 10In/250V AC | ● | ○ |
| 0750 | 750mA | 250 V AC | 310 | 630 | 133.9 | 0.941 | ● | ○ |
| 1100 | 1.00A | 250 V AC | 280 | 375 | 63.8 | 2.25 | ● | ○ |
| 1150 | 1.50A | 250 V AC | 250 | 1050 | 36.7 | 2.77 | ● | ○ |
| 1200 | 2.00A | 250 V AC | 240 | 1260 | 25.2 | 3.20 | ● | ● |
| 1250 | 2.50A | 250 V AC | 200 | 1313 | 21.0 | 6.75 | ● | ○ |
| 1315 | 3.15A | 250 V AC | 180 | 1488 | 14.6 | 13.69 | ● | ○ |
| 1400 | 4.00A | 250 V AC | 160 | 1680 | 10.9 | 20.09 | ● | ○ |
| 1500 | 5.00A | 250 V AC | 150 | 1969 | 8.33 | 39.69 | ● | ○ |
| 1630 | 6.30A | 250 V AC | 150 | 1969 | 7.00 | 62.41 | ● | ● |
| 1800 | 8.00A | 250 V AC | 150 | 1969 | 5.80 | 92.16 | ● | ○ |
| 2100 | 10.00A | 250 V AC | 150 | 1969 | 4.73 | 156.3 | 50A/250V AC 50A/125V AC | ● | ○ |
