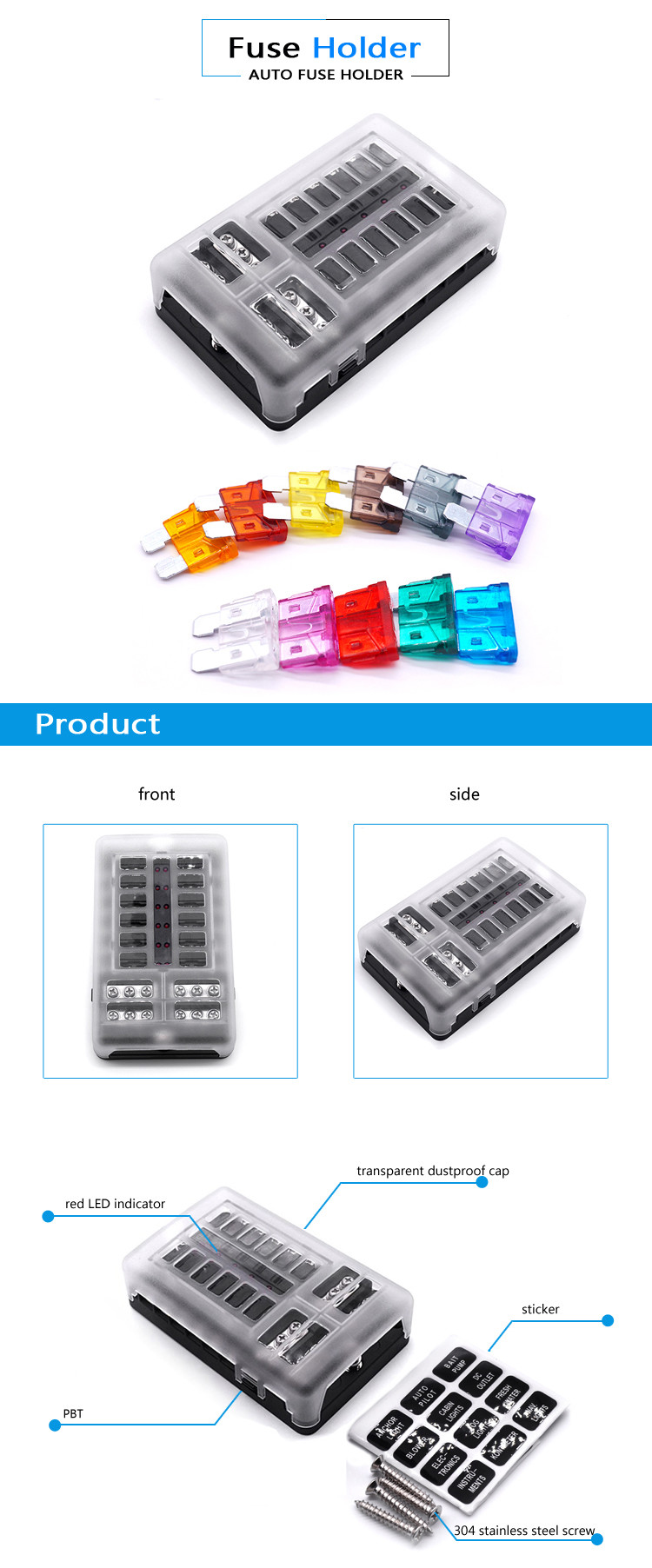

12 Circuit Ways Blade Fuse Box Positive Negative Bus Bar Fuse Block
Box Holder with LED Indicator Dust-proof Protection
♦Multi Way LED Blade Fuse Block With Screw Terminal
♦12 Ways LED Standard Blade Fuse Block With Positive and Negative
Pole
Specifications of 12 Ways LED Negative Blade Fuse Holder
[Product Name]
Positive and Negative Auto Blade Fuse Holder with LED Indicator[1
Input 12 Output ]
[Material]
PBT base, PC cover, Nickel-plated copper connection terminal, PPX70
sticker
[Indicator Function]
When the red LED light is on, it means the fuse has been
disconnected and it needs to be replaced in time to continue
running
[Application]
Can be installed in cars, villas, RVS, buses, yachts, boats, etc
[Usage]
It can be directly connected to the circuitry of any electrical
appliances used on the vehicle/ship [such as: roof lights,
headlights, view-width lights, fog lights, warning lights, on-board
refrigerators, on-board chargers, on-board fans, on-board
TELEVISIONS, etc.
[Accessories]
StickerX2; self-tapping screw X4; We also can supply fuse if needed.
Parameters
| Material | PBT Base+PC Cover |
| Main Wire | Input terminal rating: M5 thread studs(100A 32V DC.max), intput
wire size: #4-6AWG |
| Single Wire | Out put terminal rating :30A max per circuit, output wire
size:#12-16AWG |
| Net Weight | 279g |
| Gross Weight | 285g |
| Size | 138.25*85*36.5mm |
| Certificate | ROHS |
| Contact Terminal | Nickel Plated Copper |
| Operating Voltage | DC 32V |
| Rated Current | 30A Each Circuit |
| Fit For | Standard Blade Fuse |
| Temperature | 30℃-85℃ |
Product Advantages
[1] The product adopts PBT anti-flame retardant and high and low
temperature resistant environmental protection material, with good
mechanical strength, insulation, heat resistance and flammability.
[2] All busbars and fuse clips are nickel-copper plated, with
corrosion resistance and excellent electrical conductivity.
[3] All fasteners are stainless steel, and the input and output
ends of the fuse box are fixed with tightening screws, which can be
installed more quickly. Moreover, the fuse box is fixed with
self-tapping screws, which is simpler and safer to install.
[4] The product has a red LED indicator light design, which
corresponds to the electrical appliances connected with each fuse
piece. When the fuse is disconnected, the red light will go on and
you can immediately know which fuse is broken, which is convenient
for timely processing.
[5] Free stickers of products can be attached to the electrical
appliances we connect according to the name of the label on the
stickers. When the fuse breaks and the red light is on, we can
immediately identify which electrical appliance has a problem,
which saves time and effort.
Product Application
Each fuse in the fuse box can be connected to any electrical
circuit (such as: car dome light, car headlights, wide light fog
lights, alarm lights, car refrigerator, car charger, car
navigation, etc.), when the current is too high, the fuse will burn
itself out, thus playing a role in protecting the safe operation of
the circuit.
Drawing
