R3-54B 5X20mm Slotted Driver Type Screw Cap Panel Mount Fuse Holder

R3-54 Panel Mount Fuse Holder

For 5X20mm

Slotted Driver Type Screw Cap

Soldering Terminal

Current : 10A / 6.3A

Voltage : 125V AC / 250V AC

Certificate: ROHS UL

Strcture: Horizontal

Temperature: 200℃

Contact resistance: > 5 megahertz

Insulation resistance: > 100 megahertz

Standard: National Safety Standards

• Materal

Frame and cap: rylon (UL flame 94v-2).

Terminal: silver plated copper.

Mounted by nut

• Specification

• Electrical	Rated at 10A 250V AC
  Insulating Body	NYLON
  Konb	Screw-driver slot fuse extractor type with nickel-plated copper alloy insert. Spring loaded
  Terminals	Nickel-plated copper alloy
  	Right angle teminal,solder type
  	Straigth terminal

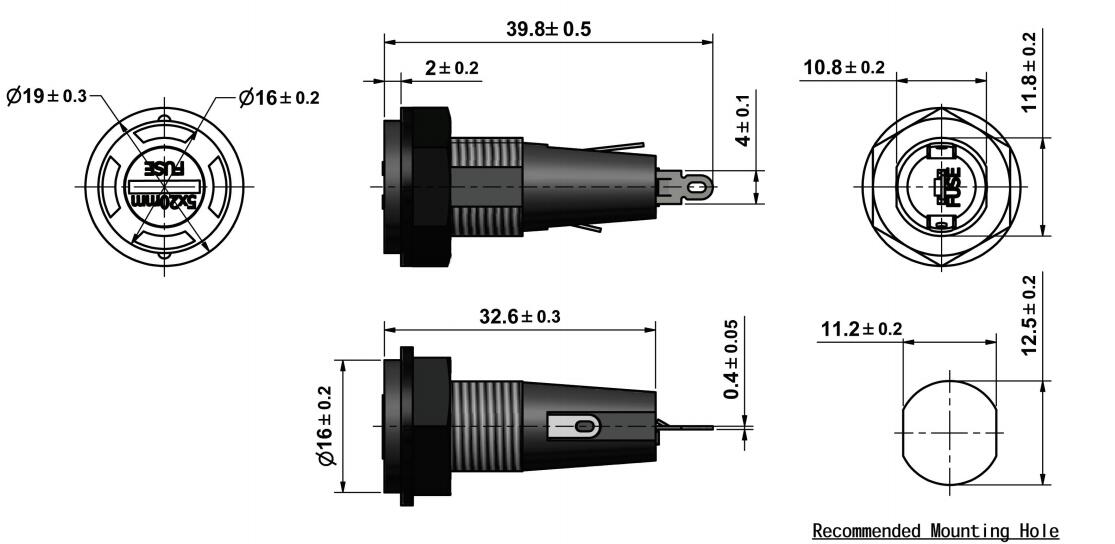

Drawing

Packing

Normal is pe bag+carton.
