32V DC CB 01 CB01 Manual Switch Reset Resettable Automotive Overload Protector Stereo Car Audio Circuit Breaker

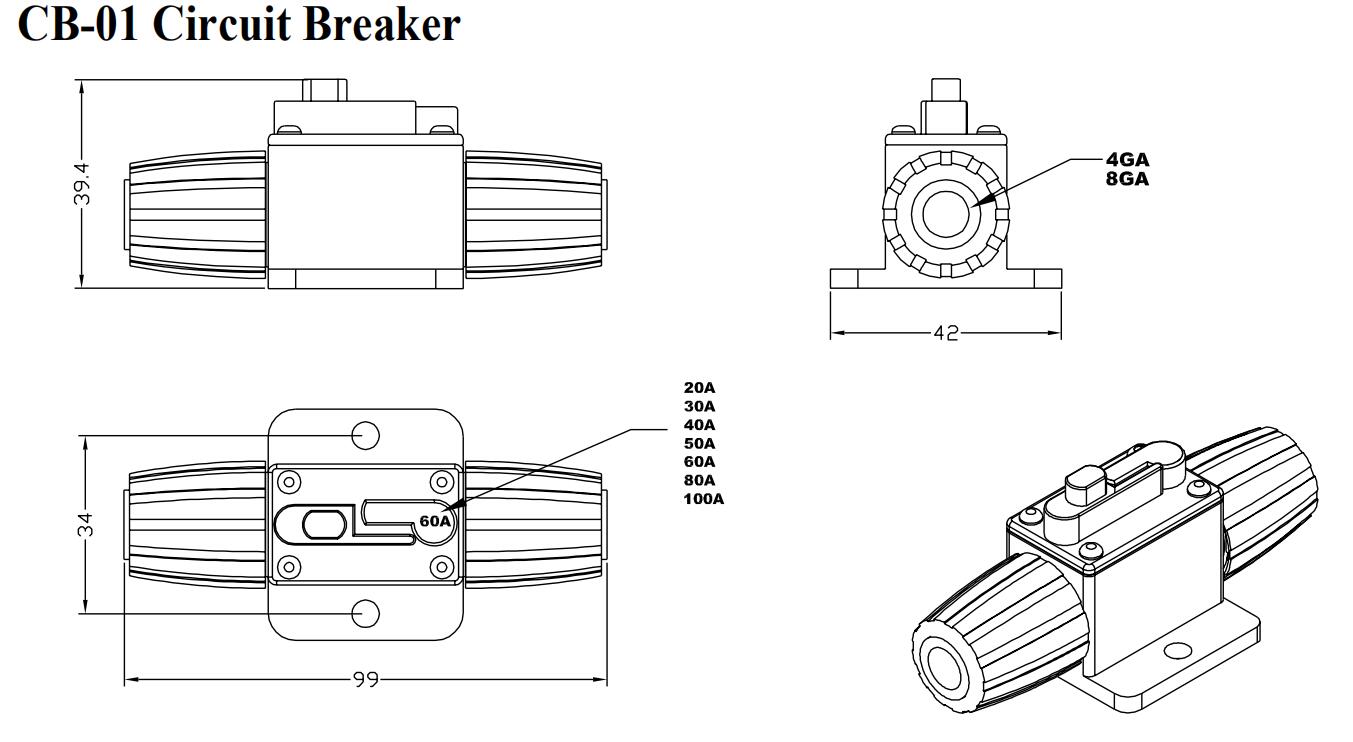

CB-01 Circuit Breaker

Technical Parameters

Rated current: 20A 30A 40A 50A 60A 70A 80A 100A

Rated current: 32V

Main material: PC

Hardware material: Zinc Alloy

Rivet: Brass

Working Way

1. Circuit break protection: When the current reaches the cut-off value, the long handle automatically bounces and cuts off the power supply. Generally, it trips in a short circuit condition. After the fault is eliminated, press the long handle back to the original position to form a path.

2. Manually cut off the power: We need to disconnect the circuit when refitting, and directly press the oval red button on the insurance. At this time, the long handle automatically pops up to cut off the power. Connect as above, then press the long handle back to its original position

Fusing Performance

Main Technical Parameters

Features

1.Brand new ,made with high quality parts.

2.Easy to use and durable.

3.Function: prevent excessive current, protect the electrical appliance.

4.Apply in connecting audio power line.

5.Use in place of an inline fuse holder.

6.Suitable for car audio/video system overload protection

7.Manual open circuit push button.

8.Self-Testing & Manual Override.

9.Easy to operate with manual reset arm .

10.No fuse change trouble.

11.Can be mounted on panel or firewall.

12.12 Volt - 30 Amp

13.Size: 98mm (L) x 43mm (W) x 35mm (H)

Application

Circuit breaker products are mainly used for mobile socket, plug, converter, ac/dc motors and winch machine, plastic crusher, electric cars, scooters, cars around the rain, car elevator, medical equipment, all kinds of electric cutting machine, stereo equipment, woodworking machinery, fitness equipment, paper shredders, electric cup (pot) and small generator sets and other products.Our products are exported to Europe, the United States and southeast Asia. The domestic market also mainly supports with foreign trade export enterprises.
