High AMP Ignition Protection Manual Reset Waterproof Auto Car
Overload Protector High Current Circuit Breaker
E9 Series Hi-Amp Circuit Breaker

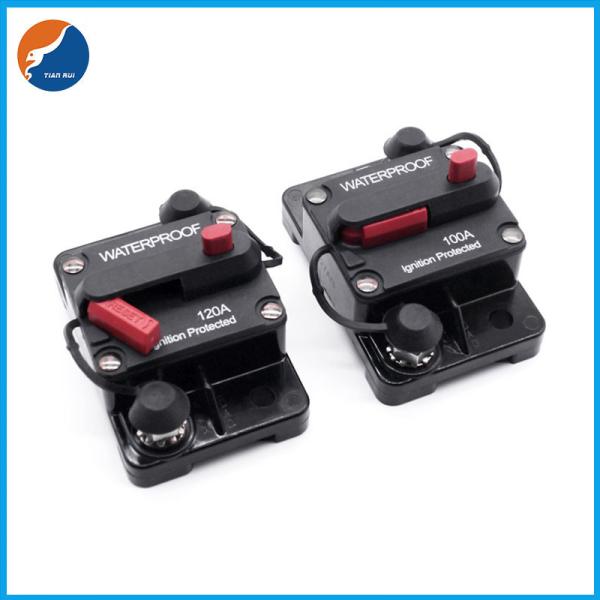

E99 Surface Mount Manual Reset Auto Circuit Breaker
Type: Manual Reset / Wide Surface Mount
Current: 20A-250A
Voltage: 48VDC
Auto Manual & Switchable Reset Circuit Breaker
Specifications
Single Pole Thermal Type Breakers
Typically used in auxiliary and accessory circuits in truck, bus’,
RVs and marine systems.
Others include battery chargers and DC audio systems.
compartment and bilge area applications.
25-250A, 30Vdc; 48Vdc
3000A @ 30Vdc
–25°F (–32°C) to 180°F (82°C)
–30°F (–34°C) to 300°F (149°C)
Black UL-rated 94V0 thermoset plastic. Thermoplastic elastomer stud
insulators are
provided on covered units with F-style (surface-mount) bases
Standard marking includes amp ratings and part numbers. Custom
markings also available.
1/4-28 or 3 8 16 threaded studs
50 in-lbs (5.6N•m) max
Panel or surface-mount options; 50 in-lbs (5.6N•m) max. Threaded
insert
option has a max torque of 25 in-lbs (2.8N•m).
Ip67
Series E95 E96 E98 E99 E92 E93have a unique reset mechanism which
provides visual indication
Series E96 E99 E93 also features a push-to-trip option
SAE J1625; ABYC E-11; CE; SAE J1171 (ignition protected)
Dimensions -mm (Dims. shown are for reference only. Consult factory
for latest prints)
Single Pole Thermal Type Circuit Breaker
Rating | 25-250A, 30Vdc; 48Vdc |
Interrupt Rating | 3000A @ 30Vdc |
Operating Temperature Rating | –25°F (–32°C) to 180°F (82°C) |
Storage Temperature Rating | –30°F (–34°C) to 300°F (149°C) |
Termination | 1/4-28 or 3 8 16 threaded studs |
Torque Rating | 50 in-lbs (5.6N•m) max |
Ingress Protection Rating | Ip67 |
Compliances | SAE J1625; ABYC E-11; CE; SAE J1171 (ignition protected) |
Part Numbering System
Series | Rating |
| E91- Type Ⅰ,30V | 025 -25 amps |
| E92- Type Ⅲ,48V | 030 -30 amps |
| E93- Type Ⅲ,48V | 035 -35 amps |
| E94- Type Ⅰ,30V | 040 -40 amps |
| E95- Type Ⅲ,48V | 050 -50 amps |
| E96- Type Ⅲ,48V | 060 -60 amps |
| E97- Type Ⅰ,30V | 070 -70 amps |
| E98- Type Ⅲ,48V | 080 -80 amps |
| E99- Type Ⅲ,48V | 090 -90 amps |
| 100 -100 amps |
| 110 -110 amps |
| 120 -120 amps |
| 130 -130 amps |
| 135 -135 amps |
| 140 -140 amps |
| 150 -150 amps |
| 175 -175 amps |
| 180 -180 amps |
| 200 -200 amps |
| 250 -250 amps (E91& E92 Only) |
| 300 -300 amps (E9 Only) |
