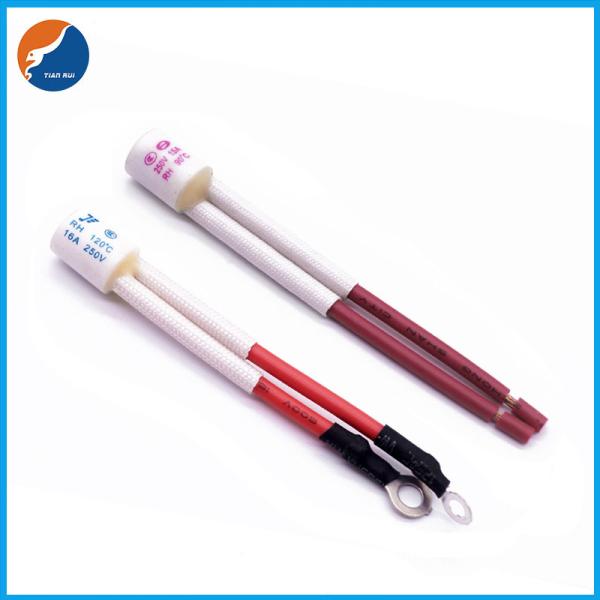

RH KG 15A 16A 25A 250V Electric Motor Heater Hot Water Faucet Ceramic Thermal Fuse

Description of Ceramic Thermal Fuse

1. This product is suitable for all kinds of hot water faucets, heating tubes, motors, transformers, electric heaters, electric heating appliances, etc.

2. When using contact temperature sensing installation, the product should be used to close the installation surface of the controlled appliance.
Remarks: Customers can choose shell and wire according to different needs.

Electrical Technical Parameters of Electric Motor Thermal Fuse

Rated electrical performance: AC250V/15A-25A
Disconnect temperature: 95℃～221℃ (according to customer needs)
Disconnect temperature tolerance: ±5℃
On-off temperature difference: 10～30℃
Temperature tolerance: ±15℃
Electric strength: AC1500V has no breakdown and flashover for 1 minute.
Insulation resistance: ≥100MΩ
Contact resistance: ≤50mΩ
Service life: more than 10,000 times

Key Features of Electric Heater Thermal Fuse

Ceramic Case

Lead Wire is Flame Retardant Insulated

Non-resettable

High Accuracy of Function Temp

RoHS & REACH Compliant

Applications of 15A 16A 25A 250V Ceramic Thermal Fuse

Electric Heating Apparatus

Home Electrical Appliances

Customization of Electric Hot Water Faucet Thermal Fuse

Other Temp. Can be Customize

The Length of Lead Wires Can be Customized as Required

Lead Wires Can Make a Pluggable Terminals

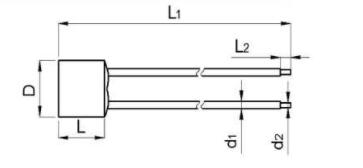

Dimension

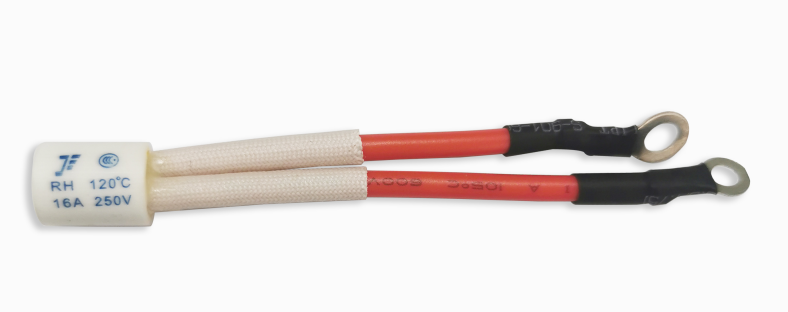

RH Theraml Fuse

KG Thermal Fuse

Detailed Description
1. The temperature sensing part is made of imported double gold belt, which has fast temperature sensing, quick movement and no arcing.
2. No current thermal effect design, accurate temperature and long life.
3. Large current, up to 250V 16A, automatic reset

Instructions for Use
1. This product is suitable for all kinds of hot water faucets, heating tubes, motors, transformers, electric heaters, electric heating appliances, etc.
2. When using contact temperature sensing installation, the product should be close to the installation surface of the controlled appliance.
Remarks: Customers can choose shell and wire according to different needs.

Electrical Technical Parameters
Rated electrical performance: AC250V/16A AC125V/20A
Disconnect temperature: 60℃～160℃ (according to user needs)
Disconnect temperature tolerance: ±5℃
On-off temperature difference: 10～30℃
Temperature tolerance: ±15℃
Electric strength: AC1500V has no breakdown and flashover for 1 minute.
Insulation resistance: ≥100MΩ
Contact resistance: ≤50mΩ
Size: φ10X26mm
Service life: more than 10,000 times.
