84C-156C Electric Motor Thermal Fuse 3A 5A 10A 15A 20A Radial Lead Square Type

A Series Radial Lead Square Type 3A 5A 10A 15A 20A 250V AUPO Electric Motor Thermal Fuse

Product Description

AUPO A-series thermal fuse is non-resettable thermal protection device with plastic casing.Which is sensitive to the ambient temperature, with accurate and stable operating temperature, small size and sealed structure.

A series includes: A-1A-F, A-F, A-3A-F, A-5A-F, A-10A-F, A-15A-F, A-20A-F.

Advantages

1. Confidential alloy formula technology to ensure stable operation and high precision.
2. Complete product quality management system to ensure high consistency and reliability.
3.Plastic case, good insulation, easy to install.
4. Epoxy resin package, good product sealing.

Working Principle

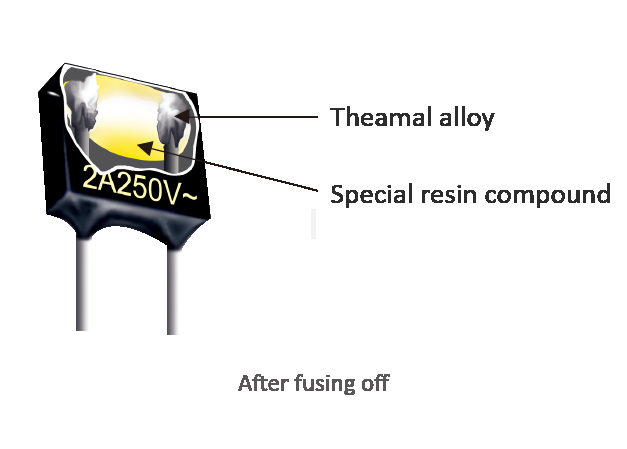

When ambient temperature rises to its operating temperature, the fusible alloy will melt and shrink into bulb on both sides of pin, with the help of surface tension and special resin, cut off the circuit permanently.

Application Field

A-series products are widely used for overheating protection of all kinds of transformer coils, as well as surge protection of various power supplies and plugs.

Product Certification

A-series products meet the safety test requirements of IEC 60691 Ed 4.0 and GB/T 9816.2013, and many models are certified with UL, VDE, CCC, PSE, KC, TUV and other safety approvals.

A-1A-F AUPO Thermal Fuse

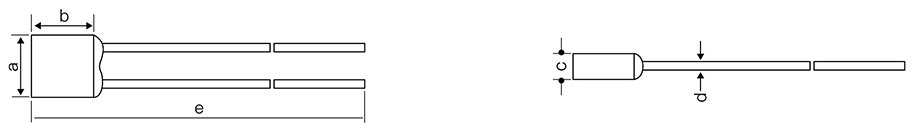

Model No	a	b	c	d	e
A-1A-F	5.2 ± 0.5	4.0 ± 0.5	2.3± 0.2	F0.54±0.05	70 ± 3

Model NO.	Tf(℃)	Fusing-off Temperature (℃)		Th(℃)	Tm(℃)	Ir(A)	Ur(V)
Model NO.	Tf(℃)	IEC	Corp	Th(℃)	Tm(℃)	Ir(A)	Ur(V)
A0-1A-F	84℃	84+0/-10	82±2	65	203	1	250
A1-1A-F	102℃	102+0/-10	98±2	80	203	1	250
A2-1A-F	115℃	115+0/-10	112±3	99	203	1	250
A3-1A-F	125℃	125+0/-10	120±3	105	203	1	250
A4-1A-F	130℃	130+0/-10	126±2	107	203	1	250
A5-1A-F	135℃	135+0/-10	131±3	115	203	1	250
A7-1A-F	138℃	138+0/-10	135±2	118	203	1	250
A12-1A-F	145℃	145+0/-10	140±2	126	203	1	250
A8-1A-F	150℃	150+0/-10	145±3	128	203	1	250
A16-1A-F	160℃	160+0/-10	155±2	140	203	1	250

A-F AUPO Thermal Fuse

Model No	a	b	c	d	e
A-F	6.2 ± 0.5	6.3 ± 0.5	2.5 ± 0.3	Φ0.54 ±0.05	70 ± 3

Model NO.	Tf(℃)	Fusing-off Temperature (℃)		Th(℃)	Tm(℃)	Ir(A)	Ur(V)
Model NO.	Tf(℃)	IEC	Corp	Th(℃)	Tm(℃)	Ir(A)	Ur(V)
A0-F	84℃	84+0/-10	82±2	65	203	2	250
A1-F	102℃	102+0/-10	98±2	80	203	2	250
A2-F	115℃	115+0/-10	112±3	99	203	2	250
A3-F	125℃	125+0/-10	120±3	105	203	2	250
A4-F	130℃	130+0/-10	126±2	107	203	2	250
A5-F	135℃	135+0/-10	131±3	115	203	2	250
A7-F	138℃	138+0/-10	135±2	118	203	2	250
A12-F	145℃	145+0/-10	140±2	126	203	2	250
A8-F	150℃	150+0/-10	145±3	128	203	2	250
A16-F	160℃	160+0/-10	155±2	140	203	2	250

A-3A-F AUPO Thermal Fuse

Model No	a	b	c	d	e
A-3A-F	6.2 ± 0.5	6.3 ± 0.5	2.5 ± 0.3	Φ0.6 ±0.02	70 ± 3

Model NO.	Tf(℃)	Fusing-off Temperature (℃)		Th(℃)	Tm(℃)	Ir(A)	Ur(V)
Model NO.	Tf(℃)	IEC	Corp	Th(℃)	Tm(℃)	Ir(A)	Ur(V)
A0-3A-F	84℃	84+0/-10	82±2	65	203	2	250
A1-3A-F	102℃	102+0/-10	98±2	80	203	2	250
A2-3A-F	115℃	115+0/-10	112±3	99	203	2	250
A3-3A-F	125℃	125+0/-10	120±3	105	203	2	250
A4-3A-F	130℃	130+0/-10	126±2	107	203	2	250
A5-3A-F	135℃	135+0/-10	131±3	115	203	2	250
A7-3A-F	138℃	138+0/-10	135±2	118	203	2	250
A12-3A-F	145℃	145+0/-10	140±2	126	203	2	250
A8-3A-F	150℃	150+0/-10	145±3	128	203	2	250
A16-3A-F	160℃	160+0/-10	155±2	140	203	2	250

A-5A-F AUPO Thermal Fuse

Model No	a	b	c	d	e
A-5A-F	6.6 ± 0.5	8.0 ± 0.5	2.6 ± 0.3	Φ0.6 ±0.02	70 ± 3

Model NO.	Tf(℃)	Fusing-off Temperature (℃)		Th(℃)	Tm(℃)	Ir(A)	Ur(V)	IN(KA)	Imax(KA)
Model NO.	Tf(℃)	IEC	Corp	Th(℃)	Tm(℃)	Ir(A)	Ur(V)	IN(KA)	Imax(KA)
A0-5A-F	84℃	84+0/-10	82±2	65	203	5	250	3	6
A1-5A-F	102℃	102+0/-10	98±2	80	203	5	250	3	6
A2-5A-F	115℃	115+0/-10	112±3	95	203	5	250	3	6
A3-5A-F	125℃	125+0/-10	120±3	105	203	5	250	3	6
A4-5A-F	130℃	130+0/-10	126±2	107	203	5	250	3	6
A5-5A-F	135℃	135+0/-10	131±3	115	203	5	250	3	6
A7-5A-F	138℃	138+0/-10	135±2	115	203	5	250	3	6
A12-5A-F	145℃	145+0/-10	140±2	126	203	5	250	3	6
A8-5A-F	150℃	150+0/-10	145±3	128	203	5	250	3	6
A16-5A-F	160℃	160+0/-10	155±2	135	203	5	250	3	6

A-10A-F AUPO Thermal Fuse

Model No	a	b	c	d	e
A-10A-F	8.3 ± 0.5	7.5 ± 0.5	3.4 ± 0.3	Φ1.0 ±0.02	45± 3

Model NO.	Tf(℃)	Fusing-off Temperature (℃)		Th(℃)	Tm(℃)	Ir(A)	Ur(V)	IN(KA)	Imax(KA)
Model NO.	Tf(℃)	IEC	Corp	Th(℃)	Tm(℃)	Ir(A)	Ur(V)	IN(KA)	Imax(KA)
A1-10A-F	102℃	102+0/-10	98±2	72	203	10	250	5	10
A2-10A-F	115℃	115+0/-10	112±3	85	203	10	250	5	10
A4-10A-F	130℃	130+0/-10	126±2	100	203	10	250	5	10
A5-10A-F	135℃	135+0/-10	132±3	106	203	10	250	5	10
A7-10A-F	138℃	138+0/-10	135±2	109	203	10	250	5	10

A-15A-F AUPO Thermal Fuse

Model No	a	b	c	d	e
A-15A-F	8.3 ± 0.5	7.5 ± 0.5	3.4 ± 0.3	Φ1.0 ±0.02	45± 3

Model NO.	Tf(℃)	Fusing-off Temperature (℃)		Th(℃)	Tm(℃)	Ir(A)	Ur(V)	IN(KA)	Imax(KA)
Model NO.	Tf(℃)	IEC	Corp	Th(℃)	Tm(℃)	Ir(A)	Ur(V)	IN(KA)	Imax(KA)
A1-15A-F	102℃	102+0/-10	98±2	72	203	10	250	5	10
A2-15A-F	115℃	115+0/-10	112±3	85	203	10	250	5	10
A4-15A-F	130℃	130+0/-10	126±2	100	203	10	250	5	10
A5-15A-F	135℃	135+0/-10	132±3	106	203	10	250	5	10
A7-15A-F	138℃	138+0/-10	135±2	109	203	10	250	5	10

A-20A-F AUPO Thermal Fuse

Model No	a	b	c	d	e
A-20A-F	10.8 ± 0.5	11.5 ± 0.5	4.8± 0.3	Φ1.6 ±0.02	45± 3

Model NO.	Tf(℃)	Fusing-off Temperature (℃)		Th(℃)	Tm(℃)	Ir(A)	Ur(V)	In(KA)	Imax(KA)
Model NO.	Tf(℃)	IEC	Corp	Th(℃)	Tm(℃)	Ir(A)	Ur(V)	In(KA)	Imax(KA)
A2-20A-F	115℃	115+0/-10	111±3	82	180	20	250	15	25
A4-20A-F	130℃	130+0/-10	126±2	97	180	20	250	15	25
A5-20A-F	135℃	135+0/-10	132±3	102	180	20	250	15	25
