AUPO 10A 15A 16A 250V Thermal Cutoff Fuses Non Resettable Metal Case

Ask Lasest Price
Brand Name :	TAMURA
Model Number :	BF Series
Certification :	ROHS
Price :	Negotiable
Payment Terms :	T/T, Paypal, Mastercard, Wetern Union, Alipay, etc
Supply Ability :	1000000PCS per Month
Delivery Time :	5-7 work days

Add to Cart

Product Details
Company Profile

AUPO 10A 15A 16A 250V Thermal Cutoff Fuses Non Resettable Metal Case

BF Series BF-I BFX RY AUPO 10A 15A 16A 250V Non Resettable Metal Case Thermal Protector Fuse

Product Description

AUPO BF series product is non-resettable pellet type thermal fuse which prevents electrical appliances from overheating. It has a metal case with pellet material inside and could be used in high current circuits.

BF Series includes: BF, BF-I, BFX, RY.

Advantages

1. Unique pellet formula technology to ensure stable operation and high precision.
2. Complete product quality management system to ensure high consistency and reliability of products.
3. Metal casing design, high sensitivity to temperature rise.
4. Applicable to overheating protection under 10A-16A circuit.

Working Principle

When ambient temperature rises to its operating temperature, the pellet will melt, and the spring a can be released to push the star contact that there is no contact with the pin, thus cutting off the circuit permanently.

Application Field

BF series products are widely used for overheating protection of household appliances, such as small household appliances, refrigerator, washers, kitchen and bathroom appliances; automotive appliances and office equipment,etc.

Product Certification

BF series products meet the safety test requirements of IEC 60691 Ed 4.0 and GB/T 9816.2013, and many models are certified with UL, VDE, CCC, PSE, KC and other safety approvals.

BF AUPO Thermal Fuse

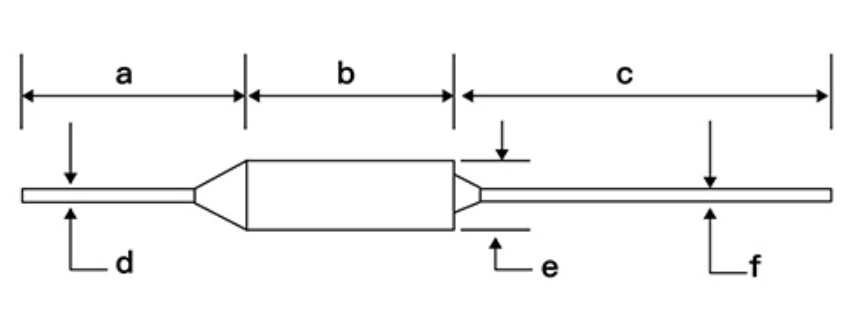

Model No	a	b	c	d	e	f
BF	20±1.0	11±1.0	35±1.0	Ф1.0±0.1	Ф4.0±0.1	Ф1.0±0.1

Model NO.	Tf (℃)	Fusing-off Temperature (℃)		Th (℃)	Tm(℃)	Ir(A)	Ur(V)
Model NO.	Tf (℃)	IEC	Corp	Th (℃)	Tm(℃)	Ir(A)	Ur(V)
BF73	73	73+0/-10	70±2	58	200	10	250
BF77	77	77+0/-10	74±2	62	300	10	250
BF84	84	84+0/-10	82±2	69	300	10	250
BF94	94	94+0/-10	90±2	79	300	10	250
BF99	99	99+0/-10	95±2	84	300	10	250
BF104	104	104+0/-10	101+2/-3	90	210	10	250
BF113	113	113+0/-10	110±2	98	400	10	250
BF117	117	117+0/-10	114±2	102	400	10	250
BF121	121	121+0/-10	118±2	106	400	10	250
BF133	133	133+0/-10	131+2/-3	119	400	10	250
BF142	142	142+0/-10	138+2/-3	127	400	10	250
BF157	157	157+0/-10	155±2	142	400	10	250
BF172	172	172+0/-10	169+2/-3	157	400	10	250
BF184	184	184+0/-10	181±2	169	400	10	250
BF192	192	192+0/-10	189±2	177	400	10	250
BF216	216	216+0/-10	212±2	191	450	10	250
BF229	229	229+0/-10	226±2	201	450	10	250
BF240	240	240+0/-10	235±3	201	450	10	250
BF257	257	257+0/-10	254±2	200	470	10	250

Model No.	UL/CUL	VDE	CCC	PSE	KTL
BF73	E140847	40005418	2003010205052188	JET0749-32001-1007	SU05017-11001
BF77				JET0749-32001-1007	SU05017-11001
BF84				JET0749-32001-1008	SU05017-11001
BF94				JET0749-32001-1008	SU05017-11001
BF99				JET0749-32001-1008	SU05017-11001
BF104				JET0749-32001-1009	SU05017-11002
BF113				JET0749-32001-1009	SU05017-11002
BF117				JET0749-32001-1009	SU05017-11002
BF121				JET0749-32001-1010	SU05017-11003
BF133				JET0749-32001-1010	SU05017-11003
BF142				JET0749-32001-1011	SU05017-11003
BF157				JET0749-32001-1011	SU05017-11003
BF172				JET0749-32001-1012	SU05017-11004
BF184				JET0749-32001-1013	SU05017-11004
BF192				JET0749-32001-1013	SU05017-11004
BF216				JET0749-32001-1014	SU05017-11005
BF240				JET0749-32001-1015	SU05017-11005
BF257		pending	pending	pending	pending

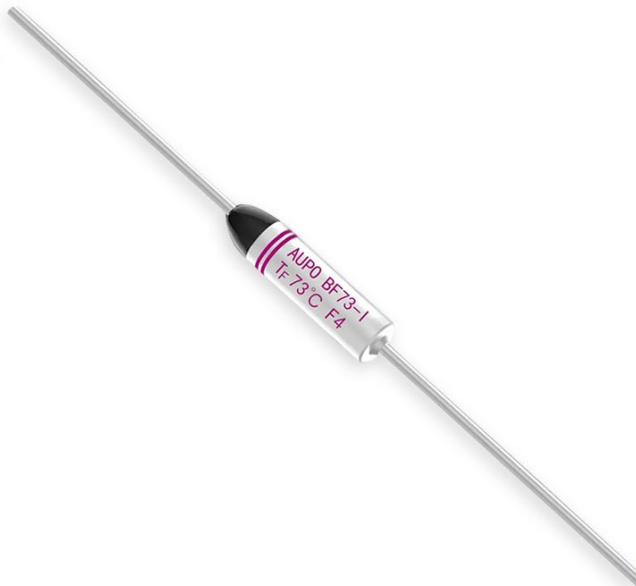

BF-I AUPO Thermal Fuse

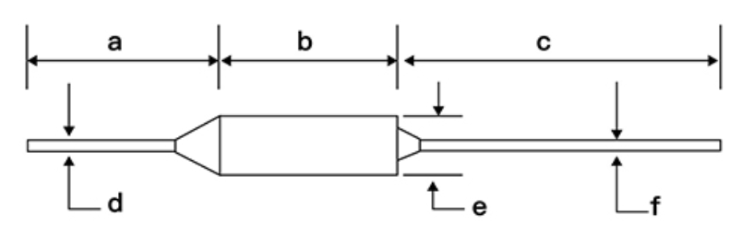

Model No	a	b	c	d	e	f
BF-I	20±1.0	11±1.0	35±1.0	Ф1.0±0.1	Ф4.0±0.1	Ф1.0±0.1

Model NO.	Tf(℃)	Fusing-off Temperature (℃)		Th (℃)	Tm(℃)	Ir(A)	Ur(V)
		IEC	Corp
BF73-I	73	63-73	70±2	58	200	15	125
						16
BF77-I	77	67-77	74±2	62	300	15	125
						16
BF84-I	84	74-84	82±2	69	300	15	125
						16
BF94-I	94	84-94	90±2	79	300	15	125
						16
BF99-I	99	89-99	95±2	84	300	15	125
						16
BF104-I	104	94-104	101+2/-3	90	210	15	125
						16
BF113-I	113	103-113	110±2	98	400	15	125
						16
BF117-I	117	107-117	114±2	102	400	15	125
						16
BF121-I	121	111-121	118±2	106	400	15	125
						16
BF133-I	133	123-133	131+2/-3	119	400	15	125
						16
BF142-I	142	132-142	138+2/-3	127	400	15	125
						16
BF157-I	157	147-157	155±2	142	400	15	125
						16
BF172-I	172	162-172	169+2/-3	157	400	15	125
						16
BF184-I	184	174-184	181±2	169	400	15	125
						16
BF192-I	192	182-192	189±2	177	400	15	125
						16
BF216-I	216	206-216	212±2	191	450	15	125
						16
BF229-I	229	219-229	226±2	201	450	15	125
						16
BF240-I	240	230-240	235±3	201	450	15	125
						16
BF257-I	257	247-257	254±2	200	470	15	125
						16

Model No.	UL/CUL	PSE
BF73-I	E140847	JET0749-32001-1007
BF77-I		JET0749-32001-1007
BF84-I		JET0749-32001-1008
BF94-I		JET0749-32001-1008
BF99-I		JET0749-32001-1008
BF104-I		JET0749-32001-1009
BF113-I		JET0749-32001-1009
BF117-I		JET0749-32001-1009
BF121-I		JET0749-32001-1010
BF133-I		JET0749-32001-1010
BF142-I		JET0749-32001-1011
BF157-I		JET0749-32001-1011
BF172-I		JET0749-32001-1012
BF184-I		JET0749-32001-1013
BF192-I		JET0749-32001-1013
BF216-I		JET0749-32001-1014
BF229-I		JET0749-32001-1015
BF240-I		JET0749-32001-1015
BF257-I		○
		○ pending

BFX AUPO Thermal Fuse

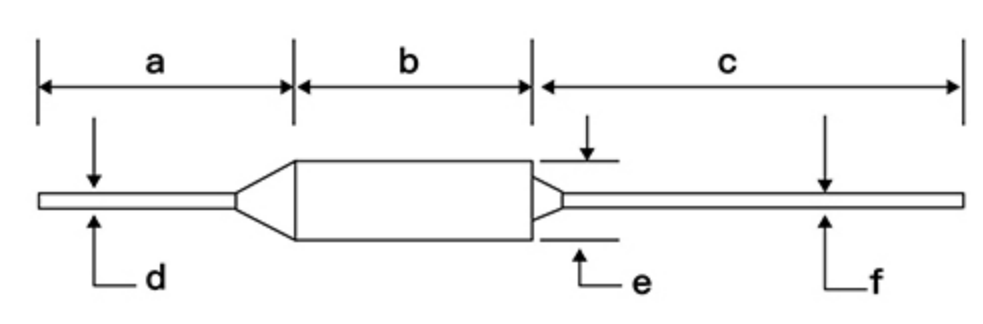

Model No	a	b	c	d	e	f
BFX	20±1.0	11±1.0	35±1.0	Ф1.0±0.1	Ф4.0±0.1	Ф1.0±0.1

Model NO.	Tf(℃)	Fusing-off Temperature(℃)		Th(℃)	Tm(℃)	Ir(A)	Ur(V)
Model NO.	Tf(℃)	IEC	Corp	Th(℃)	Tm(℃)	Ir(A)	Ur(V)
BF73X	73	73+0/-10	70±2	58	200	16	250
BF77X	77	77+0/-10	74±2	62	300	16	250
BF84X	84	84+0/-10	82±2	69	300	16	250
BF94X	94	94+0/-10	90±2	79	300	16	250
BF99X	99	99+0/-10	95±2	84	300	16	250
BF104X	104	104+0/-10	101+2/-3	90	210	16	250
BF113X	113	113+0/-10	110±2	98	400	16	250
BF117X	117	117+0/-10	114±2	102	400	16	250
BF121X	121	121+0/-10	118±2	106	400	16	250
BF133X	133	133+0/-10	131+2/-3	119	400	16	250
BF142X	142	142+0/-10	138+2/-3	127	400	16	250
BF157X	157	157+0/-10	155±2	142	400	16	250
BF172X	172	172+0/-10	169+2/-3	157	400	16	250
BF184X	184	184+0/-10	181±2	169	400	16	250
BF192X	192	192+0/-10	189±2	177	400	16	250
BF216X	216	216+0/-10	212±2	191	450	16	250
BF229X	229	229+0/-10	226±2	201	450	16	250
BF240X	240	240+0/-10	235±3	201	450	16	250
BF257X	257	257+0/-10	254±2	200	470	16	250

Model No.	UL/CUL	VDE	CCC
BF73X	E140847	40005418	2003010205052188
BF77X
BF84X
BF94X
BF99X
BF104X
BF113X
BF117X
BF121X
BF133X
BF142X
BF157X
BF172X
BF184X
BF192X
BF216X
BF229X
BF240X
BF257X		○	○
			○ pending

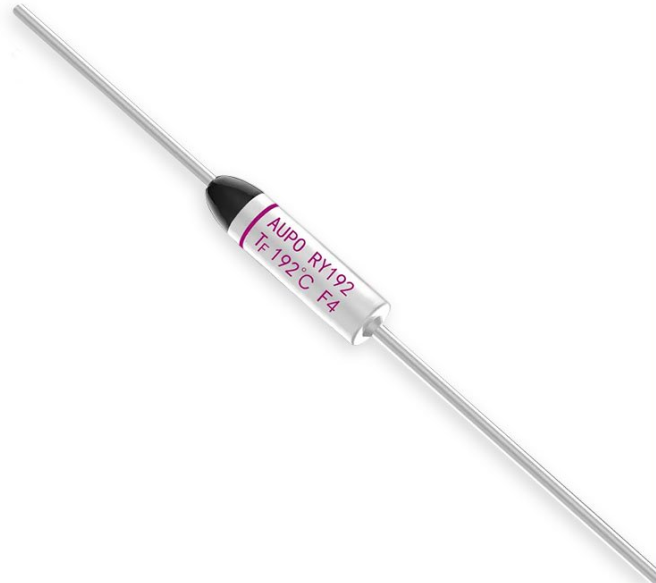

RY AUPO Thermal Fuse

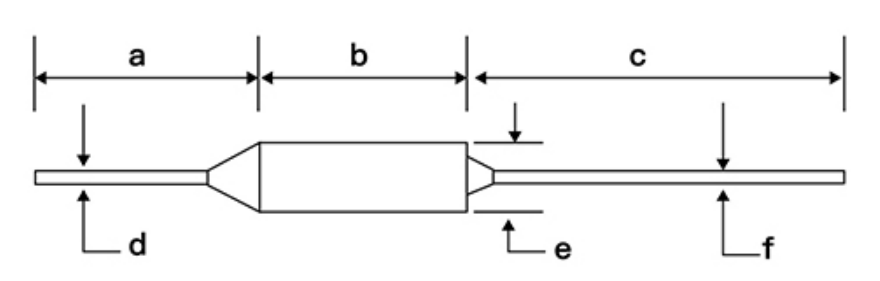

Model No	a	b	c	d	e	f
RY	20±1.0	11±1.0	35±1.0	Ф1.0±0.1	Ф4.0±0.1	Ф1.0±0.1

Model NO.	Tf(℃)	Fusing-offTemperature (℃)	Tm(℃)	Tm(℃)	Ir(A)	Ur(V)
RY73	73	73+0/-10	45	150	10	250
RY77	77	77+0/-10	51	150	10	250
RY84	84	84+0/-10	58	150	10	250
RY94	94	94+0/-10	66	150	10	250
RY99	99	99+0/-10	71	150	10	250
RY104	104	104+0/-10	79	150	10	250
RY113	113	113+0/-10	84	150	10	250
RY117	117	117+0/-10	92	160	10	250
RY121	121	121+0/-10	94	160	10	250
RY133	133	133+0/-10	104	160	10	250
RY142	142	142+0/-10	114	160	10	250
RY157	157	157+0/-10	127	172	10	250
RY172	172	172+0/-10	144	189	10	250
RY184	184	184+0/-10	159	210	10	250
RY192	192	192+0/-10	170	250	10	250
RY216	216	216+0/-10	191	280	10	250
RY229	229	229+0/-10	200	250	10	250
RY240	240	240+0/-10	200	300	10	250
RY257	257	257+0/-10	200	450	10	250

Model No.	VDE	CCC
RY73	40005418	2003010205052188
RY77
RY84
RY94
RY99
RY104
RY113
RY117
RY121
RY133
RY142
RY157
RY172
RY184
RY192
RY216
RY240
RY257	○	○
		○ pending
