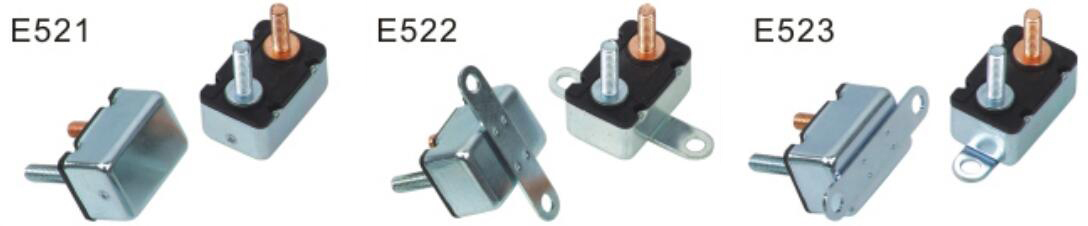

E521 E522 E523 28V DC Metal Case Stud Type Overload Protector
Modified Reset Bimetal Circuit Breaker
E521 E522 E523 Overload Protector Circuit Breaker
Modified Reset Circuit Breakers
Specifications
Single Pole Thermal Type Breakers
Applications: Typically used in Battery chargers, trucks, buses,
RV’s, trolling motors, etc.
Rating: 5-50A, 14VDC; 28VDC (Series E51, E53).
Interrupt Rating: Main Circuit Protection: 1.5kA @ 12VDC (Series
E51 E53 );
Branch Circuit Protection: 2.5kA @ 12VDC (Series E51 sealed &
Series E53 plastic cover).
Operating Temperature Rating: –40°F (–40°C) to 185°F (85°C)
Storage Temperature Rating: –40°F (–40°C) to 260°F (125°C)
Materials: Black UL-Rated thermoplastic body (thermoset for Type II
body & buttons). Cover is grey
thermoplastic or steel-Type l gold, Type ll silver
Marking: Standard marking includes amp ratings and part numbers.
Custom markings also available.
Termination: #10-32 thread and quick-connect options available
Torque Rating: 24 in-lbs (2 7N•m) max
Mounting Torque Rating: Plastic cover in-lbs (1 7N•m) . Metal cover
30 in-lbs (3 4N•m).
Ingress Protection Rating: IP66 On plastic cover version only
(except for terminals)
Compliances: SAE J553; SAE J1171 ((consult factory for Ignition
Protection ratings))
| Function Type | Thermal Trip-free,Cycling |
| Number of Poles | Single Pole , Normal Closed |
| Current &Voltage Ratings | 5-50A,12-28Vdc |
Calibration@25C | 100% Hold , 135% Trip (percent of rating) |
| Interrupting Capacity | Branch Circuit Protection: 2,500A @12Vdc |
| Termination | #10- 32 Thread and Quick-Connect options available |
Mounting | Stud Mount or Bracket Mount |
| Compliances | SAE J553;SAE J1171(Ignition Protected) |
