Plastic Case Cabinet Stud Bracket Mount 5A 10A 20A 30A 40A 50A Overload Protector Bimetal Automotive Circuit Breaker

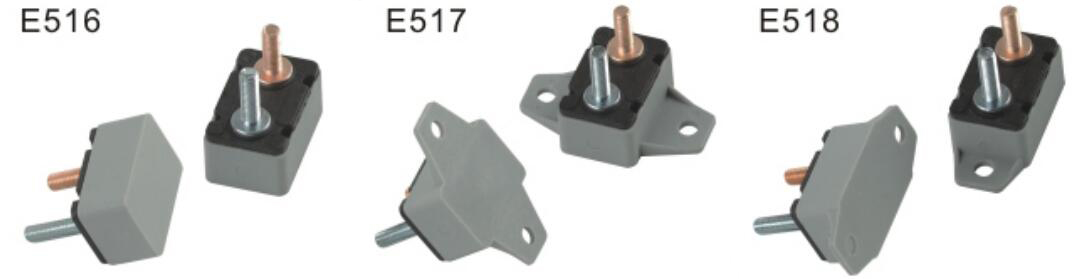

E516 E517 E518 Overload Protector Circuit Breaker

Automatic Reset Circuit Breakers

Specifications

Single Pole Thermal Type Breakers
Applications: Typically used in Battery chargers, trucks, buses, RV’s, trolling motors, etc.

Rating: 5-50A, 14VDC; 28VDC (Series E51, E53).
Interrupt Rating: Main Circuit Protection: 1.5kA @ 12VDC (Series E51 E53 );

Branch Circuit Protection: 2.5kA @ 12VDC (Series E51 sealed & Series E53 plastic cover).
Operating Temperature Rating: –40°F (–40°C) to 185°F (85°C)

Storage Temperature Rating: –40°F (–40°C) to 260°F (125°C)
Materials: Black UL-Rated thermoplastic body (thermoset for Type II body & buttons). Cover is grey
thermoplastic or steel-Type l gold, Type ll silver

Marking: Standard marking includes amp ratings and part numbers. Custom markings also available.
Termination: #10-32 thread and quick-connect options available

Torque Rating: 24 in-lbs (2 7N•m) max
Mounting Torque Rating: Plastic cover in-lbs (1 7N•m) . Metal cover 30 in-lbs (3 4N•m).

Ingress Protection Rating: IP66 On plastic cover version only (except for terminals)
Compliances: SAE J553; SAE J1171 ((consult factory for Ignition Protection ratings))

Advantages

Select a low amp or high amp thermal circuit breaker for your commercial applications, transportation equipment, marine, medical, and other power supplies:

1.Circuit breaker can do is protect the circuit from a high current short circuit.

2.Through its thermal trip it can protect the circuit from overload conditions.

A circuit breaker will trip if too large a draw or current flow occurs across a

thermal shunt inside.

3.Easy for mounting.

4.Trip-off time is customizing and adjustable according to customers' demands.

5.The design allows the thermal circuit breaker to be extremely cost-effective while

remaining durable and reliable.

Typical Applications

Power protected when circuit is overloaded / shorting by this overcurrent circuit breaker.

Used for:automotive,electromechanical equipment,Vehicle, marine, ATV,RV,off-road, special vehicles,yachts and ships, heavy-duty and truck applications,battery chargers etc
