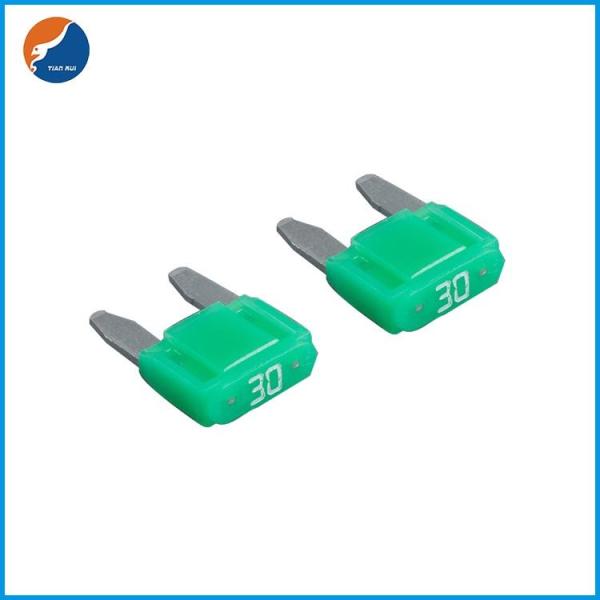

2A-30A 32V Littelfuse 297 Series 0297 ATN Automobile Automotive Car
Auto Mini Blade Fuse
MINI Blade Fuses Rated 32V
The MINI Fuse is the standard for vehicle circuit protection. Its
miniature design meets the need for more circuits to be protected
while utilizing less space, and its ability to cope with high
temperatures in adverse environments makes the MINI Fuse of
recommended choice for protection.
| Specification | MINI (Silver Plated) | MINI Sn (Tin Plated) |
| Interrupting Rating: | 1000A @ 32 VDC | 1000A @ 32 VDC |
| /oltage Rating: | 32 VDC | 32 VDC |
| *Component Level Temperature Range: | -40°C to +125°C | -40°C to +105°C |
| *System Level Temperature Range: | -40°C to +105*C | -40°C to +85*C |
| 105°C and 85°C are typical system level temperature requirements. |
| Terminals: | Ag plated zinc alloy | Sn plated zinc alloy |
| Housing Material: | PA66 | PA66 |
| Complies with: | SAE J2077, ISO 8820-3, | SAE J2077, ISO 8820-3 |
| UL 248 Special Purpose Fuses | not UL recognized |
Ordering Information
| Part Number | Package Size |
| 0297xxx. WXNV | 3000 |
| 02970xx.U | 500 |
| 0297x0x.H | 100 |
| 02970xx.L | 50 |
| MINIP Sn Fuse | |
| 0297xxx.WXT | 3000 |
Time-Current Characteristics
| % of Rating | Opening Time Min/ Max (s) |
| 110 | 360,000s/- |
| 135 | 0.75s/ 600 s |
| 200 | 0.15s/5s |
| 350 | 0.080s/0.500 S |
| 600 | 0.030s/0.100s |
| Part Number | Current Rating (A) | Housing Material Color | Typ. Voltage Drop (mV) | Cold Resistance (mΩ) | I2t(A2s) |
| 0297002._ | 2 | 0000 | 171 | 55.60 | 2.8 |
| 0297003._ | 3 | 0000 | 153 | 33.75 | 9.4 |
| 0297004._ | 4 | 0000 | 121 | 23.48 | 17 |
| 0297005._ | 5 | 0000 | 129 | 17.75 | 25 |
| 029707.5_ | 7.5 | 0000 | 135 | 10.85 | 68 |
| 0297010._ | 10 | 0000 | 108 | 7.42 | 93 |
| 0297015._ | 15 | 0000 | 98 | 4.58 | 270 |
| 0297020._ | 20 | 0000 | 96 | 3.21 | 380 |
| 0297025._ | 25 | 0000 | 86 | 2.36 | 625 |
| 0297030._ | 30 | 0000 | 87 | 1.85 | 1130 |

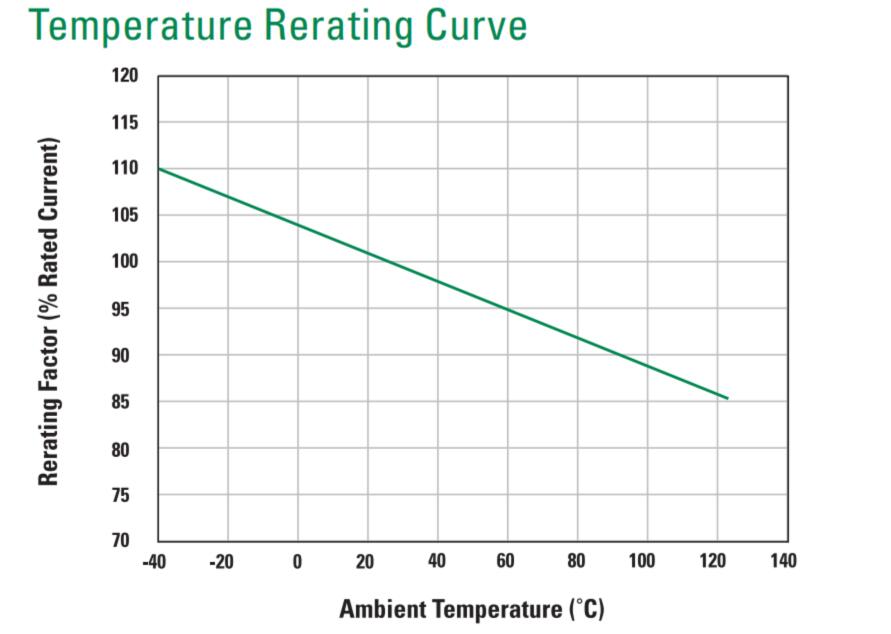

Time- Current Characteristic Curves
0297002.WXNV,0297003.WXNV,0297004.WXNV,0297005.WXNV,029707.5WXNV,0297010.WXNV,0297015.WXNV,
0297020.WXNV,0297025.WXNV,0297030.WXNV
0297002.WXNV-CN, 0297003.WXNV-CN, 0297004.WXNV-CN, 0297005.WXNV-CN,
029707.WXNV-CN, 0297010.WXNV-CN, 0297015.WXNV-CN, 0297020.WXNV-CN,
0297025.WXNV-CN, 0297030.WXNV-CN
0297002.U, 0297003.U, 0297004.U, 0297005.U, 029707.U, 0297010.U,
0297015.U, 0297020.U, 0297025.U, 0297030.U
0297002.H, 0297003.H, 0297004.H, 0297005.H, 029707.H, 0297010.H,
0297015.H, 0297020.H, 0297025.H, 0297030.H
0297002.L, 0297003.L, 0297004.L, 0297005.L, 029707.L, 0297010.L,
0297015.L, 0297020.L, 0297025.L, 0297030.L
0297002.WXT, 0297003.WXT, 0297004.WXT, 0297005.WXT, 029707.WXT,
0297010.WXT, 0297015.WXT, 0297020.WXT, 0297025.WXT, 0297030.WXT
