30A - 125A Automotive ANS Fuses MIDI Fuse DC 58V Bolt On M5 Screw Type

Ask Lasest Price
Brand Name :	Tian Rui
Model Number :	SBFW-L M5
Certification :	ROHS
Price :	Negotiable
Payment Terms :	D/P, T/T,Paypal, Western Union
Supply Ability :	1000000PCS/Month
Delivery Time :	5-7 Days

Add to Cart

Product Details
Company Profile

30A - 125A Automotive ANS Fuses MIDI Fuse DC 58V Bolt On M5 Screw Type

PEC Fuse 30A 40A 50A 60A 70A 80A 100A 125A SBFW-L M5 Screw Type DC 58V Bolt-on MIDI ANS Fuse

SBFW-L M5 Fuse

Rated voltage: below DC58V

Safe breaking capacity: 1000A

Operating temperature: -40°C~100°C

Specification: ISO8820-5

Production location: Japan

Plating: Tin plating

Number of containment: 2,000

Insertion force:-

Pulling out force:-

Suggested torque: 4. 5N+1.

Fusing Characteristics

%Rating current	Fusing time
%Rating current	Min	Max
100%	>100 h	----
110%	>4 h	----
150%	90 s	36000 s
200%	3 s	100 s
300%	0.3 s	3 s
500%	0.1 s	1 s

Fuse List

Rated(A)	Produce Model	Color	Siemens	Electric step-down
30	3139	0000	2.11 mΩ	86 mV
40	3149	0000	1.40 mΩ	77 mV
50	3159	0000	1.18 mΩ	73 mV
60	3169	0000	0.89 mΩ	71 mV
70	3179	0000	0.72 mΩ	66 mV
80	3189	0000	0.47 mΩ	51 mV
100	3107	0000	0.41 mΩ	58 mV
125	3117	0000	0.35 mΩ	59 mV

Dimension (Unit:mm)

CURRENT RARING		DIMENSION
		A	B	C	D
30A~8OA	M5 TYPE	8	4	0.4	5.4
100A~200A	M5 TYPE	8.24	4.24	0.64	5.4

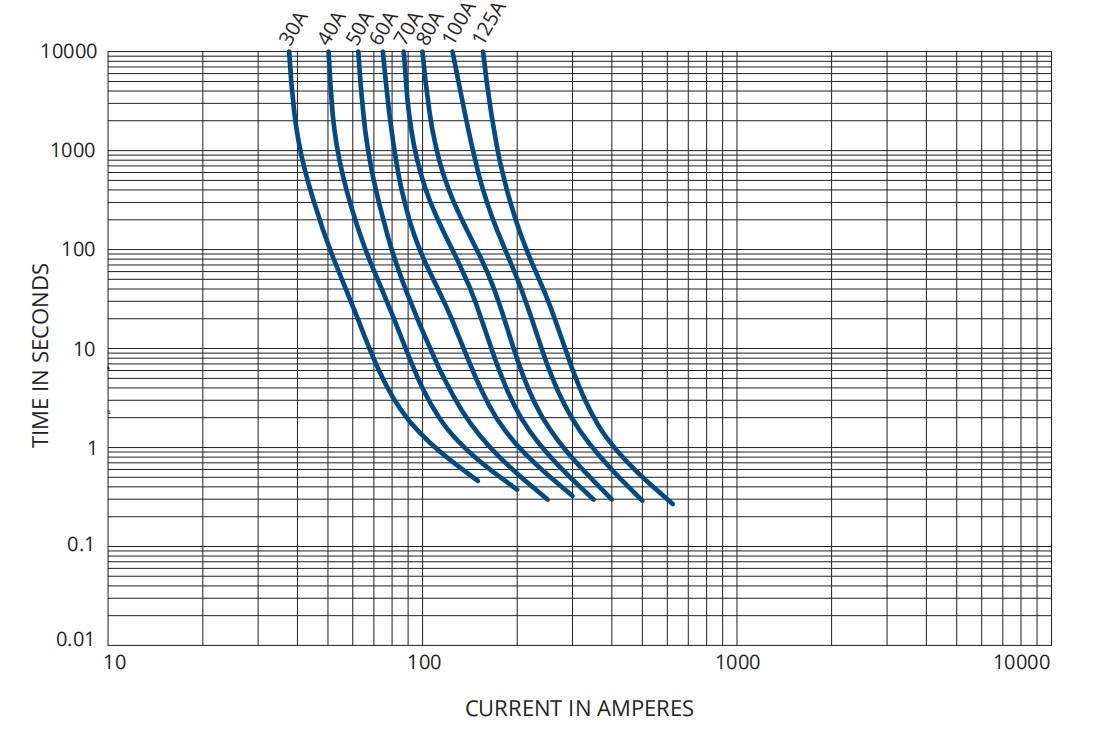

Time-Current Curve
