2A 3A 4A 5A 7.5A 10A 15A 20A 25A 30A Car Automotive Auto Mini MTA Blade Fuse 32V

MTA MINI Blade Fuse

Current: 2A 3A 4A 5A 7.5A 10A 15A 20A 25A 30A

Rated voltage: 32V DC

Ambient temperature: -40℃ to +125℃

Lower cover material: PC

Covering material: PSU

Terminal material: Zinc

Coating: Tin plated

Certification: LSo8820-3 (F type) REACH, RoHS
ISO 16750-3 Test lV

General Description

Ratings

*Calculated from breaking capacity test

*At ambient temperature = 23士1 °C

Dimension(Unit:mm)

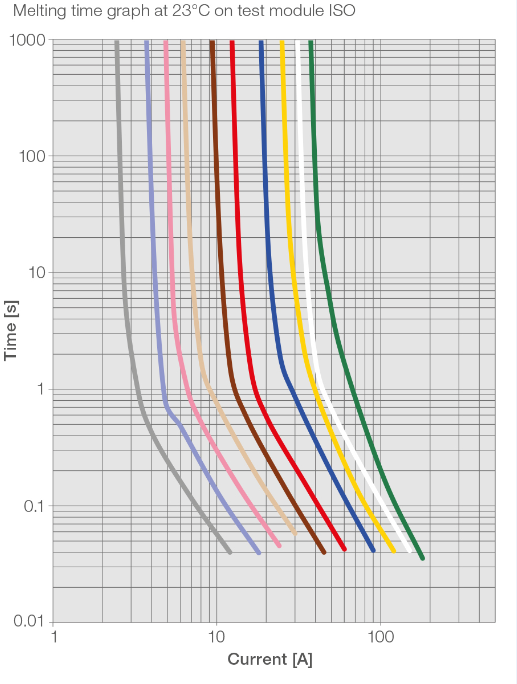

Melting Time and Curve

Operating time limits

*Less than ISO requirements (600 s)

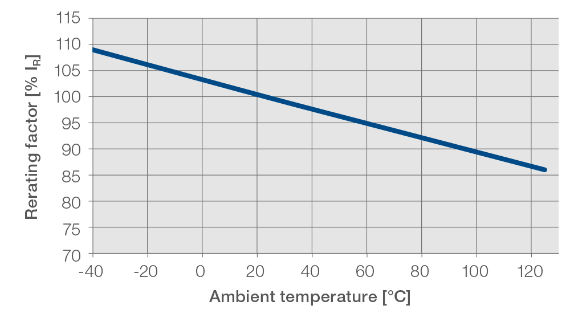

Rating Curve
