FLF FLF-S Square Jcase Auto Mini Female Tyle Slow Blow Automotive
Car Fuse Link

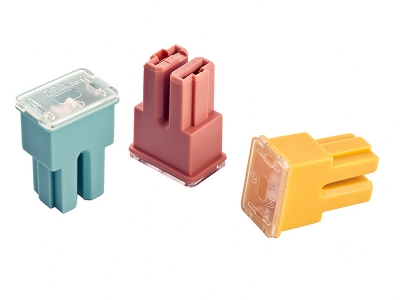

FLF FUSE LINK FEMALE TYPE
Slow-Blow
Current Rating: 20A-100A
Voltage Rating : DC32V or less
Interrupting Rating: 1000A @32VDC
Operating Temperature Range : -40℃ to +125℃
Complies with ISO 8820-4 / GB/T 31465.4
Materials :
1. Brass
2. Nylon With Glass Fiber / PC
3. Ceramic
Characteristics of fuses according to use conditions may change.

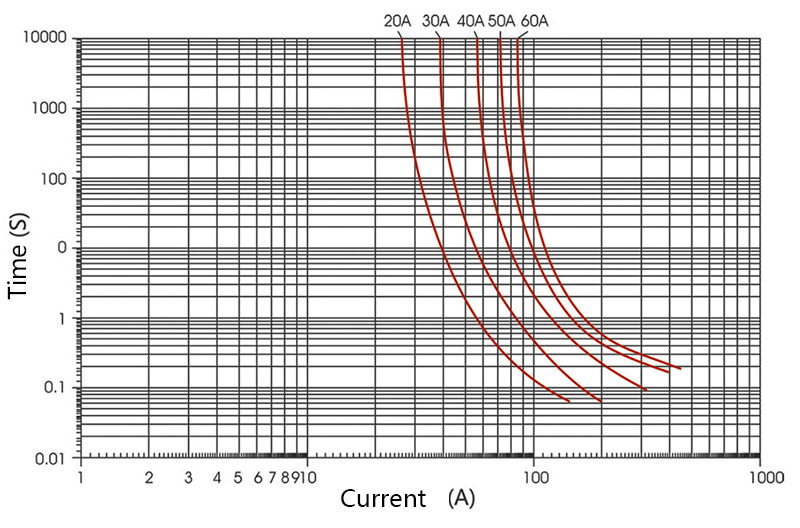

Time-Current Characteristics
| Test Current | Opening Time |
| Min. | Max. |
| 110% | 4 hrs. | ---- |
| 150% | 30 s | 3600 s |
| 200% | 5 s | 100 s |
| 350% | 0.2 s | 7 s |
| 600% | 0.04 s | 1 s |
| Item.No. | Ampere | Color |
| FLF-S 20 | 20 A | Blue |
| FLF-S 30 | 30 A | Orange |
| FLF-S 40 | 40 A | Green |
| FLF-S 50 | 50 A | Red |
| FLF-S 60 | 60 A | Yellow |
| FLF-S 70 | 70 A | Gray |
| FLF-S 80 | 80 A | Black |
| FLF-S 100 | 100 A | Dark blue |
FLF-S FUSE LINK FEMALE TYPE
Slow-Blow
Current Rating:20A to 60A
Voltage Rating : DC32V or less
Interrupting Rating: 1000A @32VDC
Operating Temperature Range : -40℃ to +125℃
Complies with JASO D612 / ISO 8820-4
Materials :
1. Brass
2. Nylon With Glass Fiber / PC
3. Ceramic
Characteristics of fuses according to use conditions may change.
Time-Current Characteristics
| Test Current | opening Time |
| Min. | Max. |
| 110% | 4 hrs. | ---- |
| 150% | 30 s | 3600 s |
| 200% | 5 s | 100 s |
| 350% | 0.2 s | 7 s |
| 600% | 0.04 s | 1 s |
| ltem No. | Ampere | Color |
| FLF-S20 | 20 A | 0000 |
| FLF-S30 | 30 A | 0000 |
| FLF-S 40 | 40 A | 0000 |
| FLF-S 50 | 50 A | 0000 |
| FLF-S 60 | 60A | 0000 |
